Asus Eee PC 4G Review (Page 6 of 7)

Page 6 - Onboard Sound (RMAA 6.06) Analyzation

Test Information:

Testing device: Realtek HD Audio output
Sampling mode: 16-bit, 44 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.0.6
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.6 dB / -0.1 dB
Mono mode: OFF
Calibration singal, Hz: 1000
Polarity: inverted/inverted

Frequency response

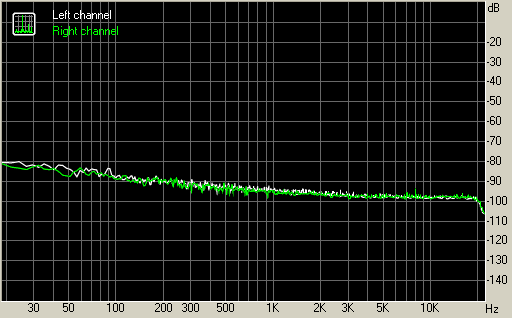

Noise level

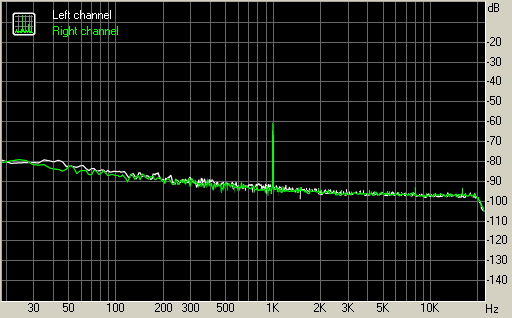

Dynamic range

THD + Noise (at -3 dB FS)

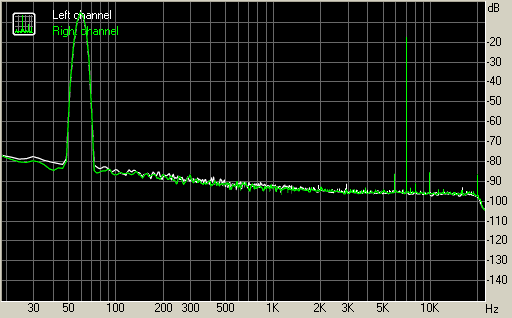

Intermodulation distortion

Stereo crosstalk

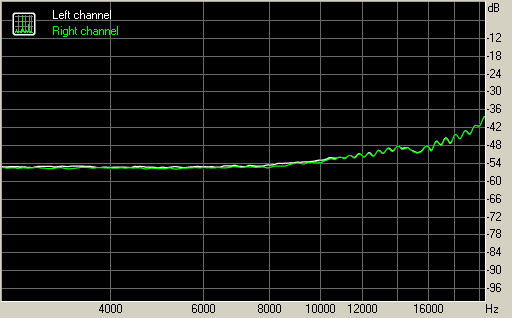

IMD (swept tones)

Test Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.25, -0.33 - Good
Noise level, dB (A): -64.4 - Poor
Dynamic range, dB (A): 64.3 - Poor
THD, %: 0.015 - Good
THD + Noise, dB (A): -58.0 - Poor
IMD + Noise, %: 0.178 - Average
Stereo crosstalk, dB: -62.0 - Average
IMD at 10 kHz, %: 0.234 - Average
General performance: Average
