Page 11 - Onboard Sound Frequency Analysis
Gigabyte has a great record of having very good performing integrated audio on their motherboards, and the GA-Z170X-UD5 is advertised to be no exception. It comes with a rear headphone amplifier, and comes with a dedicated audio zone electrically separated from the rest of the components to reduce noise. This mainstream performance model uses Realtek's ALC1150 audio codec. To see how it performs, we fired up RightMark Audio Analyzer for the answer, and here is the full report.
Test Information:
Testing device: Speakers (Realtek High Definition Audio)
Sampling mode: 16-bit, 44 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.4.1
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -1.3 dB / -1.1 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB, -1.44, +0.08; -1.27, +0.25
From 40 Hz to 15 kHz, dB: -0.06, +0.05; +0.11, +0.23

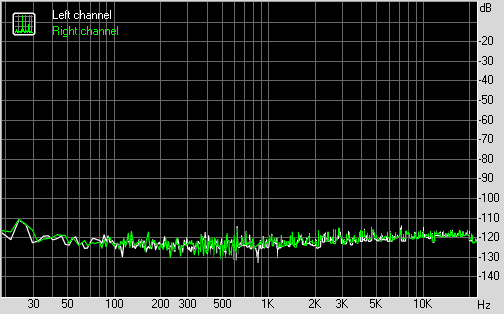

Noise level
RMS power, dB: -89.7, -89.2
RMS power (A-weighted), dB: -90.7, -90.3
Peak level, dB FS: -76.3, -76.1
DC offset, %: -0.0, -0.0

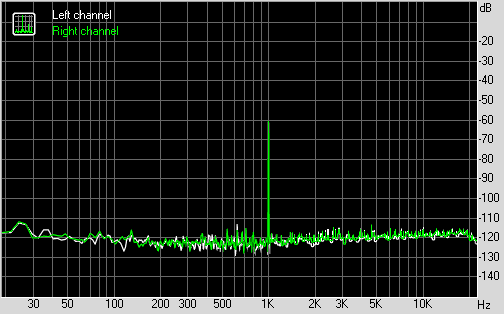

Dynamic range
Dynamic range, dB: +89.7, +89.2
Dynamic range (A-weighted), dB: +90.8, +90.3
DC offset, %: -0.00, -0.00

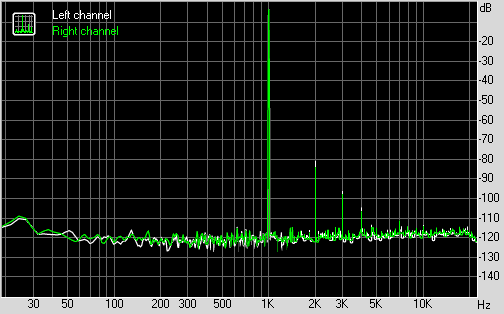

THD + Noise (at -3 dB FS)
THD, %: +0.0133, +0.0089
THD + Noise, %: +0.0149, +0.0112
THD + Noise (A-weighted), %: +0.0183, +0.0131
Intermodulation distortion
IMD + Noise, %: +0.0162, +0.0129
IMD + Noise (A-weighted), %: +0.0107, +0.0092
Stereo crosstalk
Crosstalk at 100 Hz, dB: -90, -94
Crosstalk at 1000 Hz, dB: -89, -89
Crosstalk at 10000 Hz, dB: -83, -86

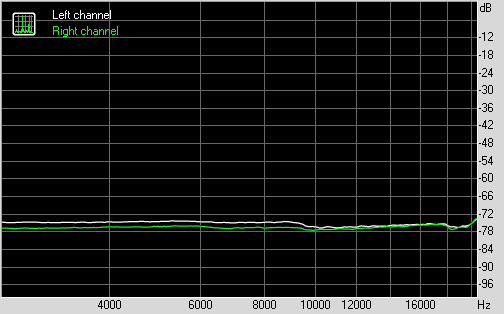

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0188, 0.0155
IMD + Noise at 10000 Hz: 0.0153, 0.0134
IMD + Noise at 15000 Hz: 0.0166, 0.0156
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.23, +0.11 - Excellent
Noise level, dB (A): -90.5 - Very good
Dynamic range, dB (A): 90.5 - Very good
THD, %: 0.011 - Good
THD + Noise, dB (A): -76.1 - Average
IMD + Noise, %: 0.015 - Very good
Stereo crosstalk, dB: -90.3 - Excellent
IMD at 10 kHz, %: 0.016 - Very good
General performance: Very good
