Jetway NF81-T56N-LF Review (Page 5 of 12)

Page 5 - Benchmark: AIDA64 FPU

About AIDA64 Extreme Edition

AIDA64 Extreme Edition is a streamlined Windows diagnostic and benchmarking software for home users. AIDA64 Extreme Edition provides a wide range of features to assist in overclocking, hardware error diagnosis, stress testing, and sensor monitoring. It has unique capabilities to assess the performance of the processor, system memory, and disk drives. AIDA64 is compatible with all current 32-bit and 64-bit Microsoft Windows operating systems, including Windows 7 and Windows Server 2008 R2.

AIDA64 implements a set of 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Processor benchmarks utilize MMX, 3DNow! and SSE instructions, and scale up to 32 processor cores. For legacy processors all benchmarks are available in 32-bit version as well. AIDA64 Disk Benchmark determines the data transfer speed of hard disk drives, solid-state drives, optical drives, and flash memory based devices.

From: Developer's Page

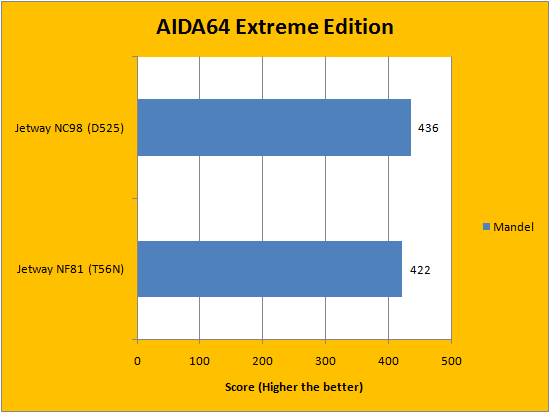

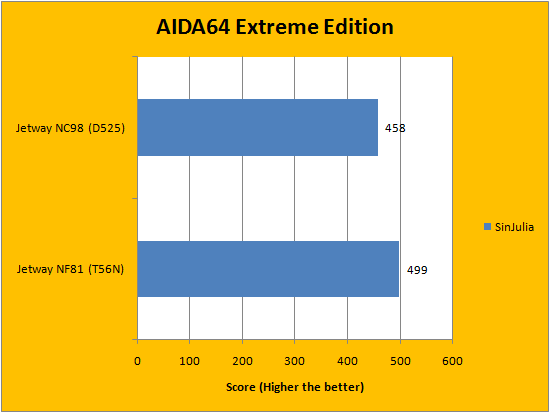

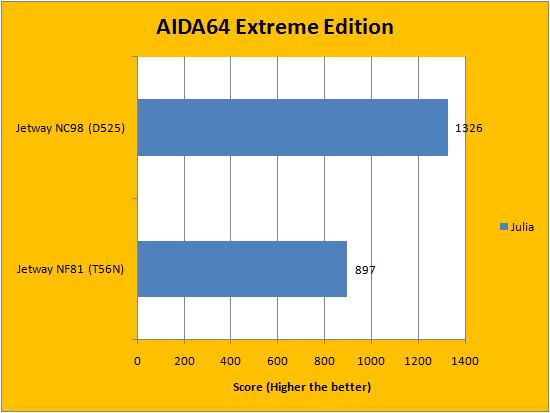

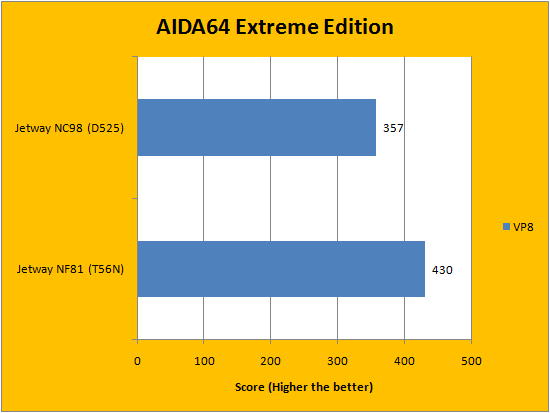

In terms of the FPU benchmarks, we find a more even split of the results. The eOntario on the Jetway NF81-T56N-LF takes the VP8 and SinJulia tests, while the Atom wins the Julia and Mandel tests. The biggest gap is found in the Julia test. This is again due to the availability of Hyper-Threading with the D525. These results should be taken lightly, as they are only synthetic benchmarks and do not always represent the real world performance of the motherboards. At this point it is safe to say that for most multithreaded tasks, the Atom still holds an advantage thanks to Hyper-Threading.
