Page 6 - Benchmark: AIDA64 Memory
About AIDA64 Extreme Edition
AIDA64 Extreme Edition is a streamlined Windows diagnostic and benchmarking software for home users. AIDA64 Extreme Edition provides a wide range of features to assist in overclocking, hardware error diagnosis, stress testing, and sensor monitoring. It has unique capabilities to assess the performance of the processor, system memory, and disk drives. AIDA64 is compatible with all current 32-bit and 64-bit Microsoft Windows operating systems, including Windows 7 and Windows Server 2008 R2.
AIDA64 implements a set of 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Processor benchmarks utilize MMX, 3DNow! and SSE instructions, and scale up to 32 processor cores. For legacy processors all benchmarks are available in 32-bit version as well. AIDA64 Disk Benchmark determines the data transfer speed of hard disk drives, solid-state drives, optical drives, and flash memory based devices.
From: Developer's Page

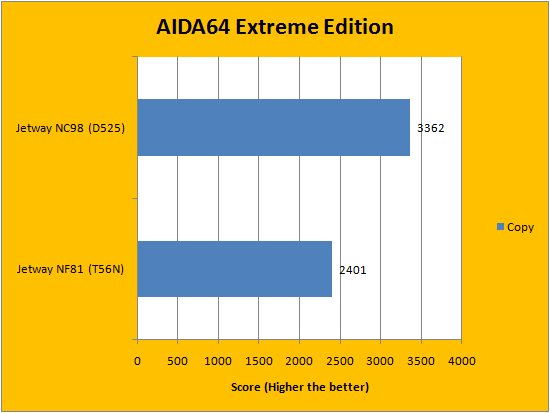

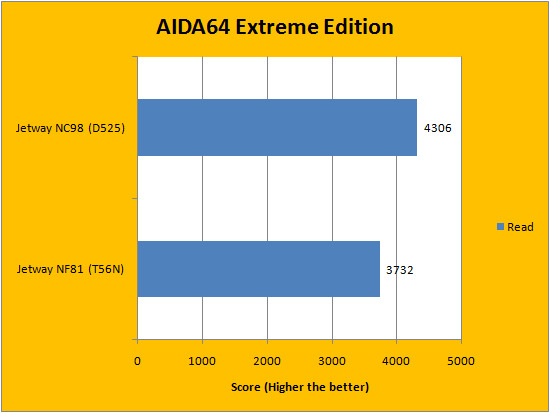

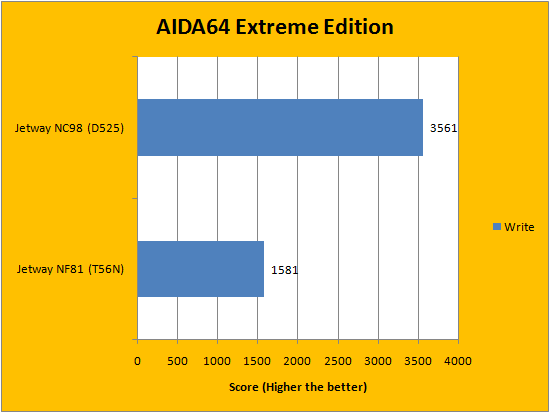

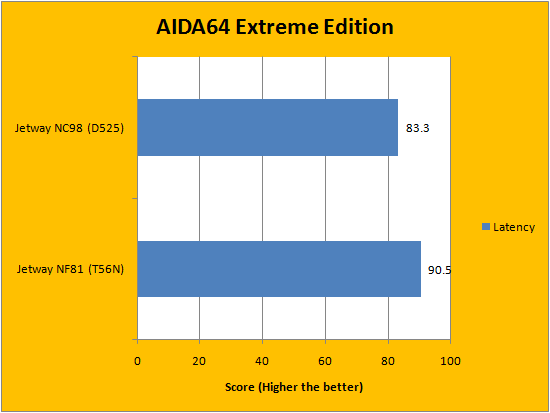

Generally, the AIDA64 memory tests were uniform to what we expected. The biggest difference was in the write test where the Jetway NC98 had more than doubled the performance of the Jetway NF81. It is important to note that the AMD based NF81 uses DDR3 memory, whereas the Intel based NC98 runs on standard DDR2 desktop memory. The difference is probably due to memory controller design. However, these results may be a bit misleading, since in real world usage, the performance difference should not be as noticeable as the synthetic benchmark scores suggest.
