Kingston HyperX 120GB Upgrade Kit Review (Page 4 of 10)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

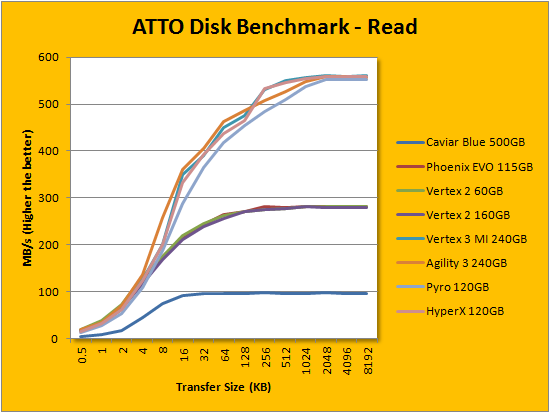

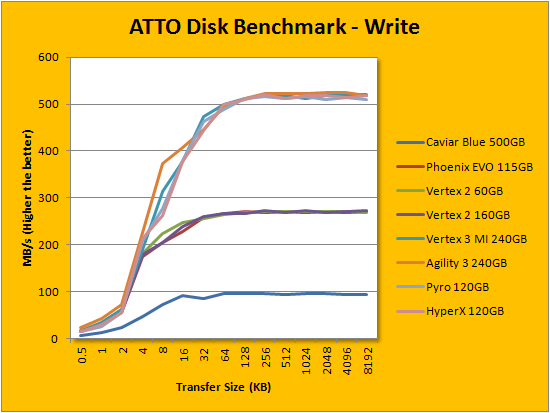

Following up next is our usual ATTO read and write tests. ATTO is an often quoted benchmark because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I've grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so SandForce based SSDs will perform very well here. As manufacturer peak read and write performance ratings are usually done in ATTO as well, whether a drive lives up to its marketing claims or not can be validated by this program. Kingston claims the HyperX 120GB's maximum read is 555MB/s, whereas its maximum write is pinned at 515MB/s. According to our tests, it is underrated by 5MB/s on both -- however, this does not tell the entire story. While the Kingston HyperX 120GB did meet and exceed marketing claims at its absolute maximum in our results, its performance is a little slower than the compared 240GB drives. Usually, 240GB drives perform better than 120GB drives, despite the fact they are rated to be identical by the manufacturer. On the other hand, it is actually slightly faster than the Patriot counterpart across the curve.
