Page 9 - Overclocking Results and Conclusion

At those particular FSB and divider settings, our test platform didn't benefit all that much from faster memory as observed in our benchmark results -- but there's one thing that really sets different RAM modules apart -- overclocking. After all, quality RAM are consistent in performance with each other, often within a couple percent -- this set of OCZ RAM is no exception. But not all memory is created with equal overclocking potential. Let's see what we can do with the Micron D9GTS based OCZ ReaperX HPC PC3-10666 RAM.

I can't do much with 6-5-5 latencies, so I loosened the latencies to a reasonable 7-7-7 setting, and used the voltage to the upper limit of what's covered under warranty of 1.9V. The maximum overclock I was able to attain was DDR3-1580 stably, which is a very decent 18.5% overclock under warranty and decent latencies. It's not DDR3-1600, but it's pretty darn close.

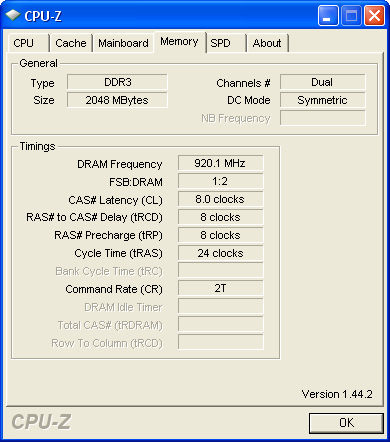

Let's see what's the maximum overclock I was able to achieve. At +0.50V over stock (2.0V), it voids the warranty, but for the purpose of testing, let's do it! Loosened to very relaxed latencies at 8-8-8-24 2T command rate, we were able to achieve an impressive DDR3-1840 stable. That's an impressive 507MHz effective over stock for an 38% overclock. Let me say that once more -- yes, that is no doubt impressive.

Special thanks to Andy over at OCZ for making this review possible.

APH Recommended Award
Starting from April 30, 2007, Number Ratings has been dropped for motherboards, RAM, and graphics cards. This is to ensure the most appropriate ratings reflected without the limits of using numbers. Everything else will continue using the Number Rating System.
More information in our Review Focus.

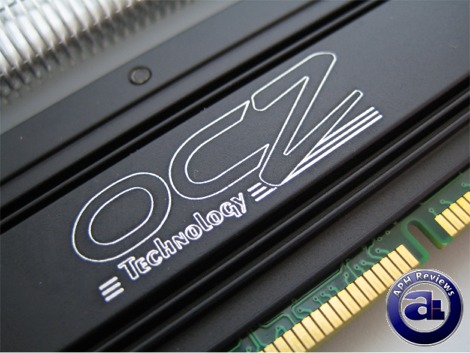

It looks good, and it overclocks like mad. The OCZ ReaperX HPC PC3-10666 EB RAM kit combines an excellent heatsink with legendary overclocking Micron D9GTS ICs -- all for a winning combination.
