SYBA HyperDuo SY-PEX40052 (Page 6 of 7)

Page 6 - Benchmark: PassMark PerformanceTest 7.0

About PassMark PerformanceTest 7.0

This Advanced Disk Test, which is part of PerformanceTest, measures the data transfer speed when reading or writing data to one or more disks. The speed that data can be transferred between memory and a hard disk drive is one of a system's most important performance aspects. There are quite a few factors which have a bearing on this speed and the Advanced Disk Drive Test allows the user to vary most of these factors and compare the results.

The test supports any drive that can be mounted under Windows. Including IDE drives, SCSI, RAID, USB key drives, SATA, networked shared drives and external drives.

Users have the ability to test multiple drives at the same time using multiple threads, and specify:

- The size of the test file used. Larger files mean that the system cache has less of an effect on the test types, which use caching (see below).
- The size of the data block used for each read or write request. Larger blocks mean less requests and can lead to an improvement in performance.
- The choice of four access methods - C/C++ API, Win32 API cached / uncached and raw disk access.
- Sequential or random access (seeking plus reading and writing)
- Synchronous and Asynchronous access
- The split between reading and writing

The results of all completed tests may be graphed using our custom graphing components.

From: Developer's Page

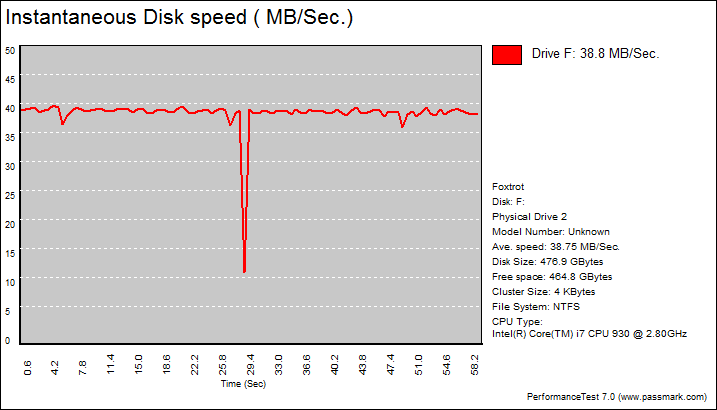

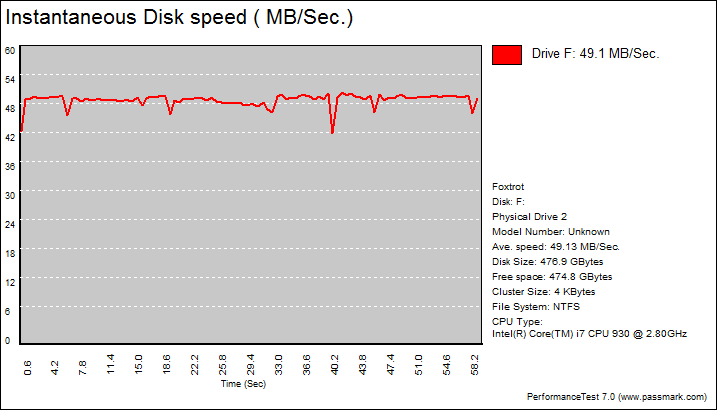

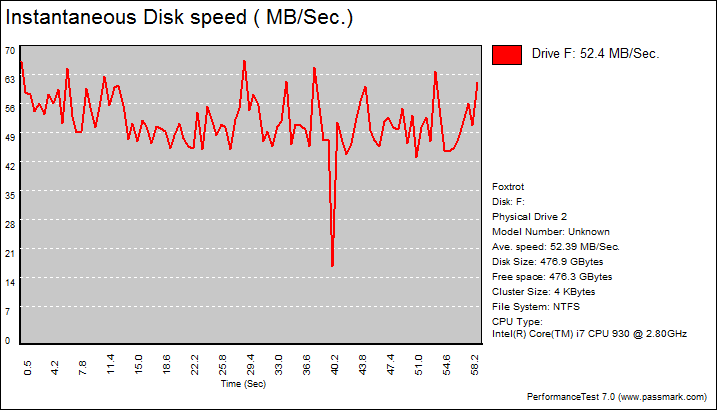

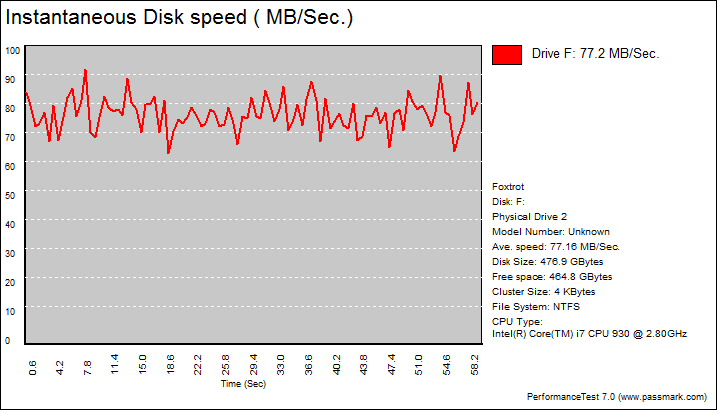

PassMark PerformanceTest 7.0's Advanced Disk Test, unlike other benchmarking applications we have used in this review, generates some awesome graphs right out of the box. It also provides valuable insight in simulating real world performance applications. To make things clear to you, the first graph simulates a database server, followed by a file server, web server, and workstation. For your reference, the results of the database server and workstation from the OCZ Octane 512GB reviewed by Jonathan are 54.2MB/s and 38.8MB/s using a native Intel SATA 6Gb/s controller, which is quite similar to our results I have obtained using this external controller card. However, there is a great difference in results when it comes down to the file and web server numbers, which are 116.2MB/s and 140MB/s, respectively. Again, I was expecting these results to be much better, but then again, this is a $25 product.
