Auzentech X-Fi Prelude Review (Page 4 of 6)

Page 4 - RightMark Audio Analyzer 24-bit/48 kHz

Testing device: Speakers (Auzen X-Fi Prelude 7.1)
Sampling mode: 24-bit, 48 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.0.6
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: 0.2 dB / 0.2 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct

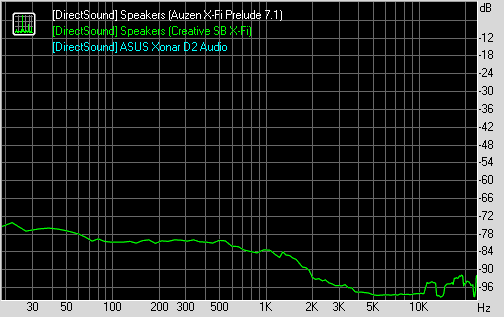

Stereo crosstalk

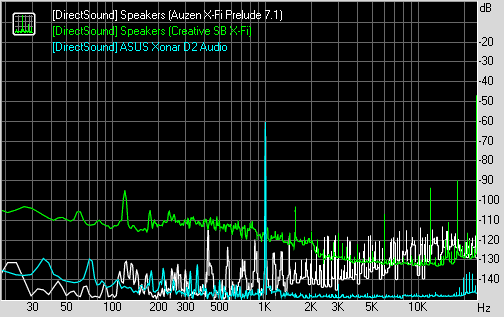

Dynamic range

Frequency response

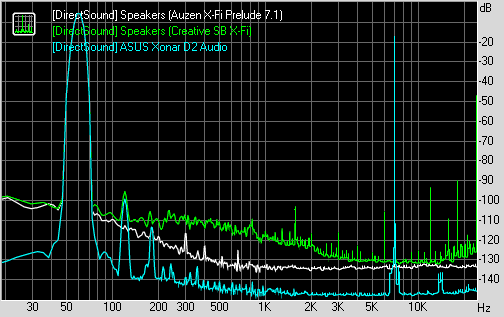

Intermodulation distortion

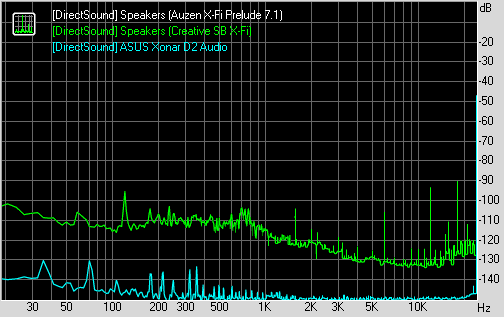

Noise level

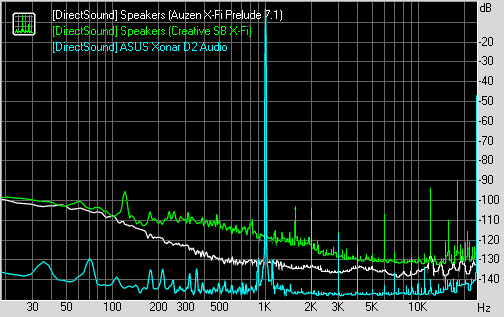

THD + Noise (at -3 dB FS)

Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.01 - Excellent
Noise level, dB (A): -400.0 - Excellent
Dynamic range, dB (A): 103.1 - Excellent
THD, %: 0.0002 - Excellent
THD + Noise, dB (A): -97.3 - Excellent
IMD + Noise, %: 0.0047 - Excellent
Stereo crosstalk, dB: -364.0 - Excellent
IMD at 10 kHz, %: 0.0021 - Excellent
General performance: Excellent
