Page 2 - Physical Look - Outside

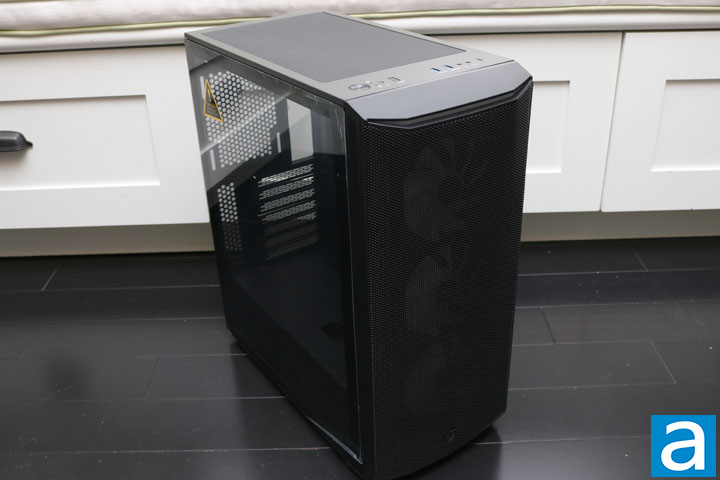

The SilverStone FARA 512Z has a fairly standard design. Its rectangle shape is a tried-and-true look for ATX mid-towers. The FARA 512Z also has a basic color scheme, sticking to black throughout the inside and outside of the chassis. The front is perhaps slightly different with a mesh panel. Some cases opt for a solid front with small vents on the side for air to be drawn in, but a full mesh front found on the FARA 512Z definitely gives a different look. It also maximizes how much air the front fans can pull in. This mesh front also curves slightly towards the outside edges, giving the entire case a bit more of a rounded look instead of having harsh corners. Finally, the mesh front means the ARGB LED front fans can shine through. When the case is powered on and the fans properly configured, the LEDs show through nicely. Other than the ARGB LEDs, the SilverStone FARA 512Z is a fairly standard case, with little to make it stand out from other cases.
The SilverStone FARA 512Z measures in at 210mm in width, 483.2mm in height, and 426.77mm in depth. These measurements ensure the case falls more into the smaller category for the size class. The depth is slightly less than usual, but its height is much closer to other mid-tower cases. Its width is also slightly tighter, which would limit the height of a CPU cooling tower to 162mm. Otherwise, the weight comes in at 6.83 kg, which makes sense considering its slightly smaller size compared to other mid-tower cases.

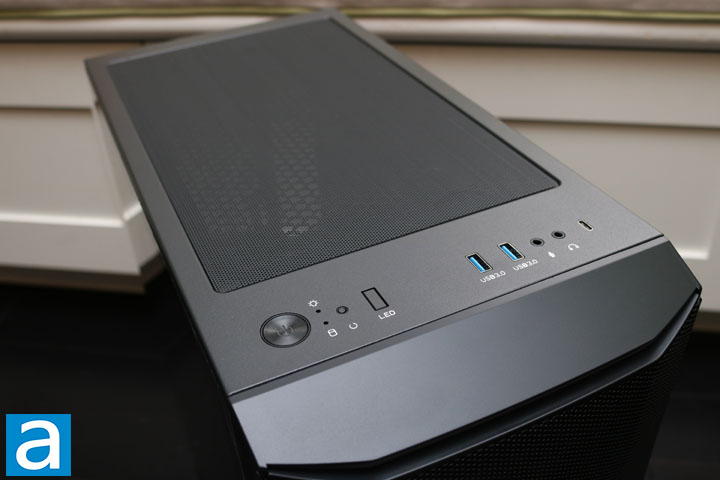

The SilverStone FARA 512Z has its I/O located on the top of the case at the front. A large circular power button is the most noticeable in this location. The button has a satisfying click when you push it. There is a smaller reset button found next to it, which helps in avoiding accidental presses. One major change from other cases is there is an LED button found on the front. This button cycles through different LED settings, which can be used in conjunction with the ARGB lighting hub. Next, we have two USB 3.2 Type-A ports, the 3.5mm audio jacks for your headphones and microphones, and a USB-Type C connector. The I/O of the case offers quite a bit of functionality. Seeing all these connectors is definitely a welcome sight.

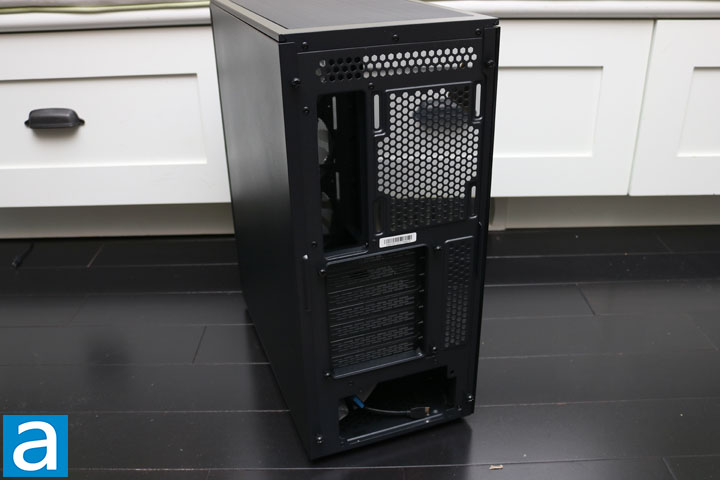

The SilverStone FARA 512Z is a familiar look for the most part. The back has the usual motherboard cutout with a fan exhaust next to it. A 120mm fan can be mounted here, but one is not included with the case. If you are eagle-eyed, this is where you may find a unique feature to the FARA 512Z. The seven expansion slots can be completely removed and reinstalled in a vertical orientation. There are four outer screws to allow the user to remove the entire square area of the slots and reinstall them easily in a different orientation. This is a fun added feature with a clever design choice to make the case more flexible for your needs. Below the expansion slots, we find the power supply cutout. This is a cutout for a standard ATX power supply. The right back panel shown above is made out of steel, while the left side panel is tempered glass.

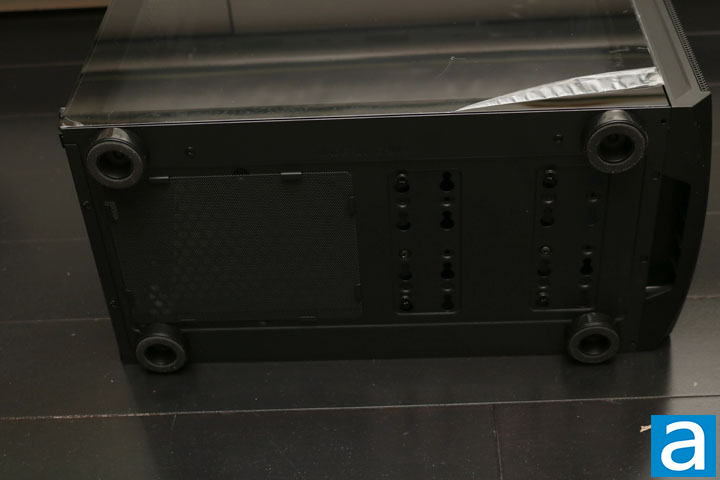

The bottom of the SilverStone FARA 512Z keeps its standard layout. There are four circular feet, which keeps the case lifted about 2cm off of the ground. This allows the power supply to function as an air intake. There is a small dust filter located down here, which will help keep the internals clean. The dust filter is not on rails and without a frame, so it can easily be lifted out, but it is a bit more work to slot it back in. The four circular feet also have rubber on the bottom. These help to keep the case in place and prevent any damage to whatever the case is sitting on.
