Corsair MP600 Core XT 2TB Review (Page 4 of 10)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

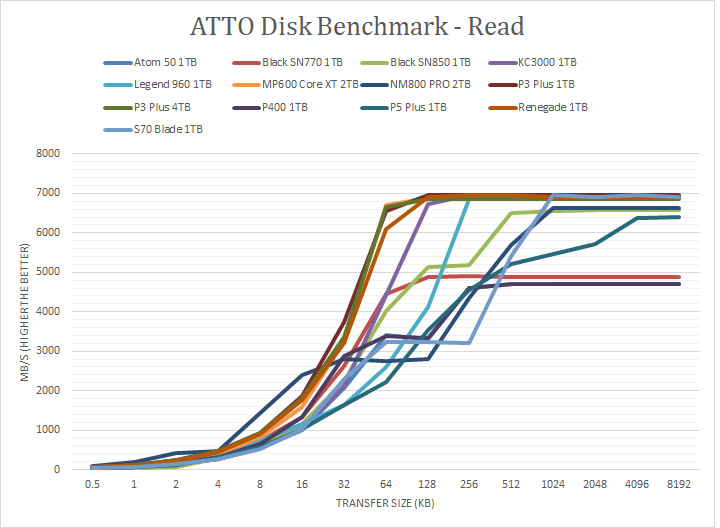

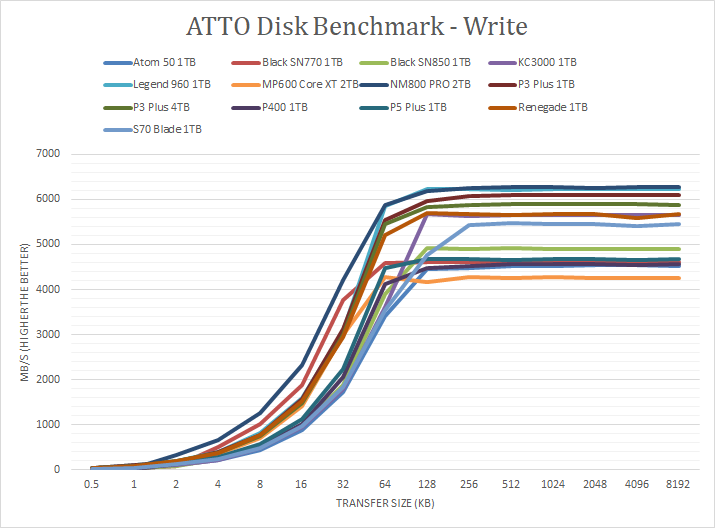

Following up next are our usual ATTO read and write tests. ATTO is an often-quoted benchmark because it is easy to use and accurate. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here. As manufacturer peak read and write performance ratings are usually achievable using ATTO, whether a drive lives up to its marketing claims or not can be validated by this program. Corsair claims the MP600 Core XT 2TB to have a maximum read speed of 5000 MB/s and a maximum write speed of 4400 MB/s. The MP600 Core XT 2TB did not quite reach these figures for the write speed, but came somewhat close with a tested maximum write speed of 4260 MB/s. On the other hand, the MP600 Core XT 2TB surpassed its rated read speed of 5000 MB/s by measuring a maximum read speed of 6900 MB/s. Taking a closer look below the curve, it was almost identical to the Crucial P3 Plus series. The ramp-up write speed was quite fast at moderate file sizes, specifically from 4KB to 32KB. The ramp-up read speed was good between 2KB to 64KB, and ended up being one of the faster drives among all the PCIe 4.0-based drives shown when it came to maximum read speed.
