Thermaltake SMART 630W (Page 3 of 4) | Reports

Page 3 - Physical Look - Inside

As always, we opened up our Thermaltake SMART 630W power supply to take a detailed look at what is going on inside. Please note that doing this at home will void your 5-year warranty, thanks to the warranty seal Thermaltake applied over one of the edges. But for the benefit of you, we cracked ours open so you don't need to, haha. There are no user serviceable parts inside.

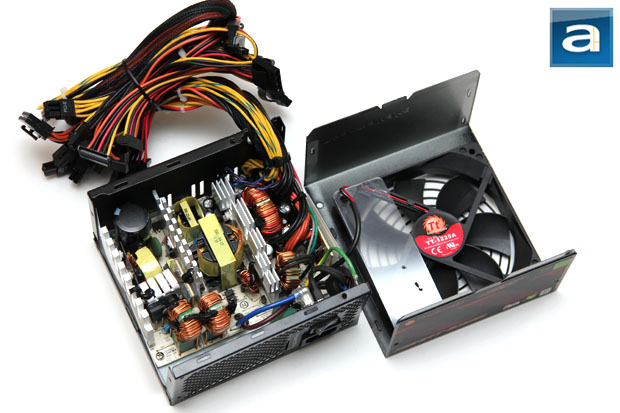

Disassembling the Thermaltake SMART 630W is pretty straightforward, but with a few tricks in between. With two screws at the top, in order to get the shell off the frame, you will need to take out an additional three screws on the side -- two of which are hidden behind the label on the right. Built by HEC/Compucase, our photo above shows an overhead view of the its internal components. At first glance, the build quality appears to be acceptable, but definitely not great -- the soldering job has some room for improvement. Although it is fairly tightly packed inside, the components are well organized for optimal cooling and reduced heat congestion. There are mid-sized three heatsinks inside the power supply, with all of them finned at the top, as you can see in our photo above.

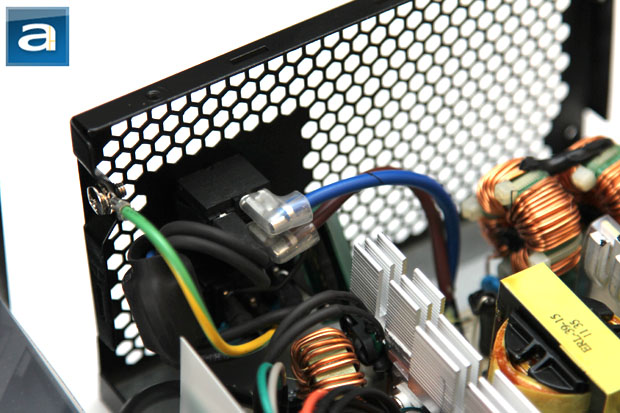

The transient filter stage is the first input stage of a computer power supply, so we will take a look at that first. Thermaltake has done a great job in making sure the SMART 630W met or exceeded the recommended requirements, and this is quite admirable, considering this is more of a value oriented product. The Thermaltake SMART 630W has one ferrite coil, two chokes, one metal oxide varistor, three metalized polyester X-capacitors, and four ceramic Y-capacitors. That is three times as many X capacitors and twice as many Y capacitors than recommended. Considering how many modern day PSUs have missing MOVs, I am happy to see it here, as this component is used to stabilize spikes from the AC line.

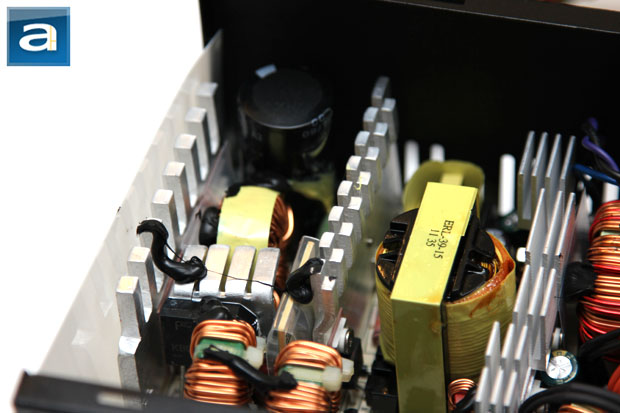

On the primary side, we can see one Taiwanese made Teapo capacitor. Taiwanese made units are nothing out of the ordinary for budget oriented power supplies, but we have seen Japanese made primary capacitors in comparable models from other manufacturers. Our 630W version of Thermaltake's SMART incorporates one 330µF x 400V capacitor. It is rated at 85c; we can definitely see where the manufacturer has saved costs on this PSU.

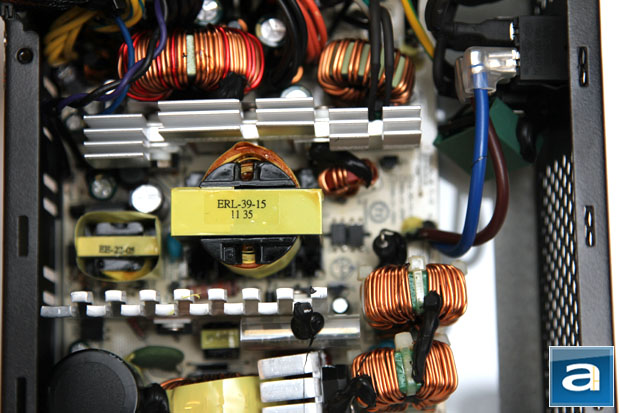

The active PFC circuit featured on the Thermaltake SMART 630W uses one DC Components Co. KBU10J single phase silicon bridge rectifier, and is controlled by a Champion CM6800 PFC/PWM controller combo. At 115V, the maximum rectified forward current capacity with heatsink is 10A, so you can theoretically pull up to 1150W (10A * 1 diode * 115V) from the bridge rectifier at 100% efficiency -- of course, this is limited by the fact that it is not 100% efficient, and also neglects the fact that not every component in the system are able to keep up. Two Infineon IPP60R190C6 power MOFSET transistors are used on the active PFC circuit on the Thermaltake SMART 630W power supply. Each Infineon IPP60R190C6 MOFSET can deliver up to 12.8A at 100 degrees Celsius continuously. These transistors present a maximum resistance of 0.190 ohm when turned on; with a typical resistance of 0.170 ohm according to the manufacturer's data sheet. Two MagnaChip MDP18N50 are used in forward configuration is used in the switching section. Both MagnaChip MOFSETs can deliver up to 11A at 100 degrees Celsius continuously. These transistors present a maximum resistance of 0.27 ohm when turned on; with a typical resistance of 0.220 ohm according to the manufacturer's data sheet. This on characteristic is called Static Drain-Source On-Resistance, or commonly abbreviated as RDS(on). The more efficient the component is, the lower the RDS(on) value, since it wastes less power with lower resistance.

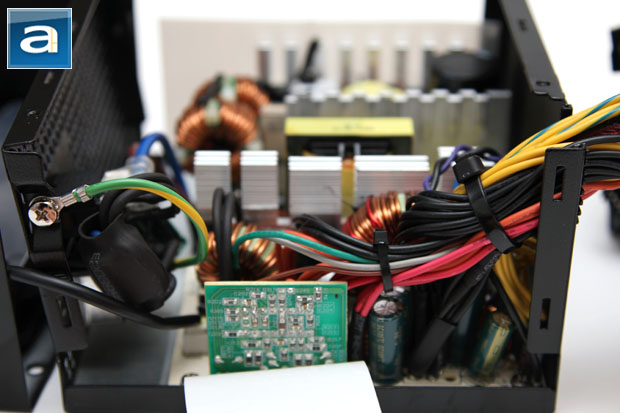

On the secondary side, we can see Teapo 105c capacitors. I am pleasantly surprised by this, because the SMART 630W only has a 85c rated primary capacitor. To get everything going, there are two Diodes Inc. SBR60A60CT Schottky rectifiers for its DC +12V output process. The SBR60A60CT's average rectified current is 60A at 150c, peak forward surge current of 280A at 25c, with a Tjunction value of up to +150c. Three STMicroelectronics STPS30L45C rectifier diodes are found on the other side of the same heatsink; two for the +3.3V and one for the +5V output. The STPS30L45C's average rectified current is 30A at 150c, peak forward surge current of 220A at 25c, with a Tjunction value of up to +150c. Using MOSFETs are more efficient than rectifier diodes in the SMART 630W, due to less ohmic loss in the process. The STPS30L45C Meanwhile, a Silicon Touch PS223 IC provides over/under current, over/under voltage, and over temperature protection on the vertical PCB behind the plastic sheet.

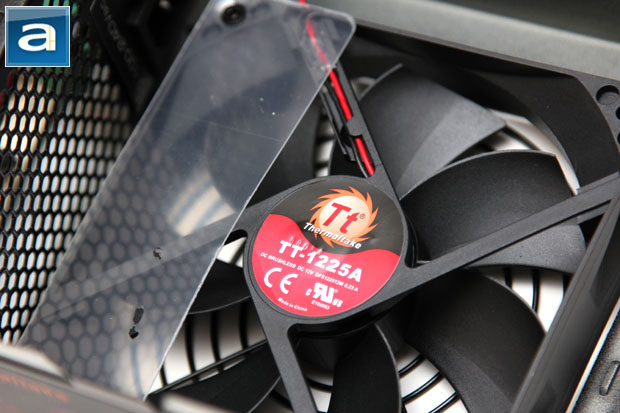

Lastly, we see a modestly sized 120mm fan that provides cooling to the Thermaltake SMART 630W's internal components. It is connected to the mainboard using a 2-pin connector via an adapter cable. Although it is not the largest fan you can fit in a standard ATX power supply, an overhead design provides lots of airflow at lower speeds for quiet operation in most cases. The fan is a Thermaltake TT-1225A, which is a rebranded Young Lin Tech DFS122512H. Further research indicates the TT-1225A/DFS122512H is specified at 0.28A for a maximum of speed of 1700 rpm. The rated airflow is 71.05 CFM and 20.59 Pa static pressure at 33.87 dB of noise.
