ASUS P8H67-I Deluxe Review (Page 6 of 12)

Page 6 - Benchmark: AIDA64 Memory

About AIDA64 Extreme Edition

AIDA64 Extreme Edition is a streamlined Windows diagnostic and benchmarking software for home users. AIDA64 Extreme Edition provides a wide range of features to assist in overclocking, hardware error diagnosis, stress testing, and sensor monitoring. It has unique capabilities to assess the performance of the processor, system memory, and disk drives. AIDA64 is compatible with all current 32-bit and 64-bit Microsoft Windows operating systems, including Windows 7 and Windows Server 2008 R2.

AIDA64 implements a set of 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Processor benchmarks utilize MMX, 3DNow! and SSE instructions, and scale up to 32 processor cores. For legacy processors all benchmarks are available in 32-bit version as well. AIDA64 Disk Benchmark determines the data transfer speed of hard disk drives, solid-state drives, optical drives, and flash memory based devices.

From: Developer's Page

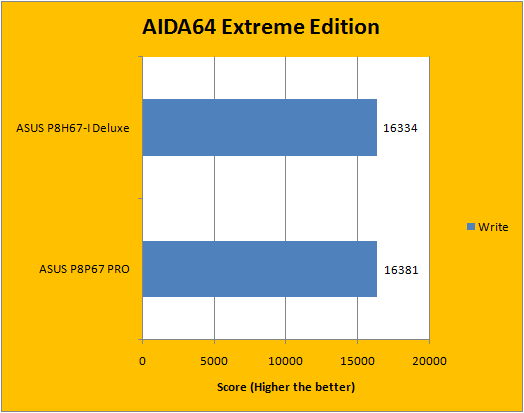

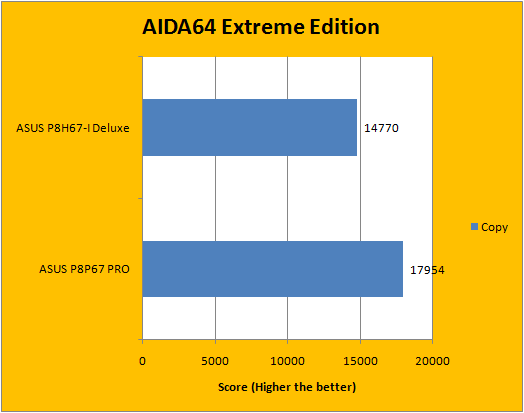

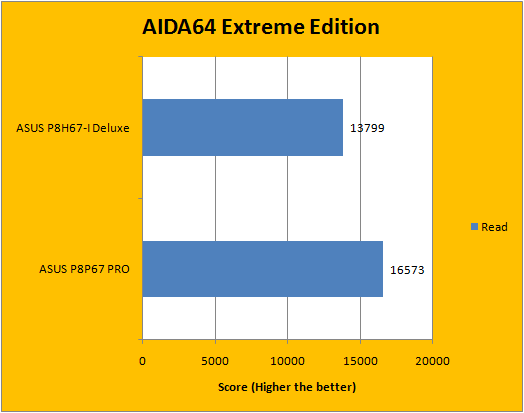

AIDA64's synthetic memory tests is the one next up to produce results for our review today. In pretty much all the benchmarks, we can see that higher memory bandwidth RAM kits are generally favored -- whether it be the Copy, Write, or Read results. One thing to point out is the Latency benchmark of AIDA64 is affected by both bandwidth and timings, so in case two sets of RAM run at the same speed, usually the one with the lower latency wins. Our test results are skewed in favor of the P8P67 PRO simply because it has faster desktop memory installed -- other than that, the P8H67-I Deluxe should exhibit identical performance characteristics.
