Page 11 - Onboard Sound (RMAA 6.2.3) Analyzation
ASUS advertises its onboard audio as "ASUS Crystal Sound" on the P8P67 PRO with the Realtek ALC892 high definition audio codec. As discussed earlier, this is the improved version of the Realtek ALC889. Let's see how well it performes in our RightMark Audio Analyzer tests.
Test Information:
Testing device: Speakers (Realtek High Definition Audio)
Sampling mode: 16-bit, 48 kHz
Interface: DirectSound
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.2.3
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.6 dB / -0.5 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB: -0.05, +0.02
From 40 Hz to 15 kHz, dB: -0.04, +0.02

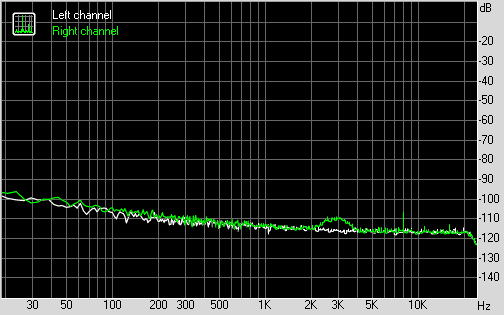

Noise level
RMS power, dB: -82.3, -81.1
RMS power (A-weighted), dB: -83.7, -81.9
Peak level, dB FS: -66.3, -65.7
DC offset, %: -0.0, -0.0

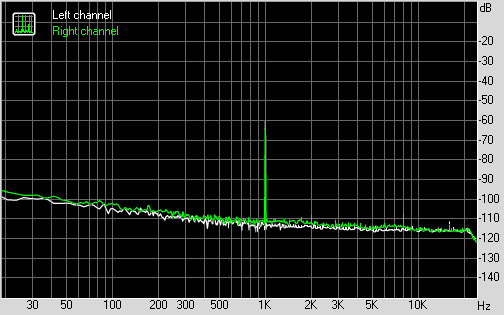

Dynamic range
Dynamic range, dB: +82.4, +81.3
Dynamic range (A-weighted), dB: +83.8, +82.2
DC offset, %: +0.00, -0.00

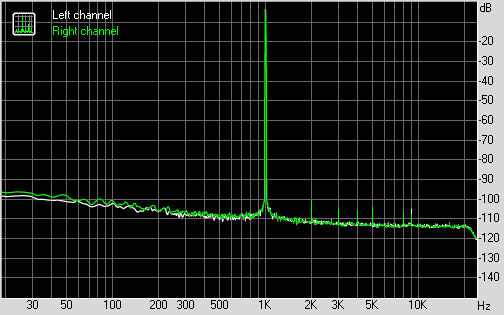

THD + Noise (at -3 dB FS)
THD, %: +0.0024, +0.0028
THD + Noise, %: +0.0188, +0.0193
THD + Noise (A-weighted), %: +0.0171, +0.0169

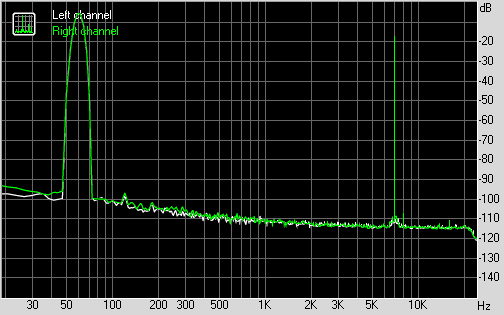

Intermodulation distortion
IMD + Noise, %: +0.0210, +0.0219
IMD + Noise (A-weighted), %: +0.0180, +0.0180
Stereo crosstalk
Crosstalk at 100 Hz, dB: -73, -76
Crosstalk at 1000 Hz, dB: -80, -80
Crosstalk at 10000 Hz, dB: -79, -81

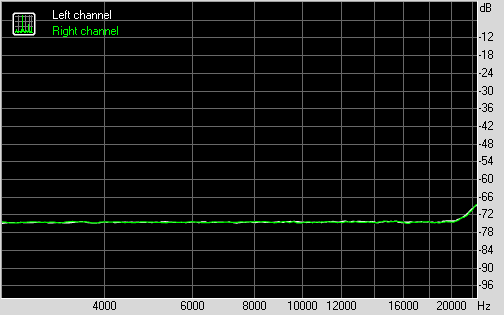

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0186, 0.0189
IMD + Noise at 10000 Hz: 0.0189, 0.0184
IMD + Noise at 15000 Hz: 0.0194, 0.0192
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.04 - Excellent
Noise level, dB (A): -82.8 - Good
Dynamic range, dB (A): 83.0 - Good
THD, %: 0.0026 - Excellent
THD + Noise, dB (A): -75.4 - Average
IMD + Noise, %: 0.021 - Good
Stereo crosstalk, dB: -80.8 - Very good
IMD at 10 kHz, %: 0.019 - Very good
General performance: Very good
