Crucial BX500 960GB Review (Page 4 of 11)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

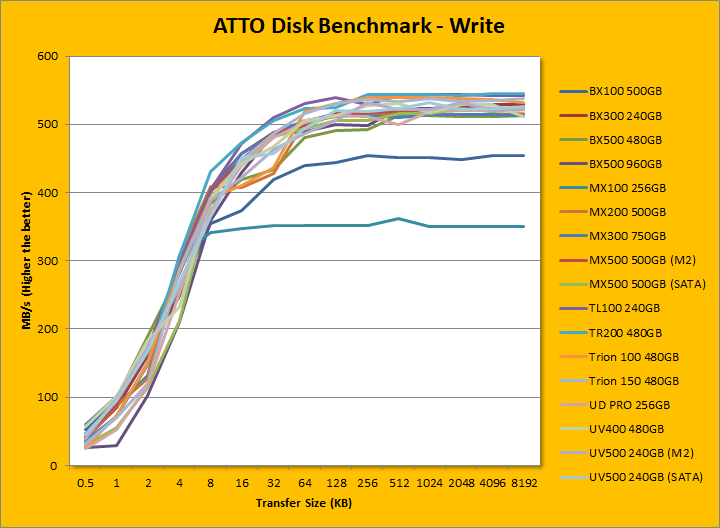

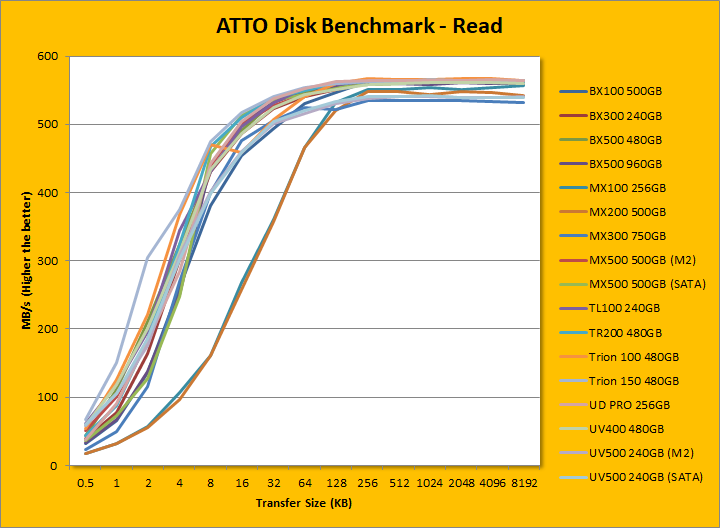

Following up next is our usual ATTO read and write tests. ATTO is an often-quoted benchmark, because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I have grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here; as far as the Silicon Motion SM2259XT is concerned -- well, here are our results. As manufacturer peak read and write performance ratings are usually achieved using ATTO, whether a drive lives up to its marketing claims or not can be validated by this program. Crucial claims the BX500's maximum read and maximum write are pinned at 540MB/s and 500MB/s, respectively. According to our tests, these numbers were underrated. It peaked at 561.841MB/s read and 523.776MB/s write. Under the curve, the BX500 960GB's ramp up write speed was a slower than the BX500 480GB up to 16K and fell behind in read up to 8K. The rest was mostly comparable between the two, except the BX500 960GB had higher peak write performance.
