Page 5 - Benchmark: Crystal Disk Mark

About Crystal Disk Mark

- Measure sequential reads/writes speed
- Measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed
- Select test data (Random, 0Fill, 1Fill)

From: Developer's Page

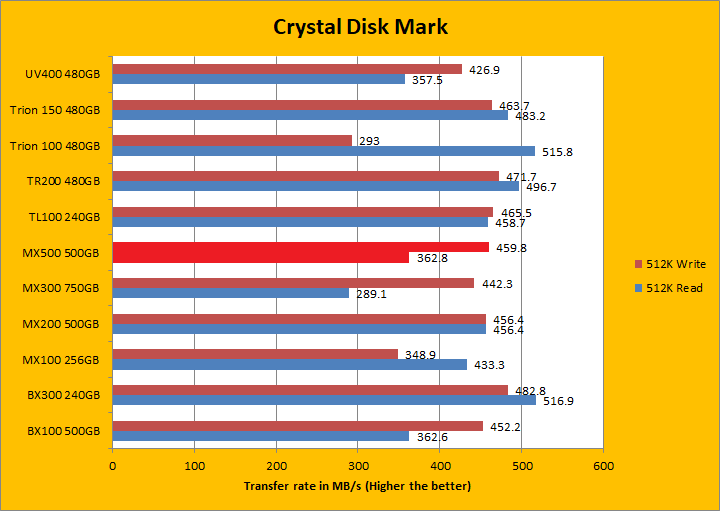

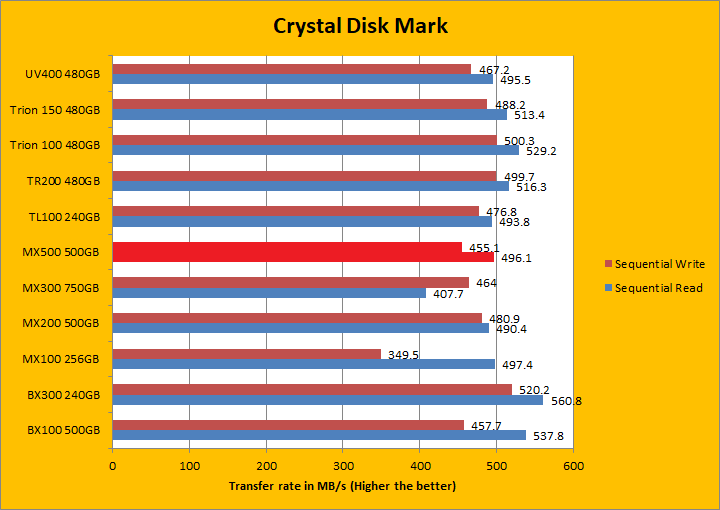

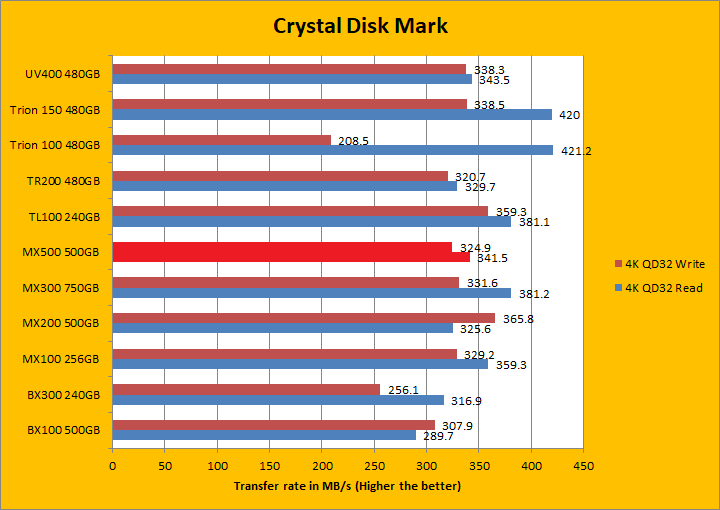

Crystal Disk Mark 3.0 is in the spotlight. Just a bit of background information; higher capacity drives tend to perform a little better in these tests. The ability of a controller and flash memory to deliver high IOPS will provide huge benefits to the score as well. The Crucial MX500 500GB is rated at 95,000 IOPS for read and 90,000 IOPS for write. Its read rating is slightly lower than the MX200, but the write rating is slightly improved. Both figures are an improvement over the MX300 though. Looking at the results, the MX500 was decisively better than the MX300 in both sequential and 512K read and write, but it was, on average, slower than the MX200 in the same areas. In 4K read and write, the MX500 pulled out way ahead of the MX200, but was only better than the MX300 in the read segment. Lastly, in 4K QD32 read and write, the MX500 was marginally slower than the MX300 on both counts, but once again, traded punches with the MX200. I will let you make your own comparisons in our list of budget SSDs in the graphs above.
