G.Skill Trident Z F4-3200C16D-16GTZ 2x8GB Review (Page 8 of 10)

Page 8 - Benchmark: PassMark PerformanceTest 8.0

About PassMark PerformanceTest 8.0

Fast, easy to use, PC speed testing and benchmarking. PassMark PerformanceTest allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.

Thirty-two standard benchmark tests are available in five test suites plus there are seven advanced testing windows for custom benchmarking.

- CPU tests Mathematical operations, compression, encryption, SSE, 3DNow! instructions and more
- 2D graphics tests Drawing lines, bitmaps, fonts, text, and GUI elements
- 3D graphics tests Simple to complex DirectX 3D graphics and animations
- Disk tests Reading, writing and seeking within disk files
- Memory tests Allocating and accessing memory speed and efficiency
- CD / DVD test Test the speed of your CD or DVD drive

From: Developer's Page

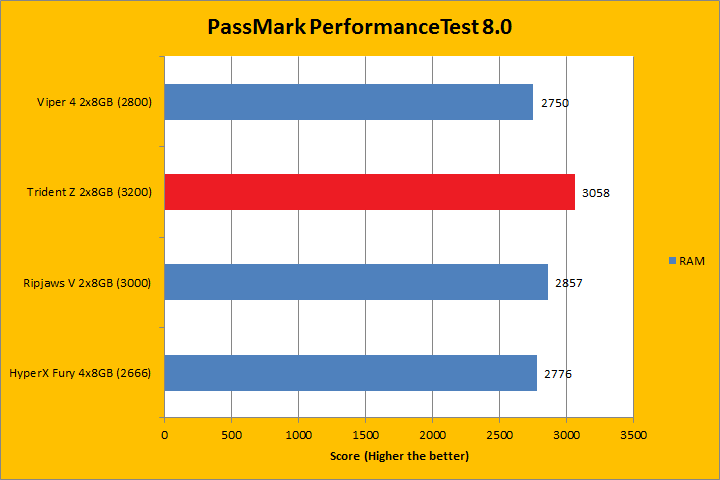

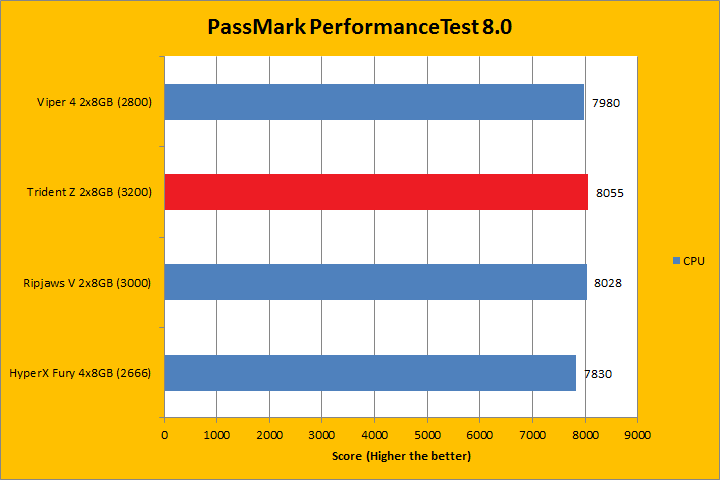

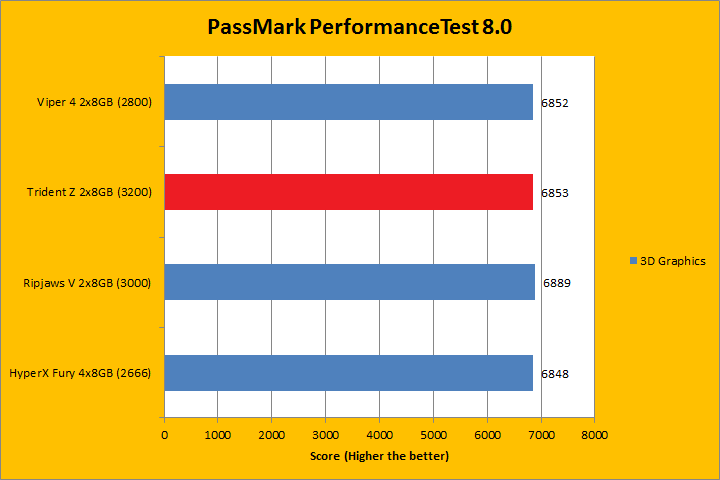

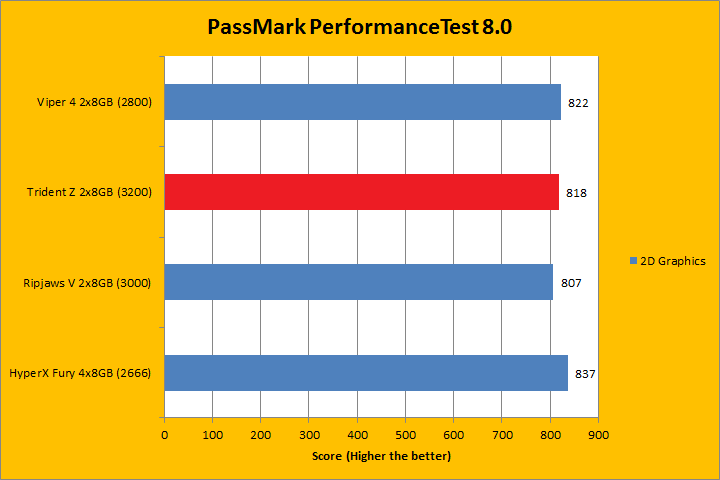

We run PassMark PerformanceTest 8.0 to evaluate four different areas of our system; coming down to the CPU, RAM, 2D Graphics, and 3D Graphics. It takes a somewhat different approach in obtaining results compared to other programs, which is why we like to use it, haha. PassMark Performance Test 8.0's memory benchmarking tool is the only test in our setup that takes memory capacity into account, but it did not seem to account for anything above 16GB. Usually, doubling the RAM will increase the score by about one and a half times, but the Kingston 32GB kit here did not rank higher compared to the rest of the 16GB kits for its capacity advantage. Again, all the results were extremely close to each other, with the highest bandwidth G.Skill Trident Z F4-3200C16D-16GTZ 2x8GB ahead in the CPU benchmark, increased the gap even more in the RAM test, and held its own in the 2D and 3D Graphics results.
