Page 12 - Onboard Sound Frequency Analysis
While Gigabyte did not really advertise the integrated sound on the Z77X-UD3H, the company has a great record of having very good performing audio on their motherboards. Additionally, as discussed on Page 3 of this review, what we have here is not your run-of-the-mill Realtek codec -- it is actually powered by a VIA VT2021 chip. So how does it stack up in our tests? As usual, RightMark Audio Analyzer has the answers, and here is the full report.
Test Information:
Testing device: Speakers (VIA High Definition Audio)
Sampling mode: 16-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.2.5
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.8 dB / -0.8 dB
Mono mode: OFF
Calibration singal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB: -0.14, +0.10; -0.16, +0.07
From 40 Hz to 15 kHz, dB: -0.06, +0.01; -0.09, -0.02

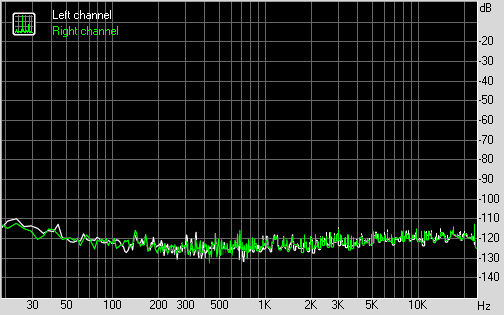

Noise level
RMS power, dB: -90.5, -90.6
RMS power (A-weighted), dB: -91.7, -91.7
Peak level, dB FS: -76.1, -76.2
DC offset, %: -0.0, -0.0
Dynamic range
Dynamic range, dB: +90.3, +90.5
Dynamic range (A-weighted), dB: +91.4, +91.6
DC offset, %: -0.00, -0.00

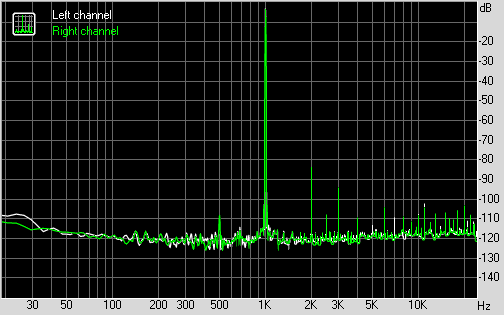

THD + Noise (at -3 dB FS)
THD, %: +0.0092, +0.0101
THD + Noise, %: +0.0114, +0.0120
THD + Noise (A-weighted), %: +0.0133, +0.0142

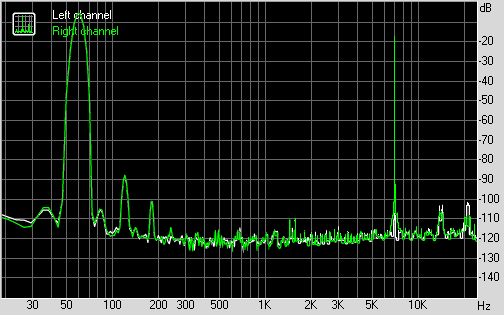

Intermodulation distortion
IMD + Noise, %: +0.0119, +0.0127
IMD + Noise (A-weighted), %: +0.0085, +0.0095

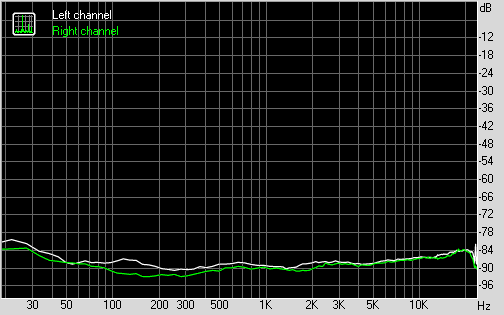

Stereo crosstalk
Crosstalk at 100 Hz, dB: -87, -90
Crosstalk at 1000 Hz, dB: -88, -89
Crosstalk at 10000 Hz, dB: -85, -86

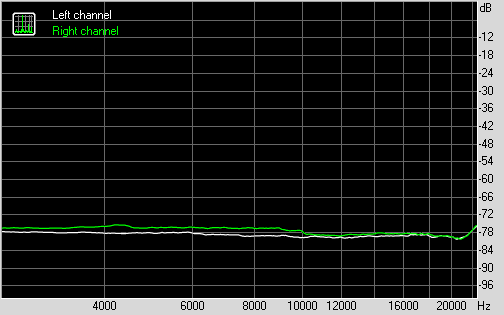

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0124, 0.0154
IMD + Noise at 10000 Hz: 0.0103, 0.0132
IMD + Noise at 15000 Hz: 0.0110, 0.0120
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: -0.02, -0.09 - Excellent
Noise level, dB (A): -91.7 - Very good
Dynamic range, dB (A): 91.5 - Very good
THD, %: 0.0096 - Very good
THD + Noise, dB (A): -77.2 - Average
IMD + Noise, %: 0.012 - Very good
Stereo crosstalk, dB: -89.6 - Excellent
IMD at 10 kHz, %: 0.012 - Very good
General performance: Very good
