Page 4 - Benchmark: ATTO Disk Benchmark
About ATTO Disk Benchmark
The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.
From: Developer's Page

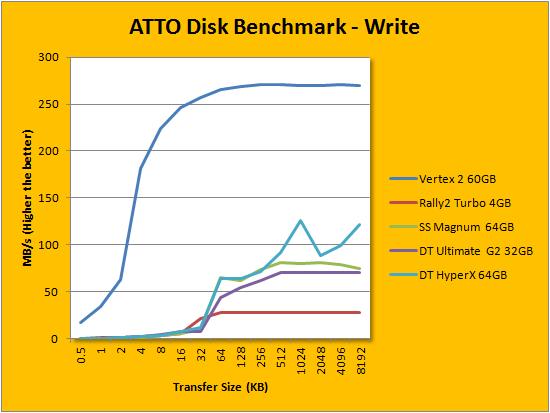

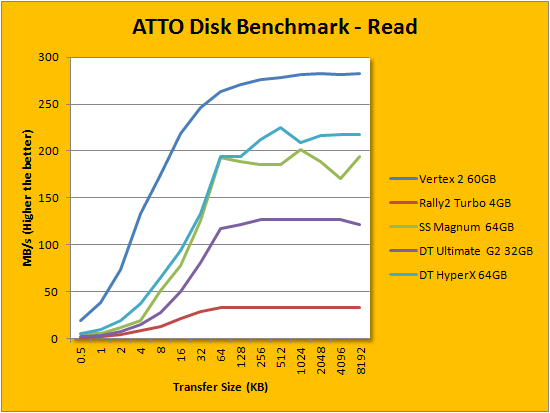

ATTO is one of my favorite benchmarks for quite a while. Ever since we have started using it in my network attached storage reviews last year, it has been integral to our battery of storage performance evaluations here at APH Networks -- mainly due to its accuracy, and thorough testing in accordance to varying transfer sizes. As you can see on our graphs above, its read performance greatly exceeds its write performance; peaking at 217MB/s and 126MB/s, respectively. In other words, Kingston's internal testing claims are quite accurate. Actually, it is consistently faster than the Patriot Supersonic Magnum 64GB across the curve, which is very impressive. I cannot explain the dips in near the end of both charts, but we are not the only review website with similar ATTO results.
