Page 9 - Benchmark: 3DMark
About 3DMark
3DMark includes everything you need to benchmark your PC and mobile devices in one app. Whether you're gaming on a PC, a tablet or a smartphone, 3DMark includes benchmarks designed specifically for your hardware.
Fast storage means shorter loading times and more time in the game. The 3DMark Storage Benchmark is a dedicated component test for measuring the gaming performance of your storage hardware. Using traces recorded from real games, it tests performance for activities such as loading games, saving progress, installing game files, and recording gameplay video streams.
From: Developer's Page
3DMark is the continuously updated version of the popular gaming benchmark from UL. We used 3DMark's Storage Benchmark to test the performance of the Western Digital WD_BLACK SN770M 2TB. According to UL, the Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance. The following traces were used and defined as follows:
Battlefield V: Loading Battlefield V from launch to the main menu.
Call of Duty Black Ops 4: Loading Call of Duty: Black Ops 4 from launch to the main menu.
Overwatch: Loading Overwatch from launch to the main menu.
Game Move: Copying the Steam folder for Counter-Strike: Global Offensive from an external SSD to the system drive.
Game Recording: Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch.
Installing Game: Installing The Outer Worlds from the Epic Games Launcher.
Game Saving: Saving game progress in The Outer Worlds.

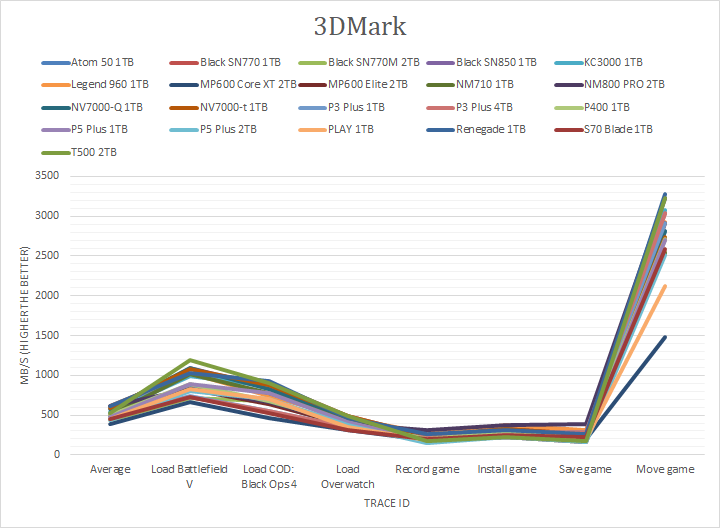

Similar to PCMark 10, the WD_BLACK SN770M 2TB came near the bottom in its overall performance result, except this time, the Lexar PLAY 1TB came out slightly ahead. It was still no match for the SN770 1TB though. The final score tells a lot of the story, but the details are important as we look at the throughput of each of the seven traces used. In these simulated real-life gaming workloads, the Lexar PLAY 1TB beat the WD_BLACK SN770M in every test but two, where one of the two the Lexar PLAY did not beat was a statistical tie. I will let you make your own comparisons using the graphs above.
