Page 9 - Benchmark: 3DMark
About 3DMark
3DMark includes everything you need to benchmark your PC and mobile devices in one app. Whether you're gaming on a PC, a tablet or a smartphone, 3DMark includes benchmarks designed specifically for your hardware.
Fast storage means shorter loading times and more time in the game. The 3DMark Storage Benchmark is a dedicated component test for measuring the gaming performance of your storage hardware. Using traces recorded from real games, it tests performance for activities such as loading games, saving progress, installing game files, and recording gameplay video streams.
From: Developer's Page
3DMark is the continuously updated version of the popular gaming benchmark from UL. We used 3DMark's Storage Benchmark to test the performance of the WD_BLACK SN770 NVMe SSD 1TB. According to UL, the Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance. The following traces were used and defined as follows:
Battlefield V: Loading Battlefield V from launch to the main menu.
Call of Duty Black Ops 4: Loading Call of Duty: Black Ops 4 from launch to the main menu.
Overwatch: Loading Overwatch from launch to the main menu.
Game Move: Copying the Steam folder for Counter-Strike: Global Offensive from an external SSD to the system drive.
Game Recording: Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch.
Installing Game: Installing The Outer Worlds from the Epic Games Launcher.
Game Saving: Saving game progress in The Outer Worlds.

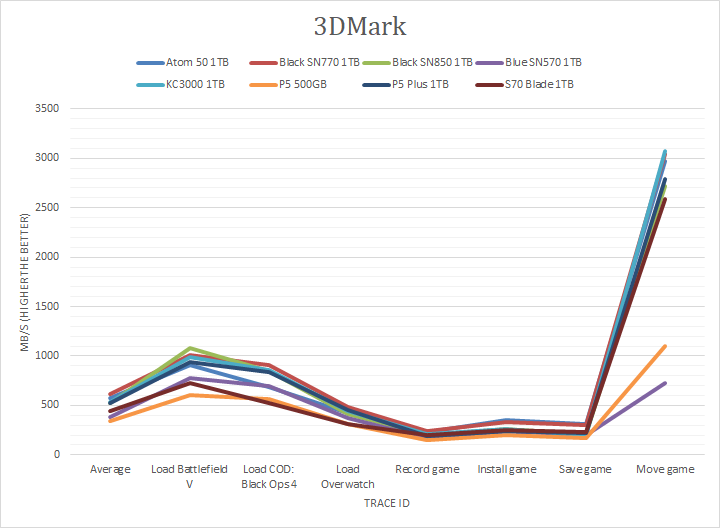

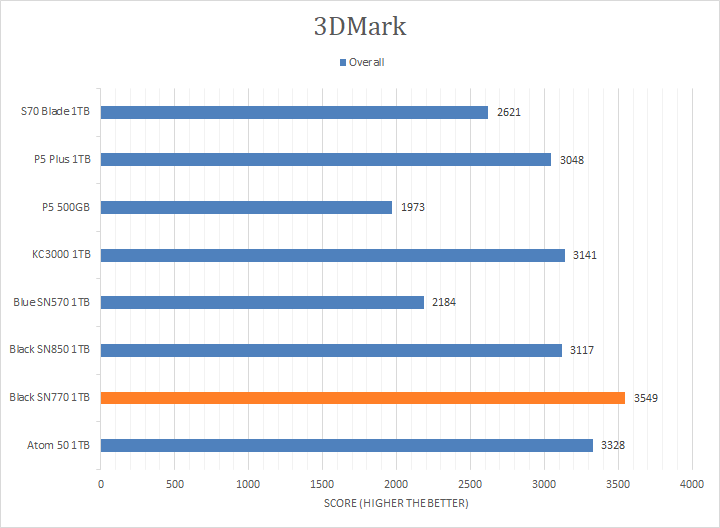

Similar to PCMark 10, the WD_BLACK SN770 NVMe SSD 1TB delivered leading performance overall. It easily outperformed the other tested PCIe 3.0 NVMe drives by a considerable margin. Like all PCIe 4.0-based drives, they were in a league of their own. But it was faster than them all, as it did in PCMark 10. I actually retested all the drives to confirm the results. It was about 14% faster than both the WD_BLACK SN850 NVMe SSD 1TB and Kingston KC3000 1TB, both flagship performance drives. The final score tells a lot of the story, but the details are important as we look at the throughput of each of the seven traces used. In these simulated real-life gaming workloads, the SN770 1TB was basically untouchable in almost all of them.
