Page 4 -Minor Tests and Conclusion
Power supplies are interesting products -- because often, reviews of products in this category are conducted and tested in methods that make it difficult to distinguish one power supply from another. Many aspects must be taken into consideration -- of which certain criteria consists of efficiency, noise, power ripples, and of course the ability to pull out the rated specifications. Because many cannot afford such equipment to obtain results regarding those aspects, articles covering power supplies often come out with less than adequate and acceptable information. As this is a product report -- not a review -- what we are doing is a close examination of the power supply and the internal hardware and build. But what we can do for you is do some minor testing with the results we can present to you with, and let other review sites with professional equipment show you the actual test results. We are not going to try to create useless test results by installing the power supply into the latest gaming rig and try to take readings from that, as this is not even remotely the correct way to test power supply units. We understand that many websites do that as a means of load testing, but the results, even if you use an oscilloscope and multimeter at each output location, it is not sufficient, nor does it accurately reflect the performance of the power supply.

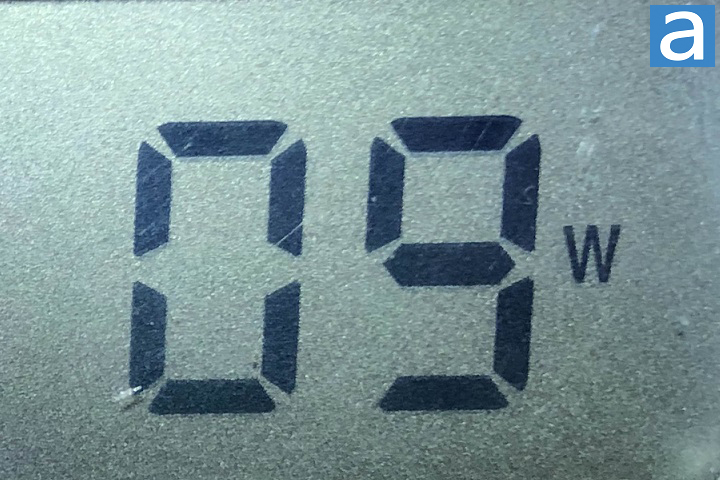

Using our power supply tester that exerts minimal load on the power supply, initial consumption was 9W as measured by our wall meter, indicating the basic load-free power consumption of the power supply is very good. There are no independent reviews from our affiliates with professional load testing equipment at press time to evaluate the Gigabyte P550B 550W's energy efficiency, voltage regulation, and ripple performance for all rails. That said, keep in mind that this is an 80 Plus Bronze certified power supply unit.

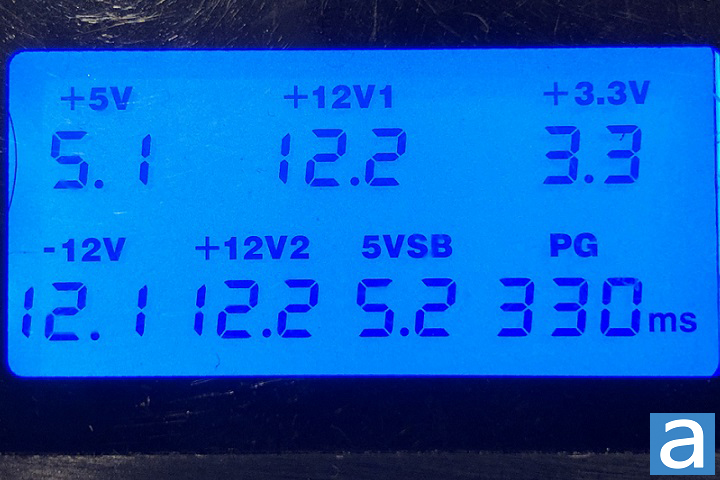

Voltages with minimal load are generally accurate, which is a basic requirement of power supplies out of the box. In this situation, all are well within 4%. The PG (Power Good) delay seems to be well within its rated range and general power supply standard at 330ms.
Active power correction is important to correct AC load line loss. In AC power, there are three components to it since there is a phase difference between current and voltage. This makes up the power triangle, which consists of the following: Average usable power (P, measured in watts), reactive power (Q, denoted as VA-R), and total power (S, written as VA). While these are all power measurements, they cannot be considered as one thing. What we want is the average usable power, with as little wasted reactive power as possible. The total power provided over the AC line is the magnitude of the two combined (sqrt(P^2+Q^2)). Power factor can now be easily calculated as P/S. The ideal value is 1.00, and this is where APFC comes in. The Gigabyte P550B 550W has active PFC, which means the power factor will approach 0.99 with a nominal load.
The cooling fan in the Gigabyte P550B 550W power supply unit can optimize the noise emissions and thermal performance. Using the APH Networks noise scale that defines 0 as silent and 10 as the loudest, I would rate this power supply unit as 2.0/10 acoustically under normal loads.
Gigabyte provided this product to APH Networks for the purpose of evaluation.
The Gigabyte P550B 550W is overall a compact and well laid out non-modular power supply unit. Its internal design, features, and three-year warranty is appropriate for a budget ATX PSU. Furthermore, the selection of internal components is about what you would expect for a product of this price, which consists of mainly Chinese-made capacitors and electronics. The retail price of the P550B is about $60 USD at press time, which is reasonable. However, compared to the Corsair CV550 550W, the CV550 has better power distribution and generally better quality internal components under the hood, in my personal opinion, for around the same price.
