Page 2 - Physical Look - Outside
With all the packing material removed, the Antec P20C shows off an average looking case. We have a typical squared-off design in a dark color scheme. The solid side panels and a ventilated front area allow for a single path of airflow through the case. The front does show a bit of color with its lighter shade of gray near the front, and a thin strip of yellow that can be seen between the two front panel elements. This yellow color is pretty neat and it serves as a reference to the colors of the Antec brand. The front panel has a triangular grid pattern to allow for airflow while keeping the structure. This front is narrowed in on both sides for a slightly more streamline look. There is also a gap at the top to let users pull off this front metal panel, as we will reveal later on. Overall, this case is adequate in its looks. There is nothing that really stands out, whether positive or negative, which could be a good thing for a clean build. Antec logos are kept to a minimum as well, with a single one found at the front edge. It is also in a darker gray color to be a bit more hidden. Personally, I do appreciate this low-frills design on the P20C, although those looking for something more eye-catching may want to look elsewhere.
The measurements of the Antec P20C are 469mm in depth, 220mm in width, and 490mm in height, which feels relatively compact for a mid-tower computer case. Compared to the P10 FLUX, the P20C is not as deep, but it is slightly taller, making them both pretty similar in overall footprint. As for its mass, the Antec P20C tips the scales at 8.1kg, which is again is average for a case of this size. This is not too surprising considering the construction of the case, which is still sturdy but made up of relatively light elements. The Antec P20C is made up of primarily steel with a plastic front panel frame. The tempered glass side panel adds a notable amount of weight, as the comparable Antec P20CE, the same case with a solid side panel, weighs in at a lighter 7.21kg.

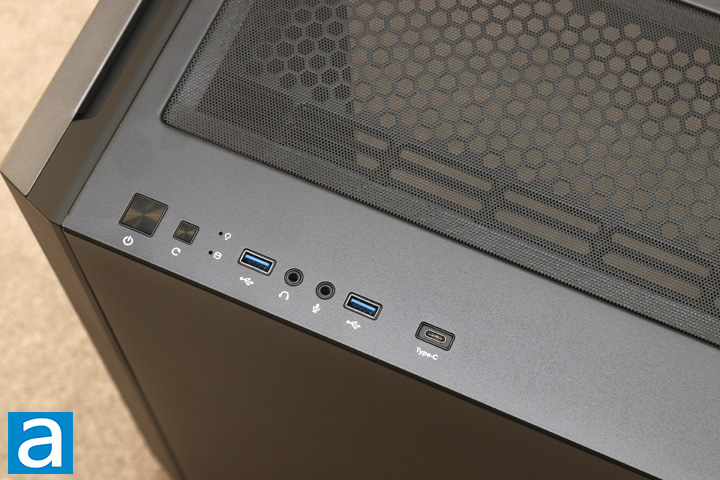

The user-facing inputs and outputs can be found on the top of the case. From the front to the back of the Antec P20C, we first have the large square power button followed by a smaller square reset button. Two LED lights are present here to show power and drive activity. The power LED light shows a constant blue when on, while the drive activity light blinks red. Next, we have two USB 3.2 Gen 1 Type-A ports with two 3.5mm audio jacks in between. These audio plugs are used for headphone output and microphone input. Finally, we have a USB 3.2 Gen 2 Type-C port. It is great to see a Type-C port, although this layout of ports is pretty standard for cases in 2023. Otherwise, we also can see the ventilation area at the top. A large opening is filtered by a plastic mesh covering that holds in place with magnets. This area is also indented so the filter sits flusher with the rest of the top.

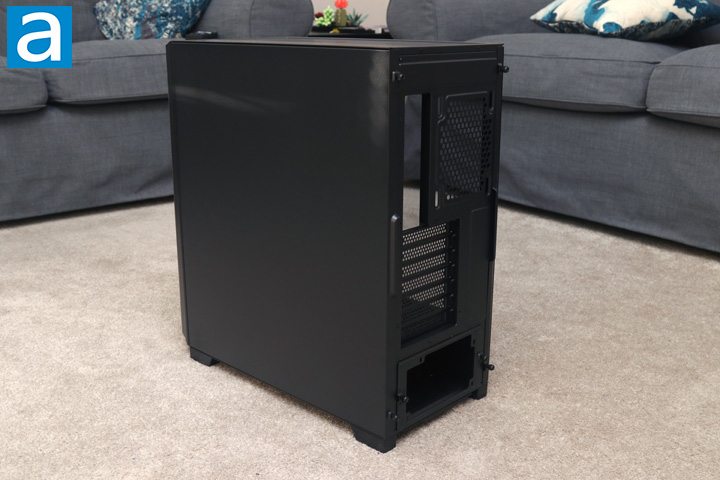

Flipping to the backside, you can see the Antec P20C looks just like any other mid-tower computer case. At the top, we have the motherboard I/O cutout with an exhaust area next to it. This has rails for users to mount a single 120mm fan here. Underneath, we have seven expansion slots, which are secured in place with screws. These slots are bridgeless and not divided by the rest of the frame. We have seen this on other cases like the Fractal Design Focus 2. The slots also have perforations to allow air to pass through here. At the bottom, we have the power supply opening with a bracket that comes off during installation. These opening fits a standard ATX power supply, which is not surprising. On the other side panel, we have a solid one made out of steel. It is held onto the case with captive thumbscrews.

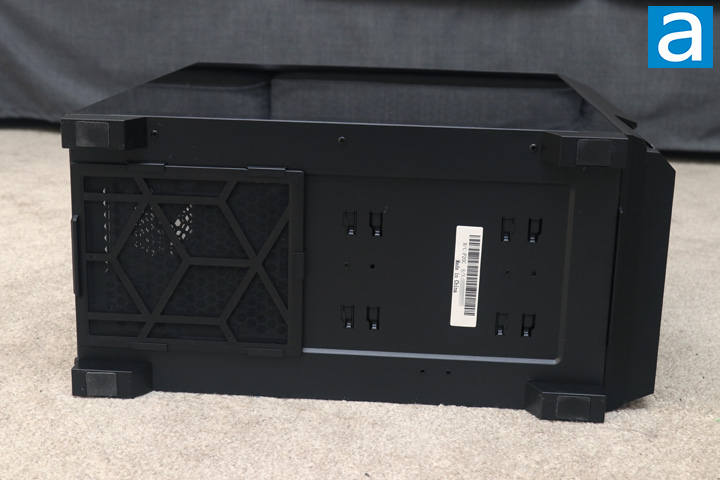

On the bottom, the Antec P20C looks again as you might expect. Each corner has a large foot with rubber padding underneath to prevent vibrations between the case and the surface it sits on. It also keeps the case from sliding on hard and smooth surfaces. Collectively, the four feet raise the P20C above the surface by 2cm, which should allow air to flow in and out. This is important as the bottom area is often used as intake for the power supply. As you can see, the back has a mesh filter that is held on a plastic frame. It can be removed from the back for cleaning. A label with the serial number can be found closer to the front, as well as the fact this computer case is made in China. Otherwise, there is not too much else to see here, so let us move on.
