Corsair Frame 5000D RS ARGB Review (Page 1 of 4)

Corsair Frame 5000D RS ARGB Review

By: Hai Wang
September 5, 2025

Rock climbing is a fascinating sport. It challenges both the body and the mind in ways few activities do. At first glance, it looks like nothing more than pulling yourself up a wall, but the reality is much more complex. It demands tremendous grip strength, as every finger and tendon works together to hold on. For beginners, climbing often feels like a test of pure hand strength, but as the routes get more advanced, the entire body comes into play. Core muscles stabilize every movement, legs push with as much force as arms pull, and efficiency becomes just as important as power. Beyond strength, climbing requires sharp spatial reasoning. Every climb is a puzzle where each hold must be evaluated strategically. Sometimes the next move involves a controlled swing, requiring you to visualize and predict exactly how far you will travel before committing. Precision, foresight, and a keen sense of three-dimensional space are just as important as raw muscle. I have learned all this not because I am an expert climber, but because I recently tried it for fun at the YMCA. Interestingly, when I turned my attention to today’s review unit, the Corsair Frame 5000D RS ARGB mid-tower case, I realized that the grip strength from climbing might actually make assembling a PC inside this chassis a little easier. At first, rock climbing and computer building may seem worlds apart, but as we will see, there are more connections than you might expect. Want to know more? Let us read on and find out!

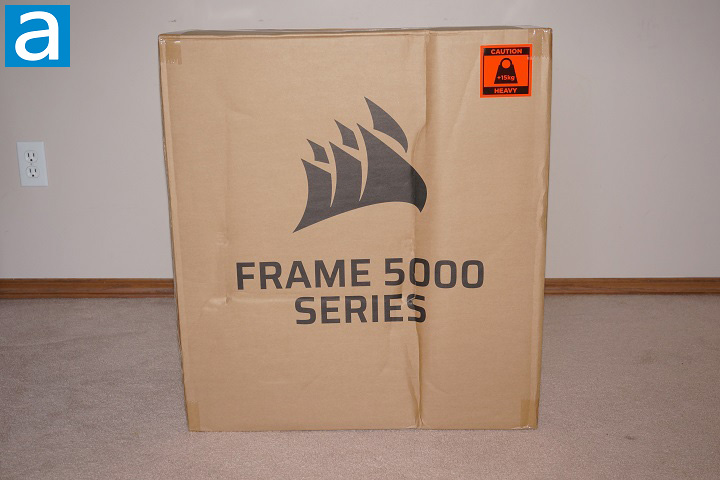

Today’s review unit was shipped from Corsair's offices in Hong Kong to us here in Calgary, Alberta, Canada via FedEx International Economy. While it did not exactly travel first class or business class, the package had no reason to complain, as the overall condition was quite good. When we first received it, the box was wrapped in protective plastic film to guard against water exposure, and all the corners and edges were reinforced with angled cardboard protectors. Thanks to this, the package looked clean and well-protected, with corners and edges in excellent shape. There was a small crease on the right side of the box, but nothing serious enough to raise concern. Overall, there were no signs of unacceptable damage that might make you worry about the safety of the case inside.

Usually, a good retail package design can draw people’s attention and make the product itself stand out among hundreds of other products on the shelf. However, the realm of computer cases is different. Most of the time, the dealer will either directly put sample cases on the shelf or just demonstrate some fully built computers using those chassis. Therefore, it is mostly unnecessary to have a fancy retail packaging for a computer tower. At least for me, I would not buy a computer case just because it looks great on the box. The retail package of Corsair Frame 5000D RS ARGB is simply a brown cardboard box. It shows a giant Corsair company logo and what series this product belongs to. There is no drawing of the case it self on the package. Overall, the retail package looks very eco-friendly, and it prompts us to open the package to see what is inside the box.

Before we do anything else, let use quick look at the specifications of the mid-tower from its official website:

Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height: 542
Case Length: 556
Case Width: 250
Material: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Color: BLACK
Case Size: Mid-Tower
Case Window: Tempered Glass
Internal 3.5" Drive Bays: 2
Internal 2.5" Drive Bays: 6
Maximum CPU Cooler Height: 175mm
Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length: 450mm
Weight: 15.48kg
Case Expansion Slots: 8 Horizontal or 3 Vertical
Case Power Supply: ATX
Radiator Support - Top: 420mm, 360mm, 280mm, 240mm
Radiator Support - Front: 360mm, 280mm, 240mm
Radiator Support - Bottom: None
Radiator Support - Side: 360mm, 280mm, 240mm
Radiator Support - Rear: 140mm, 120mm
Fan Support - Top: 3x 120mm, 3x 140mm
Fan Support - Front: 3x 120mm, 3x 140mm, 2x 200mm
Fan Support - Bottom: 4x 120mm
Fan Support - Side: 3x 120mm, 3x 140mm
Fan Support - Rear: 1x 140mm, 1x 120mm
Front IO Motherboard Connections: 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB
Reverse Connector Motherboard Support: Yes
Included Fans: RS ARGB Series
Dust Filtration: Yes
Cable Routing Space: 42mm
RapidRoute Included: Yes
Left Side Panel: Tempered Glass
Right Side Panel: Steel
Vertical Mount Support: Supported (Riser Card Sold Separately)

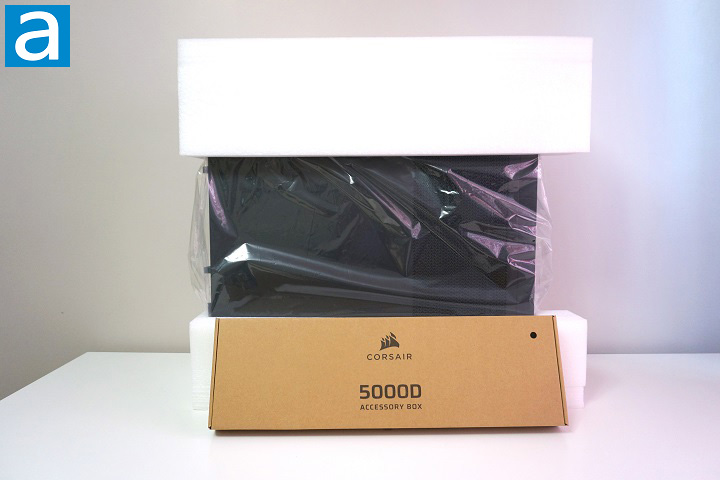

Upon opening the box, you will find the case wrapped in a large plastic bag. The bag is sturdy enough to protect the paint from scratches, and you could even keep it for reuse if you ever need to transport your computer elsewhere. An extra layer of protection is always welcome. The chassis itself is secured by two foam brackets, ensuring there is no direct contact with the shipping box. All of the accessories, including screws, brackets, and cables, come neatly packed in a dedicated cardboard box labeled Corsair 5000D Accessory Box. This feels noticeably more premium than the common approach of tossing accessories into a plastic bag tied inside the case.
