Page 4 – Installation and Conclusion

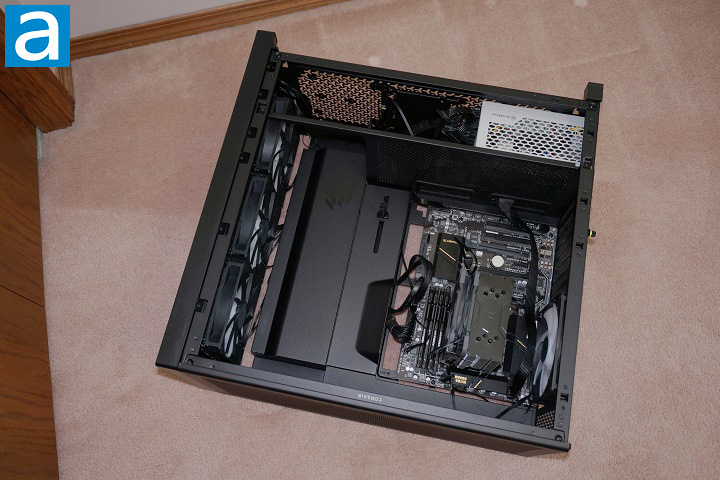

The build process with the Corsair Frame 5000D RS ARGB was extremely enjoyable. The layout is intuitive and follows a standard design, making it easy to work with from start to finish. I began by installing the power supply into the PSU chamber. For this build, I used the SilverStone Nightjar NJ700 700W. As a fanless unit, it relies heavily on case airflow, but thanks to the ventilation grille in the PSU chamber, sufficient airflow is provided to keep it running comfortably. Next, I installed a Thermaltake UX200 SE CPU cooler onto my Gigabyte GA-H170-D3HP motherboard. The motherboard tray cutout of the Frame 5000D RS ARGB aligned perfectly with the CPU socket, which made mounting the heatsink straightforward and hassle-free. I was also able to daisy-chain the ARGB connector of the CPU cooler’s fan with the included Corsair RS140 ARGB 140mm PWM fans, keeping the lighting setup neat and synchronized.

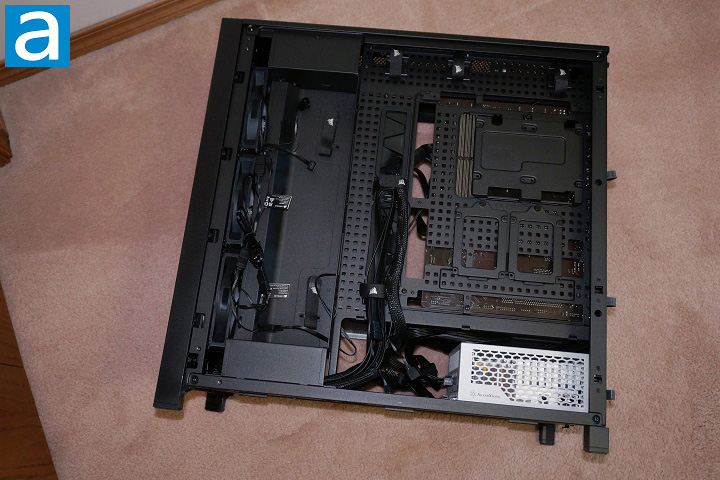

I did not have any hard drives to install for this build, as I was using a single M.2 PCIe NVMe SSD, the Western Digital Black SN750 NVMe SSD 500GB mounted directly on the motherboard. I also chose not to remove the motherboard tray, since the build itself was simple and straightforward. The rest of the installation process went very smoothly. With three 140mm fans already pre-installed behind the front dust filter, it was just a matter of plugging in the connectors to get them running. The large cutout beside the motherboard tray proved to be very handy as well. As shown in the photo above, the thick motherboard power cable fit easily through the opening, with plenty of space left for additional cables.

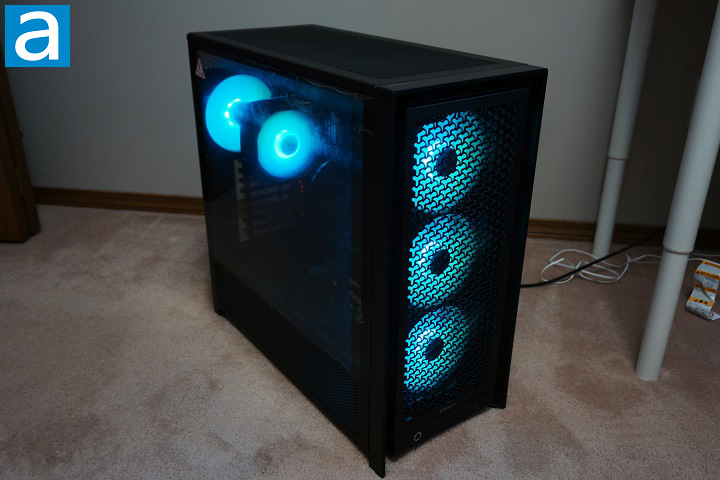

With everything installed, it was finally time to press the power switch. As shown in the photo above, the power button itself is the first thing to light up. Once powered on, the Corsair Frame 5000D RS ARGB delivers a striking ARGB LED lighting display. The wavy front mesh design allows the lighting effects to shine through with minimal obstruction, creating a clean and vibrant look. Personally, I place a lot of importance on noise levels in a PC build. In this setup, I had three fans running inside the case, and I was pleasantly surprised by how quiet the system was. Thanks in part to the thick tempered glass panel, which helps dampen sound. On a scale of 0 to 10, where 0 is completely silent and 10 is comparable to a jet taking off, I would rate this build at about 2.0/10 during normal operation. It is also worth noting that motherboard fan speed controls can reduce noise even further by lowering fan RPMs when the system is not under heavy load.
-----------------------------------------
After using the Corsair Frame 5000D RS ARGB for a while now, I noticed something interesting about this case, something I mentioned in the introduction of this review. Thanks to the integrated rear handle, using this case can almost feel like a workout for your fingers. On the one hand, the handle is very convenient, making it easy to move the case around with the help of both the front frame and the rear grip. On the other hand, once the system is fully loaded, I found it quite difficult to lift using only four fingers, which are the maximum the handle comfortably accommodates. It is nice to get a little finger workout, but I still hope Corsair considers a larger, more ergonomic handle in the future. Beyond that, the Corsair Frame 5000D RS ARGB is a premium mid-tower that strikes an excellent balance between style, usability, and performance. With four pre-installed ARGB PWM fans, strong airflow through its wavy mesh panels, and support for up to fourteen fans and large radiators, cooling performance is no doubt the highlight. Build quality is solid, with tight panel gaps, a clean matte black interior, and modular features like removable trays and covers that make assembly flexible and enjoyable. Modern touches such as four USB Type-A ports, USB Type-C port, and vertical GPU mounting support add practicality and future-proofing, while thoughtful cable management space and straps help keep builds neat. Aside from small drawbacks, like the lack of a dust filter under the top panel and mesh expansion slot covers that may let in more dust, the Frame 5000D RS ARGB remains an excellent case for users who want both aesthetics and functionality in one chassis. At around $200 USD at press time, I think the price is fair for what you get. The design, materials, and overall build quality are of a high standard, not to mention the nice little touches, like that rear handle, that make this case stand out.
Corsair provided this product to APH Networks for the purpose of evaluation.
APH Networks Review Focus Summary:
8/10 means Definitely a very good product with drawbacks that are not likely going to matter to the end user.
7/10 means Great product with many advantages and certain insignificant drawbacks, but should be considered before purchasing.
-- Final APH Networks Numeric Rating is 7.9/10
Please note that the APH Networks Numeric Rating system is based off our proprietary guidelines in the Review Focus, and should not be compared to other publications.
The Corsair Frame 5000D RS ARGB is a premium mid-tower that combines solid build quality, excellent airflow, modern connectivity, and thoughtful modular features into a stylish and functional chassis.
