Page 7 - Benchmark: PassMark PerformanceTest 10
About PassMark PerformanceTest 10
This Advanced Disk Test, which is part of PerformanceTest, measures the data transfer speed when reading or writing data to one or more disks. The speed that data can be transferred between memory and a hard disk drive is one of a system's most important performance aspects. There are quite a few factors which have a bearing on this speed and the Advanced Disk Drive Test allows the user to vary most of these factors and compare the results.
The test supports any drive that can be mounted under Windows. Including IDE drives, SCSI, RAID, USB key drives, SATA, networked shared drives and external drives.
Users have the ability to test multiple drives at the same time using multiple threads, and specify:
- The size of the test file used. Larger files mean that the system cache has less of an effect on the test types, which use caching (see below).
- The size of the data block used for each read or write request. Larger blocks mean less requests and can lead to an improvement in performance.
- The choice of four access methods - C/C++ API, Win32 API cached / uncached and raw disk access.
- Sequential or random access (seeking plus reading and writing)
- Synchronous and Asynchronous access
- The split between reading and writing
The results of all completed tests may be graphed using our custom graphing components.
From: Developer's Page

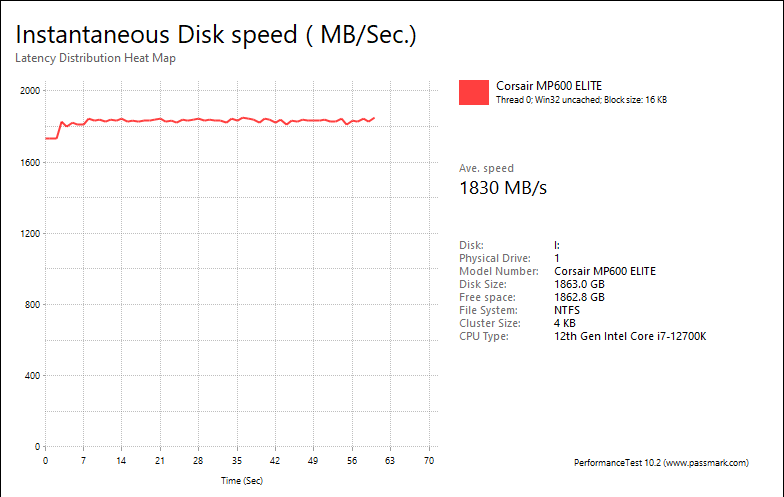

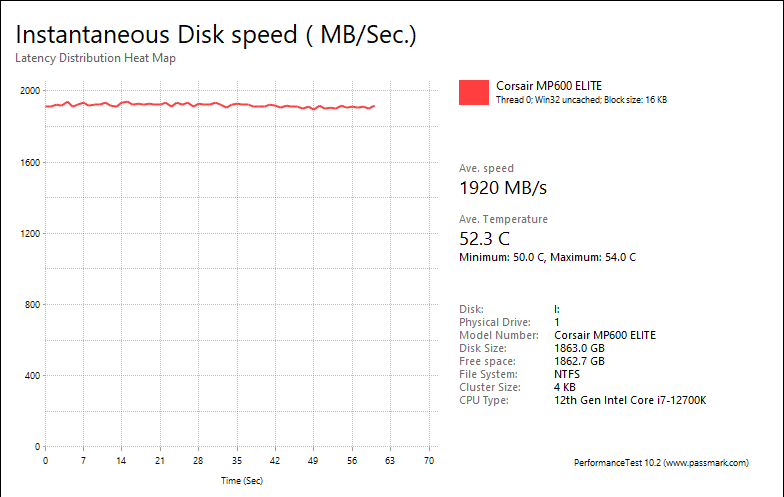

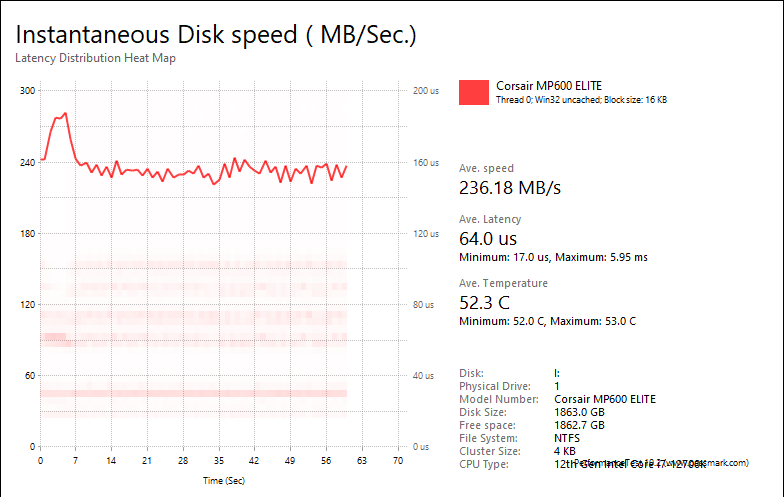

PassMark PerformanceTest 10's Advanced Disk Test, unlike HD Tune Pro 5.70, generates some awesome graphs right out of the box. It also provides valuable insight in simulating real world performance applications. To make things clear to you, the first graph simulates a database server, followed by a file server, web server, and workstation. Obviously, PassMark PerformanceTest 10 uses highly compressible data in most tests some controllers can really take advantage of. However, it also requires high IOPS capabilities for the best score. One thing clear is the Corsair MP600 Elite 2TB provided generally flat graphs, which is excellent if you are looking for consistent performance.
Overall, this PCIe 4.0 NVMe solid state drive's performance was about the same as the Crucial T500 2TB. With results of 273.68MB/s, 1830MB/s, 1920MB/s, 236.18MB/s, respectively, the MP600 Elite 2TB was within expectations for a mainstream drive. For reference, the Crucial T500 2TB was at 242.69MB/s, 1869MB/s, 1979MB/s, and 205.55MB/s, respectively. The budget mainstream Crucial P5 Plus 2TB came in at 235.11MB/s, 1773MB/s, 1808MB/s, and 173.78MB/s, while the basic budget P3 Plus 4TB posted results of 267.87MB/s, 1946MB/s, 2018MB/s, and 257.77MB/s, in the same order. The Corsair MP600 Core XT delivered 255.02MB/s, 1808MB/s, 1840MB/s, and 255.77MB/s, respectively. Meanwhile, the WD_BLACK SN770 1TB at 366.45MB/s, 2716MB/s, 2915MB/s, and 300.29MB/s, which to this day I still could not precisely explain why a DRAM-less SSD could perform so well other than some genius-level firmware optimizations.
