Page 4 - Benchmark: AIDA64 FPU
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 11 and Windows Server 2022.
From: Developer's Page

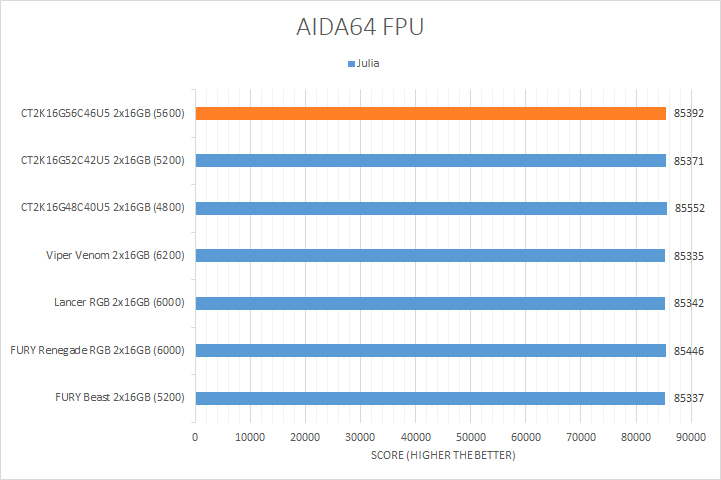

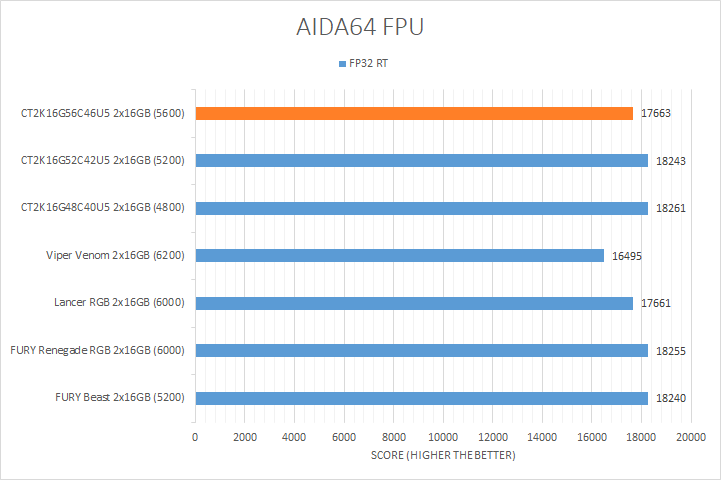

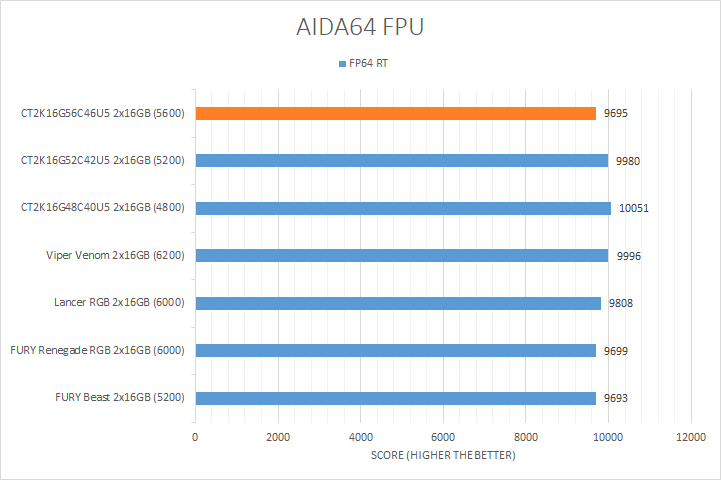

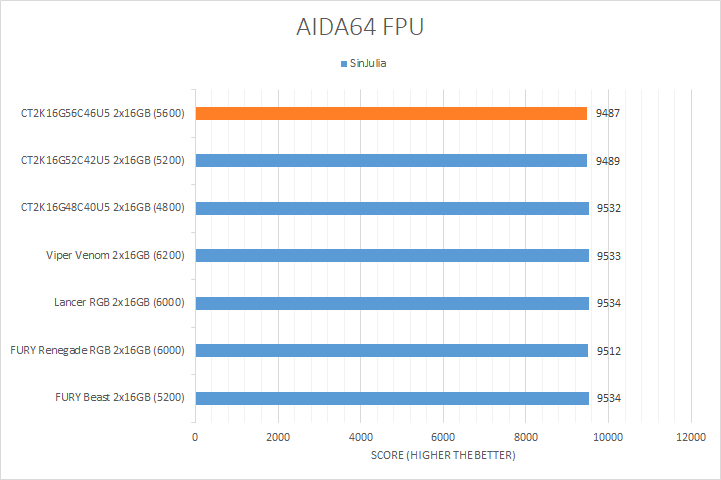

Our second set of AIDA64 tests, the FPU benchmarks, are often the most uneventful results, because they rarely provide much difference between memory kits and instead the results are more dependent on the processor. This is mostly true, as the first three tests show results with very little variance between the tested memory. However, it changes with the floating point 32 and 64 ray tracing tests, as we had more differences in the results. The Crucial CT2K16G56C46U5 DDR5-5600 2x16GB was in the middle of the results, although it was strangely faster than some higher transfer speed memory. In the FP64 RT test, the slower kits were favored more for some reason, although the range of results here was smaller. Even so, the numbers still are generally within the ballpark range of what you might expect from DDR5 memory.
1. Introduction, Packaging, Specifications
2. A Closer Look, Test System
3. Benchmark: AIDA64 CPU
4. Benchmark: AIDA64 FPU
5. Benchmark: AIDA64 Memory
6. Benchmark: PCMark 10
7. Benchmark: 3DMark
8. Benchmark: PassMark PerformanceTest 10
9. Benchmark: SuperPI 1M, Cinebench R23
10. Overclocking and Conclusion
