Page 4 - Benchmark: AIDA64 FPU
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 11 and Windows Server 2022.
From: Developer's Page
Usually, AIDA64's FPU benchmarks are the least exciting of all when writing a RAM review. This is because the way results are obtained is usually highly dependent on the tested processor, so much to an extent that the outcome is typically irrelevant to the speed or latencies of the installed memory modules.

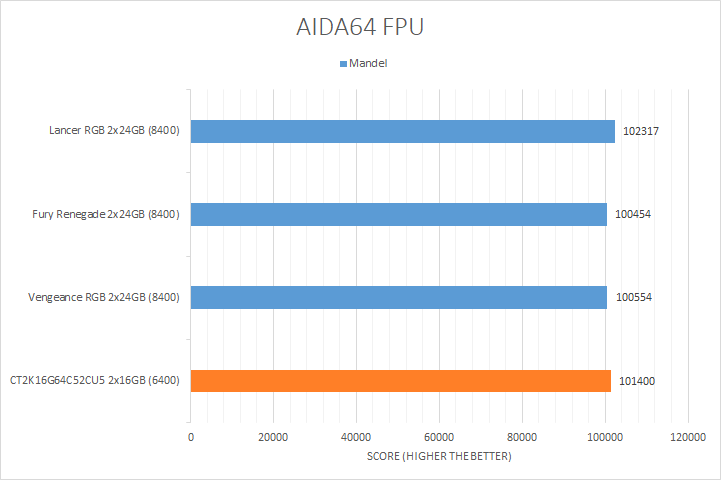

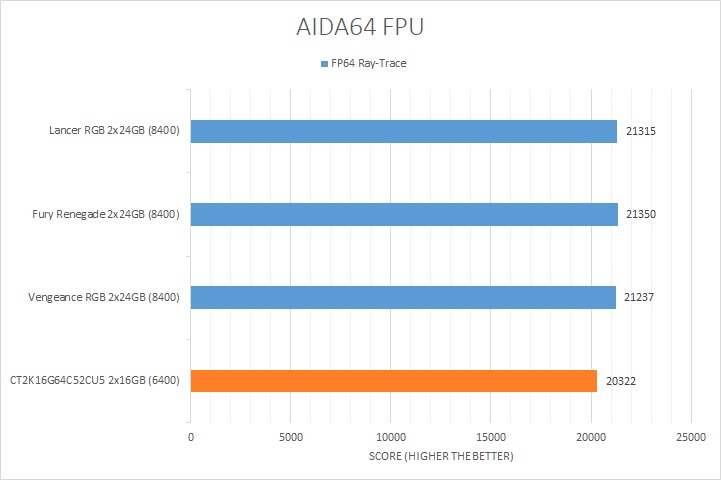

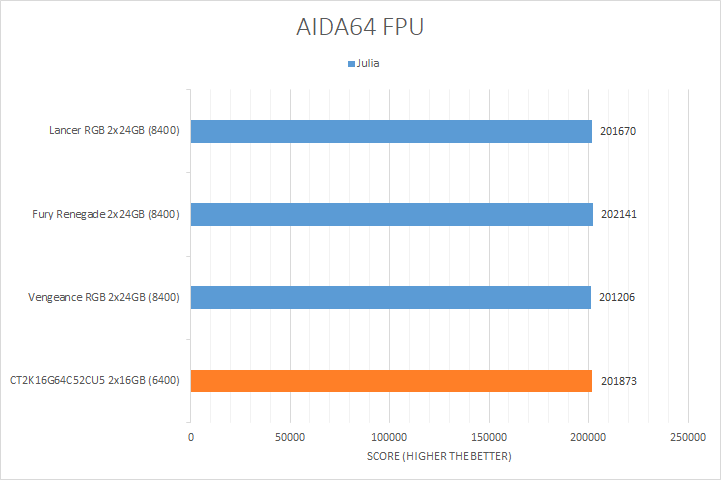

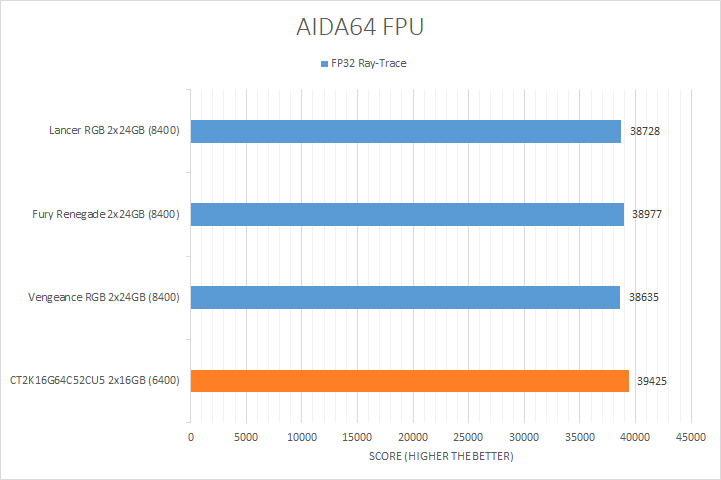

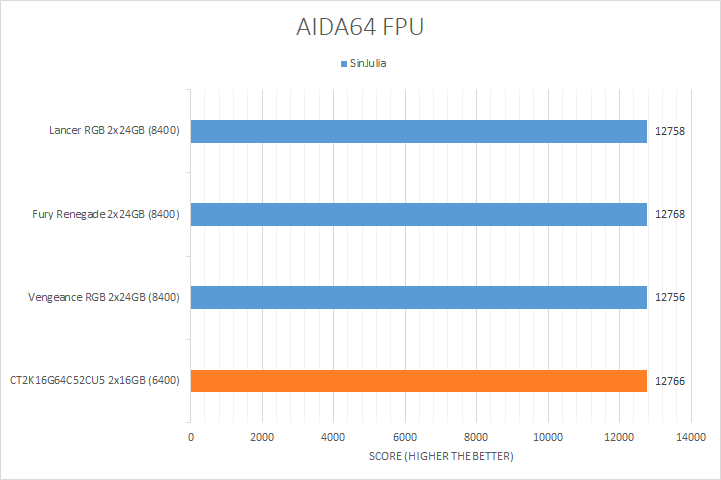

As you can see from our graphs above, all the results were within a few percent of each other. There were three results where the difference was more noticeable, particularly the Mandel, FP32 Ray Trace, and FP64 Ray Trace tests. However, there was little correlation with the memory bandwidth, as the DDR5-6400 Crucial led in the FP32 Ray Trace results, but fell behind the DDR5-8400 Corsair Vengeance, Kingston Fury Renegade, and XPG Lancer CUDIMM RGB kits in the FP64 Ray Trace benchmark. At the end of the day, they were almost all reasonably within the same ballpark as each other.
