Page 3 - Benchmark: AIDA64 Disk Benchmark
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 11 and Windows Server 2022.
From: Developer's Page

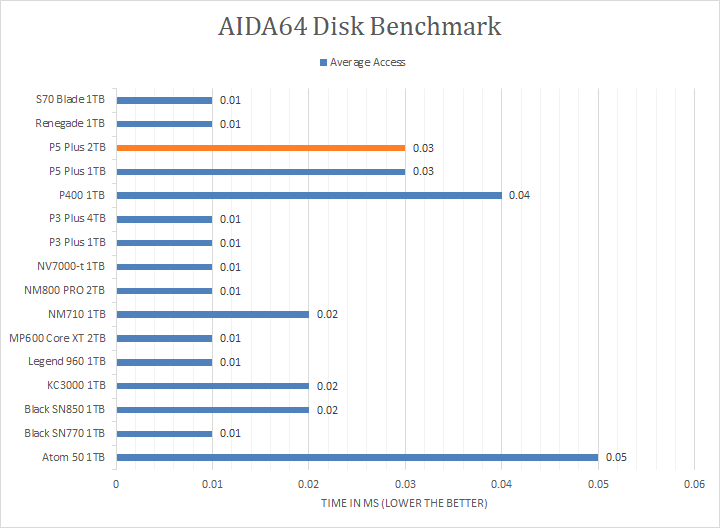

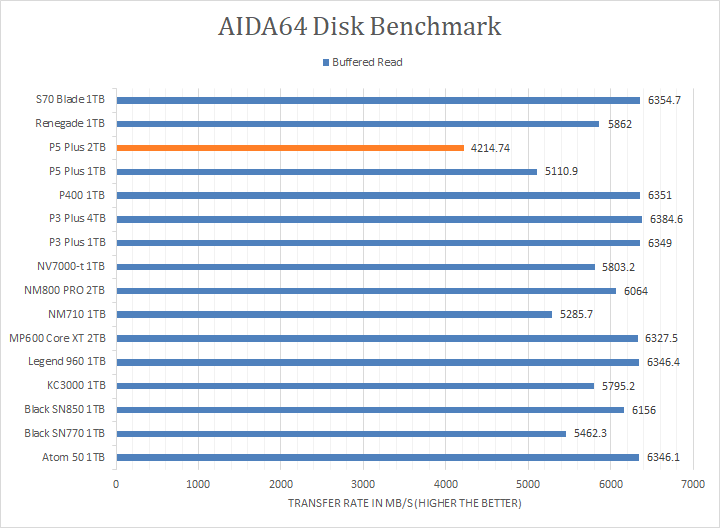

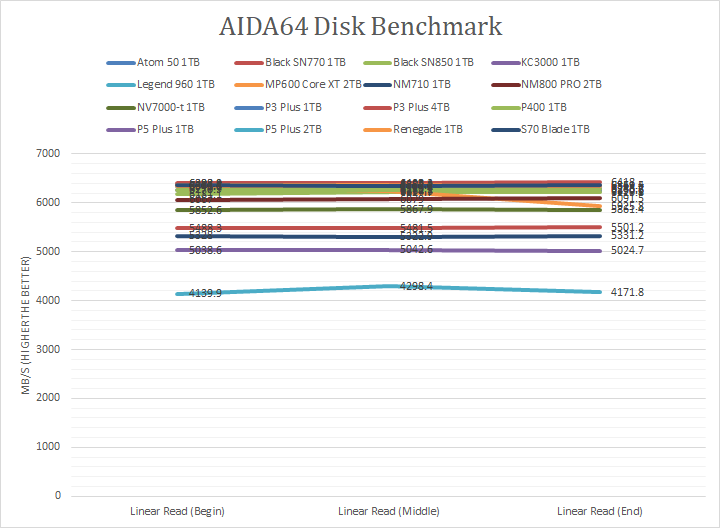

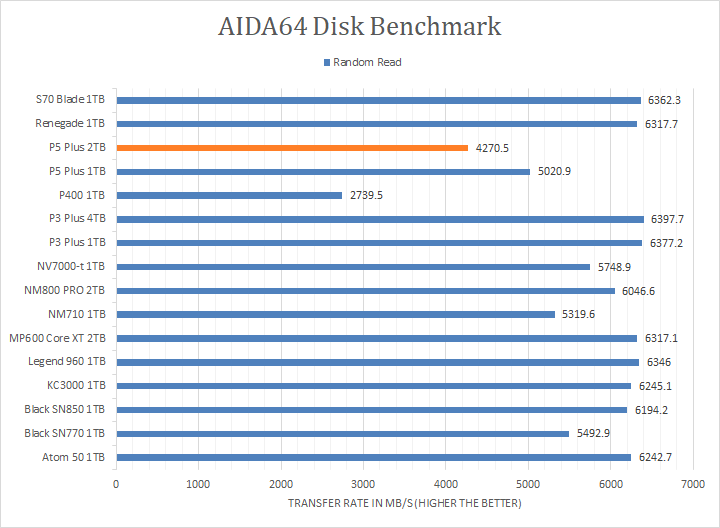

Since our SSD review benchmark results are presented in alphabetical order, first up on the list are results from one of our favorite benchmarking programs, AIDA64 Engineer. Version 6.92.6600, the latest release at press time, can be downloaded from our Downloads page. Just to note, AIDA64 Engineer is a full synthetic benchmark. Unlike full synthetic motor oil, this usually does not always carry a good connotation. While it is not a representation of real-life performance -- such as how fast Photoshop opens -- it does provide valuable insight into performance between different drives and different controllers. As you can see in our graphs above, the Crucial P5 Plus 2TB, unlike the 1TB variant, came in at the bottom or near the bottom in all the read tests, which was surprisingly low. The P5 Plus 2TB scored consistently around the 4203MB/s mark in the linear read segment, compared to 5035MB/s for the 1TB variant. The tested latency was very low with an average of 0.03ms. The comparison results against all the other drives can be seen in our graphs above.
