Gigabyte G1.Sniper Z87 Review (Page 11 of 12)

Page 11 - Onboard Sound (RMAA 6.3.0) Analysis

Like its predecessor, the Gigabyte G1.Sniper Z87 features Nichicon MUSE ES audio grade capacitors, which we have discussed on Page 3. The onboard audio is Creative's Sound Core 3D, which includes Creative's CA0138 audio processor. As you will see from the results below, Gigabyte is taking this very seriously, even on a mid-range motherboard. For our RMAA tests, I have set the output to 24-bit/48 kHz, which produced excellent results.

Test Information
Testing device: Speakers (Sound Blaster Recon3D)
Sampling mode: 24-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.3.0
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -0.1 dB / -0.1 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct

Frequency response

From 20 Hz to 20 kHz, dB: -0.00, +0.01
From 40 Hz to 15 kHz, dB: +0.00, -0.00

Noise level

RMS power, dB: -142.8, -142.8
RMS power (A-weighted), dB: -143.7, -143.6
Peak level, dB FS: -128.9, -132.3
DC offset, %: -0.0, -0.0

Dynamic range

Dynamic range, dB: +133.8, +133.8
Dynamic range (A-weighted), dB: +133.1, +133.1
DC offset, %: -0.00, -0.00

THD + Noise (at -3 dB FS)

THD, %: +0.0000, +0.0000
THD + Noise, %: +0.0000, +0.0000
THD + Noise (A-weighted), %: +0.0000, +0.0000

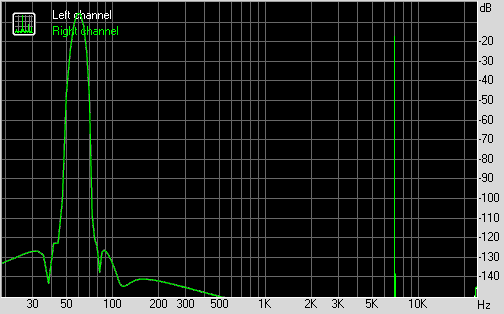

Intermodulation distortion

IMD + Noise, %: +0.0002, +0.0002
IMD + Noise (A-weighted), %: +0.0001, +0.0001

Stereo crosstalk

Crosstalk at 100 Hz, dB: -145, -46
Crosstalk at 1000 Hz, dB: -143, -143
Crosstalk at 10000 Hz, dB: -140, -141

IMD (swept tones)

IMD + Noise at 5000 Hz: 0.0000, 0.0000
IMD + Noise at 10000 Hz: 0.0000, 0.0000
IMD + Noise at 15000 Hz: 0.0000, 0.0000

Test Summary
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.00 - Excellent
Noise level, dB (A): -143.7 - Excellent
Dynamic range, dB (A): 133.1 - Excellent
THD, %: 0.0000 - Excellent
THD + Noise, dB (A): -127.6 - Excellent
IMD + Noise, %: 0.0002 - Excellent
Stereo crosstalk, dB: -143.9 - Excellent
IMD at 10 kHz, %: 0.0000 - Excellent
General performance - Excellent
