Page 3 - Benchmark: AIDA64 Disk Benchmark
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 11 and Windows Server 2022.
From: Developer's Page
Our SSD review benchmark results are presented in alphabetical order, so it is understandable the first on the list are results from one of our favorite benchmarking programs, AIDA64 Engineer. Just to note, AIDA64 Engineer is a full synthetic benchmark. This means it is not necessarily a direct representation of real-life performance, such as how fast applications start or how fast it takes to start up your operating system. However, it does provide valuable insight into the performance between different drives and different controllers.

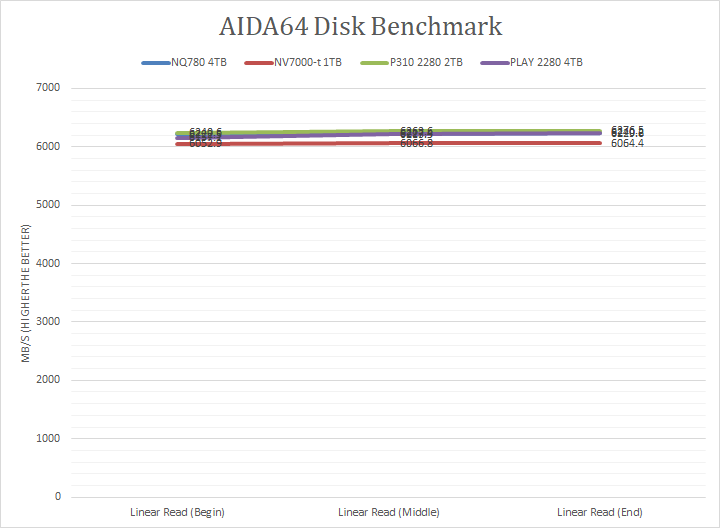

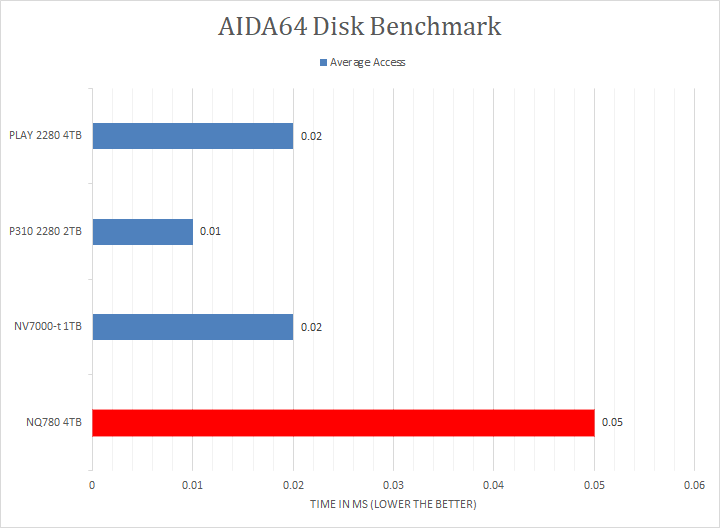

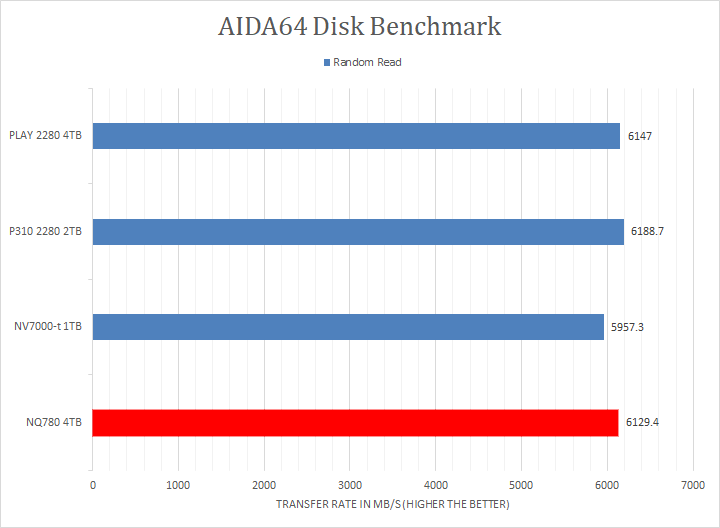

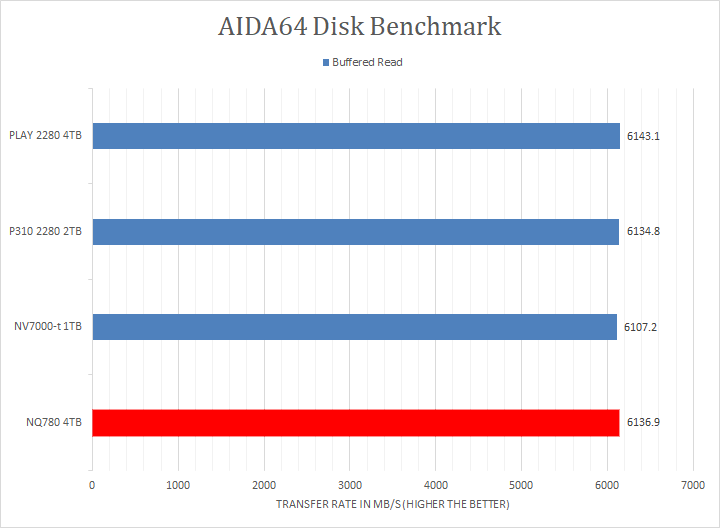

From the graphs above, the Lexar NQ780 4TB ended in the middle of the pack. Across the four tests, it ranked right in the middle of the tested drives. In the linear test, it was, on average, the second fastest SSD, which includes a set of TLC- and QLC-based SSDs. The average results continued with the random read and buffered read tests, ranking second and third in the results, respectively. These tests were validated with several runs to ensure accuracy. Oddly enough, the NQ780 4TB access time was 0.05ms, which is the highest latency I have ever observed for any M.2 SSD.
