Patriot P200 512GB Review (Page 5 of 11)

Page 5 - Benchmark: Crystal Disk Mark 6.0

About Crystal Disk Mark

- Measure sequential reads/writes speed
- Measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed
- Select test data (Random, 0Fill, 1Fill)

From: Developer's Page

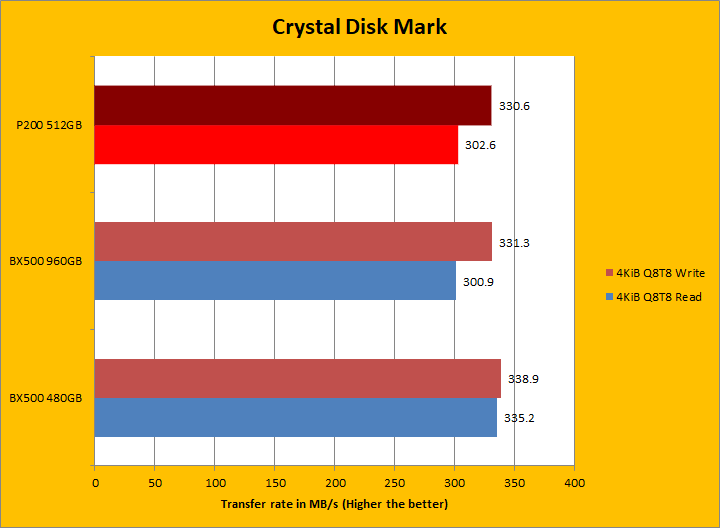

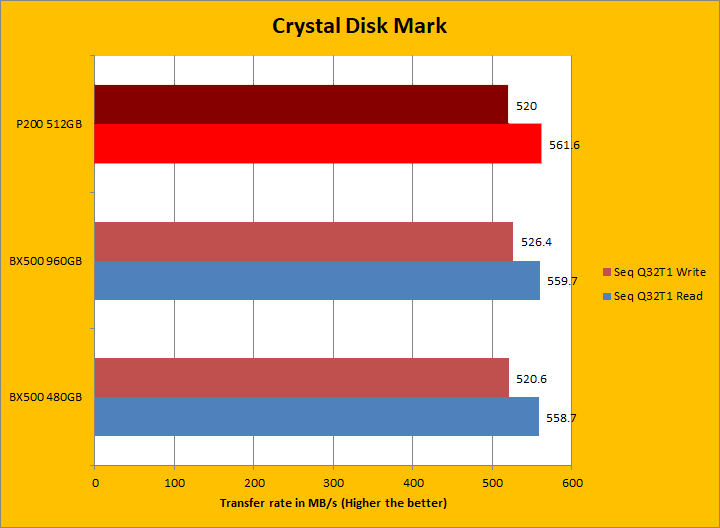

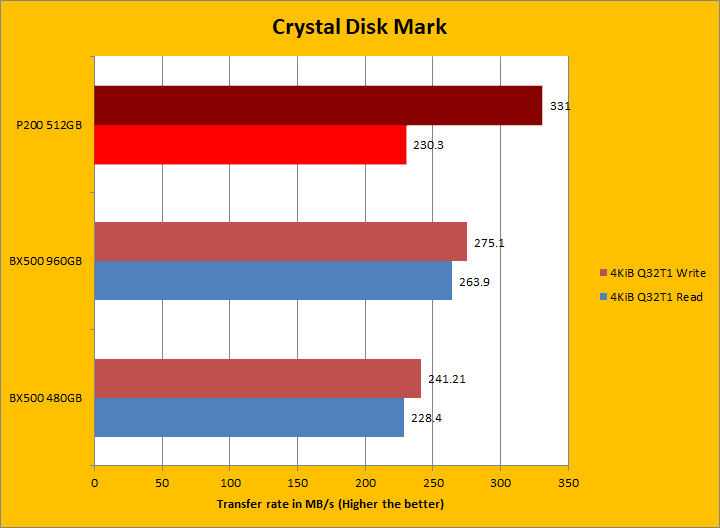

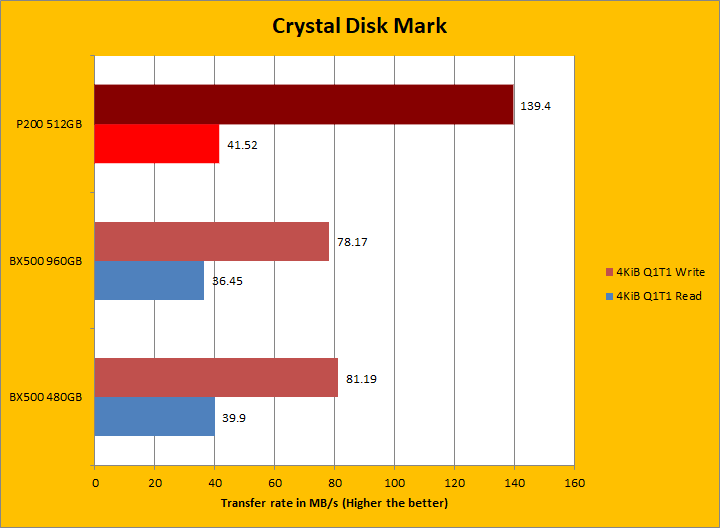

Crystal Disk Mark 6.0 is our third test. Just a bit of background information; higher capacity drives tend to perform a little better in these tests. The ability of a controller and flash memory to deliver high IOPS will provide huge benefits to the score as well. We only recently swapped over to the sixth version of Crystal Disk Mark, so we do not have all of the drives tested here. With the drives we do have, compared to the two BX500 drives, we can see the Patriot P200 512GB compared similarly. Its sequential tests were similar to the other two drives. Moving to the 4K tests, the Patriot P200 kept up with both of the Crucial drives, and actually leapt ahead for the 32-queue depth in terms of write. The single queue and thread test also showed favorable numbers for the P200 512GB, which was good to see.
