Page 5 - Benchmark: AIDA64 Memory
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature, and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 10 and Windows Server 2019.
From: Developer's Page

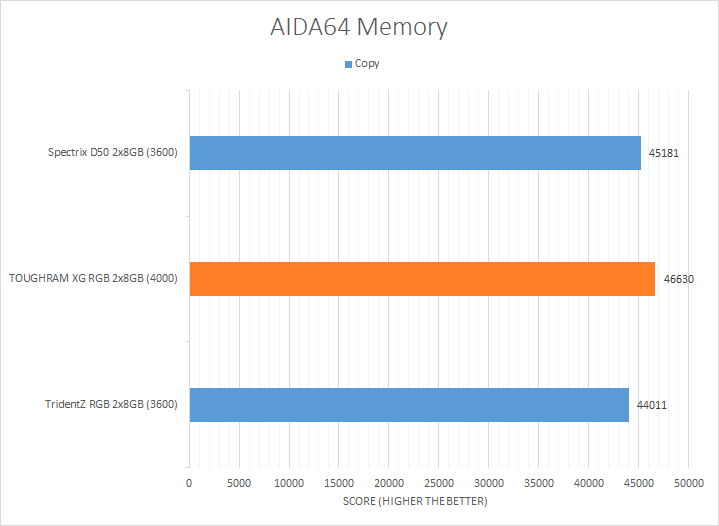

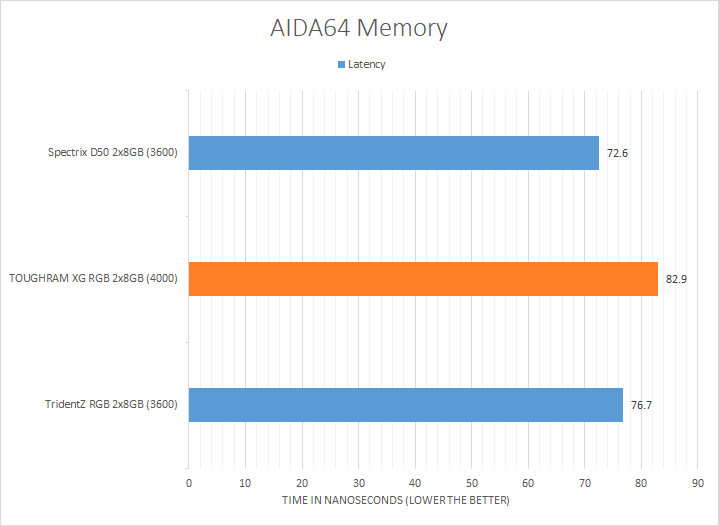

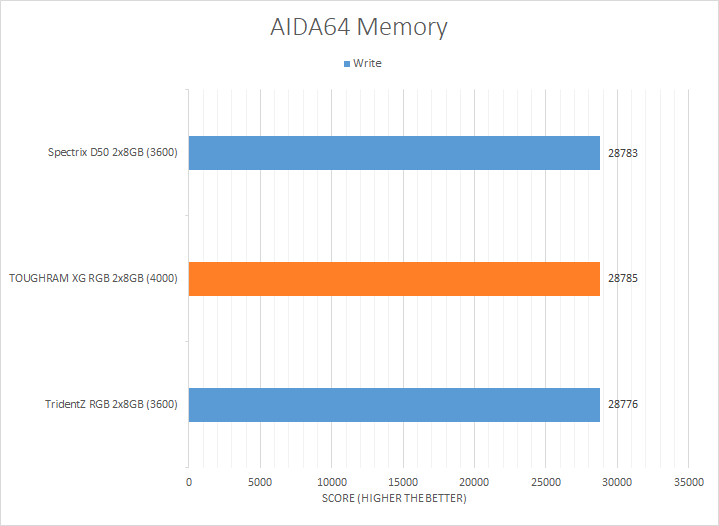

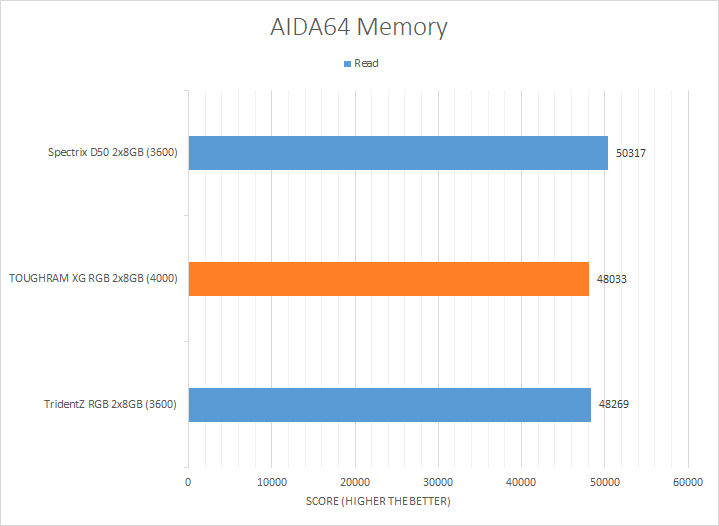

Next up for benchmarking comparisons are AIDA64's synthetic memory tests. These tests are much better for benchmarking memory and the results usually reflect the difference in latencies and bandwidth. Traditionally, higher memory bandwidth RAM kits are favored on these tests, with memory bandwidth having more influence than the timings. The Thermaltake TOUGHRAM XG RGB DDR4-4000 2x8GB took the lead when it came to copying and writing, although just barely passing the XPG Spectrix D50 DDR4-3600 2x8GB with the write results. However, the read results were underwhelming with the TOUGHRAM XG RGB falling behind both memory kits. The high latencies also came into play here with the TOUGHRAM XG RGB having the slowest result in the latency benchmark.
