Western Digital Red WD140EFFX 14TB Review (Page 7 of 11)

Page 7 - Benchmark: HD Tune Pro 5.70

About HD Tune Pro 5.70

HD Tune is a hard disk utility with many functions. It can be used to measure the drive's performance, scan for errors, check the health status (S.M.A.R.T.), securely erase all data and much more.

From: Developer's Page

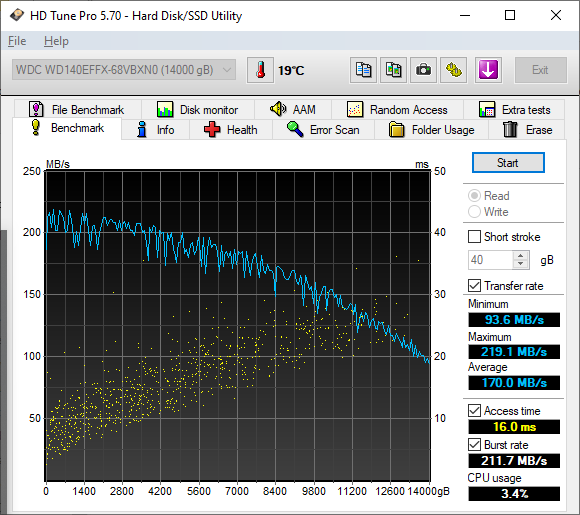

Unfortunately, HD Tune does not generate any fancy independent graph outputs in particular, so I just took a screenshot of the program. Somewhat unlike our HD Tach results on the previous page, the line was standard fare for a hard drive -- faster near the beginning, and slowly drops off as we move away from the center of the platter. It differed slightly in magnitude than the other program as well -- probably due to testing algorithms used -- but its performance characteristics is really identical in practice. Other than that, the results were excellent across the range for a drive of this caliber; peaking at 219.1MB/s and holding a minimum of 93.6MB/s. These results were slightly better than the Western Digital Red WD100EFAX 10TB, but not significantly. Do keep in mind the discussion we had on the previous page, as it still applies here.
