Our review unit of the Fractal Design Ion+ 2 Platinum 860W arrived in a medium-sized brown corrugated cardboard box from the company's American headquarters in Plano, Texas, USA. Plano is a city within the Dallas–Fort Worth metroplex. Using FedEx Ground, our Ion+ 2 Platinum 860W arrived in very good condition to us here in Calgary, Alberta, Canada for our review today.
Inside the shipping box is the Fractal Design Ion+ 2 Platinum 860W's retail box. This is the second time I am reviewing a power supply from the company, and the box design has been updated to fit the company's latest design theme. The front is very clean in an Apple-like manner, featuring a black background and a photo of the power supply occupying a prominent spot. At the top is Fractal Design's logo, product name, and description. An 80 Plus Platinum badge can be found at the bottom right corner. The remaining sides of the box have feature highlights and specifications.
Speaking of which, before we move on, let us take a look at the specifications of the Fractal Design Ion+ 2 Platinum 860W, as obtained from the manufacturer's website:
80PLUS certification: Platinum
Modular cables: Fully modular
Fan type: 140 mm FDB bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load): 50°C
Semi-passive operation: Yes, user selectable (Zero RPM)
Life expectancy: 100,000 hours
PSU specification compliance: ATX12V 2.52; EPS12V 2.92
Cable type: Modular 24-pin cable: Black UltraFlex wires in braided sleeve Other modular cables: Flat black UltraFlex wires
Input voltage: 100-240V C
Input frequency: 50-60 Hz
Input current: 10A/5A
Protection features: Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
Standby efficiency: ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
Sleep state compliance: C6/C7
Approvals & certifications: CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Warranty: 10 Years

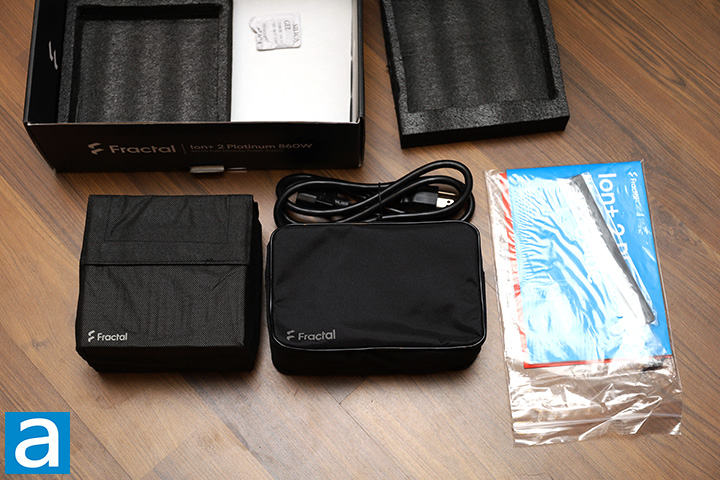

The Fractal Design Ion+ 2 Platinum 860W's retail packaging can be opened by a flap attached at the bottom. Upon opening the box, you will find everything is neatly organized. The power supply is placed inside a nylon bag and securely clipped in by two foam brackets. Cables are located inside a nylon zipper bag that looks like a big pencil case. A plastic resealable bag contains everything else. Out of the box, you will receive the Ion+ 2 Platinum 860W power supply itself, modular cables, AC power cable, four screws, user guide, and three Velcro straps. The bundle is simple and reasonable.
