Today's unit of the Cooler Master MWE 650 White V2 650W arrived from Cooler Master's offices in Brea, California. FedEx and their Ground service delivered this corrugated cardboard box arrived in decent condition with no real issues to speak of in terms of package quality. In addition to this mouse, we received quite a few other Cooler Master products, including the Cooler Master MM831 I reviewed last week. Otherwise, Cooler Master also packaged some packing paper with these products to prevent any damage or dents to the items inside.

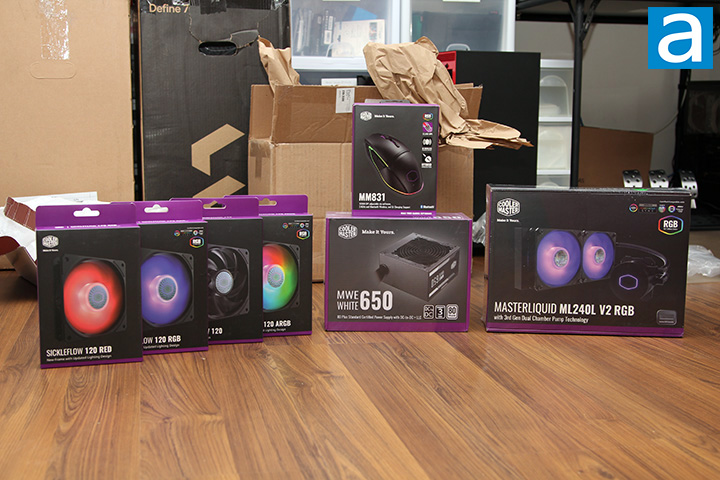

As you can see from the photo above, Cooler Master has sent us a whole lot of different products with our Cooler Master MWE 650 White V2 650W. Despite existing in different product lineups, all of them follow the same design language when it comes to the packaging. The typical colors of Cooler Master are shown here with the slate gray and purple combination. As for our power supply, the PSU is shown on the front with the product name on the bottom left, while the top shows the manufacturer logo and tagline. At the bottom, we have several primary features for the MWE 650 White V2. This includes a DC-to-DC circuit design, a three years of warranty coverage, and an 80 Plus certification. We will explore these features and more later on.
Before we move on, I have grabbed the specifications from the manufacturer's website for your viewing pleasure:
ATX VERSION: ATX 12V V2.52
PFC: Active PFC
INPUT VOLTAGE: 100-240V
INPUT CURRENT: 10-5A
INPUT FREQUENCY: 50-60Hz
DIMENSIONS (L X W X H): 140 x 150 x 86 mm
FAN SIZE: 120mm
FAN BEARING: HDB
FAN SPEED: 2400 RPM
NOISE LEVEL @ 20%: 12.82 dBA
NOISE LEVEL @ 50%: 20.4 dBA
NOISE LEVEL @ 100%: 41.2 dBA
EFFICIENCY: 80% Typically Load
80 PLUS RATING: 80 PLUS Standard
ERP 2014 LOT 3: Yes
OPERATING TEMPERATURE: 40°C
POWER GOOD SIGNAL: 100-500ms
HOLD UP TIME: >14ms at 100% Full Load@230Vac
MTBF: >100,000 Hours
PROTECTIONS: OVP, OPP, OTP, SCP, UVP
REGULATORY: CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC
ATX 24-PIN CONNECTORS: 1
EPS 4+4 PIN CONNECTORS: 1
EPS 8 PIN CONNECTOR: 1
SATA CONNECTORS: 6
PERIPHERAL 4-PIN CONNECTORS: 3
PCI-E 6+2 PIN CONNECTORS: 4
80 PLUS: Standard
MODULAR: Non Modular

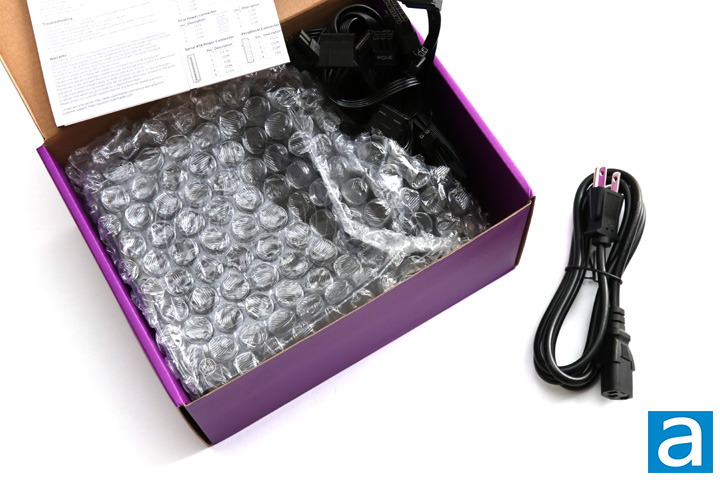

Out of the box, we have the Cooler Master MWE 650 White V2 650W contained in a massive bubble-wrap bag to prevent damage to the power supply. As this is a non-modular power supply, the bundle of cables is held with a large twist tie and wrapped together. On the side, we have a few pieces of documentations. We also have a standard AC power cable. Finally, a small bag of screws is included to help you mount the Cooler Master MWE 650 White V2 650W.
