ADATA XPG SX8200 Pro 512GB Review (Page 5 of 11)

Page 5 - Benchmark: Crystal Disk Mark

About Crystal Disk Mark

- Measure sequential reads/writes speed
- Measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed
- Select test data (Random, 0Fill, 1Fill)

From: Developer's Page

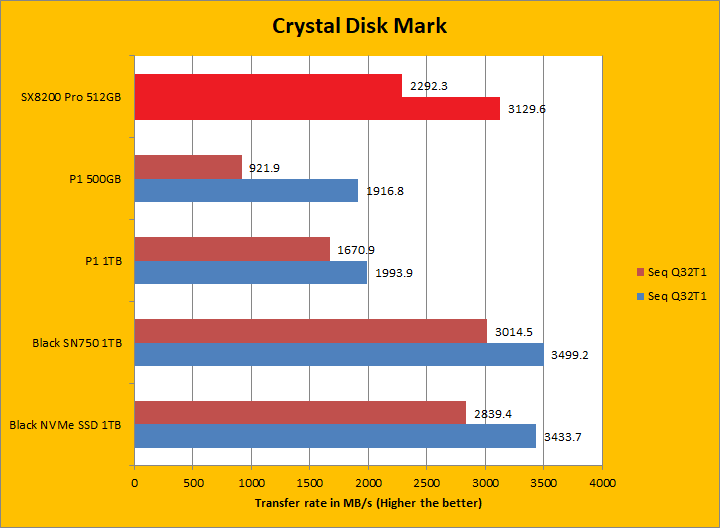

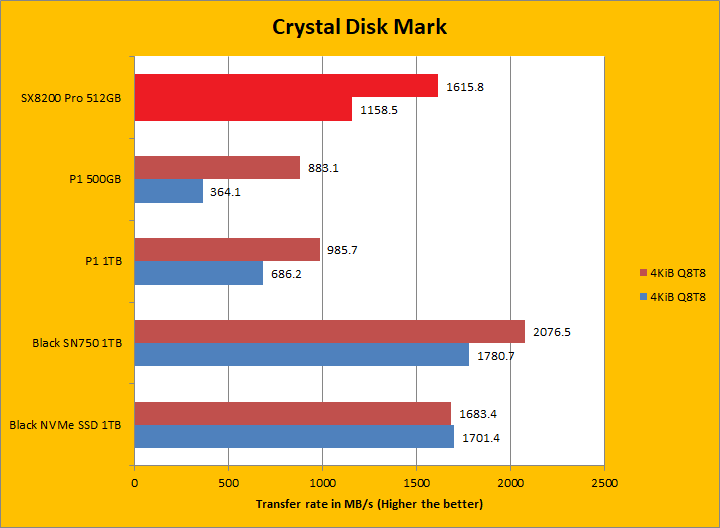

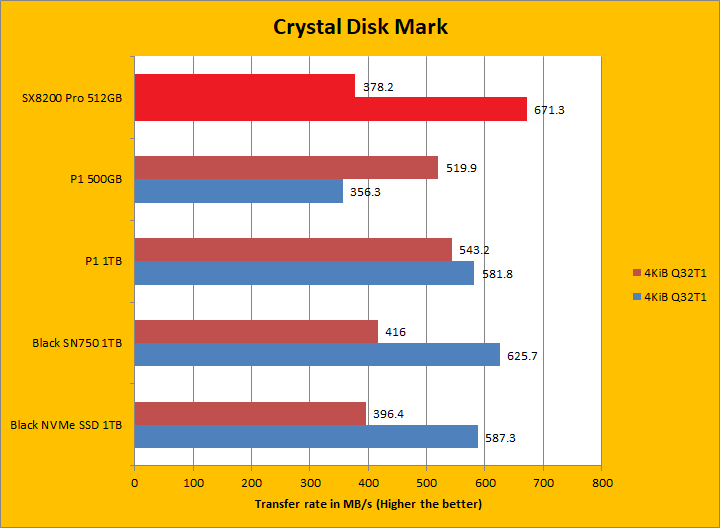

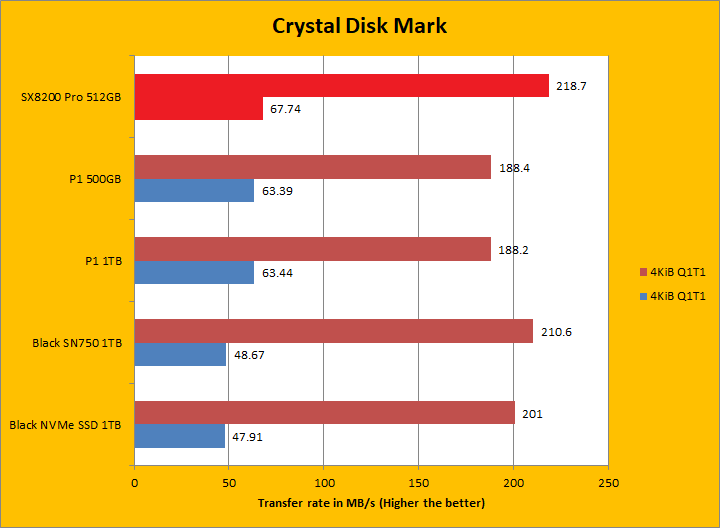

Crystal Disk Mark 6.0 is in the spotlight. Just a bit of background information; higher capacity drives tend to perform a little better in these tests. The ability of a controller and flash memory to deliver high IOPS will provide huge benefits to the score as well. The ADATA XPG SX8200 Pro 512GB is rated at up to an impressive 390,000 IOPS read and 380,000 IOPS write. Looking at the read and write results of all four sections, the XPG SX8200 Pro came in behind the more expensive Black NVMe SSDs in the sequential, 4KiB Q8T8, and 4KiB Q32T1 write tests, but took first place in the 4KiB Q1T1 tests. When it came to read, the story was similar. It came in third in the sequential and 4KiB Q8T8 tests, but ranked first in the 4KiB Q32T1 and 4KiB Q1T1 tests. I will let you make your own comparisons in our list of SSDs in the graphs above.
