Page 10 - Onboard Sound Frequency Analysis
ASUS promises solid audio performance with the ProArt B660-Creator D4 motherboard. It comes with a dedicated audio zone electrically separated from the rest of the components to reduce electrical noise. This mainstream performance model uses a Realtek 7.1 24-bit/192 kHz audio codec. Further sound quality optimization is made with a power pre-regulator, de-pop circuit, audio-grade capacitors, and audio shielding. To see how it performs, we fired up RightMark Audio Analyzer for the answer, and here is the full report.
Test Information:
Testing device: [MME] Speakers (Realtek(R) Audio)
Sampling mode: 24-bit, 48 kHz
Interface: MME
Testing chain: External loopback (line-out - line-in)
RMAA Version: 6.4.5
20 Hz - 20 kHz filter: ON
Normalize amplitude: ON
Level change: -1.2 dB / -1.2 dB
Mono mode: OFF
Calibration signal, Hz: 1000
Polarity: correct/correct
Frequency response
From 20 Hz to 20 kHz, dB, -0.09, +0.00; -0.05, +0.05
From 40 Hz to 15 kHz, dB, -0.02, +0.00; +0.03, +0.05

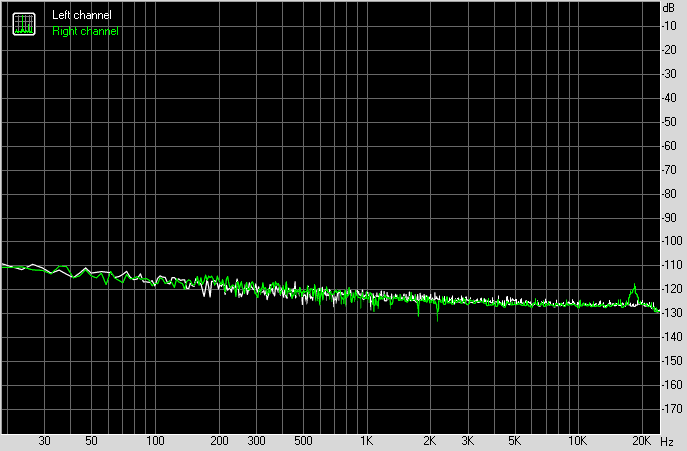

Noise level
RMS power, dB: -91.4, -91.0
RMS power (A-weighted), dB: -92.6, -92.9
Peak level, dB FS: -69.7, -69.5
DC offset, %: +0.0, +0.0

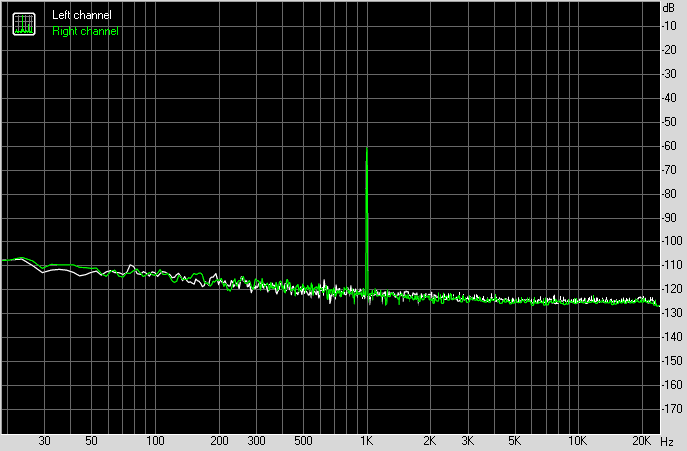

Dynamic range
Dynamic range, dB: +91.3, +91.7
Dynamic range (A-weighted), dB: +92.5, +93.1
DC offset, %: +0.00, -0.00

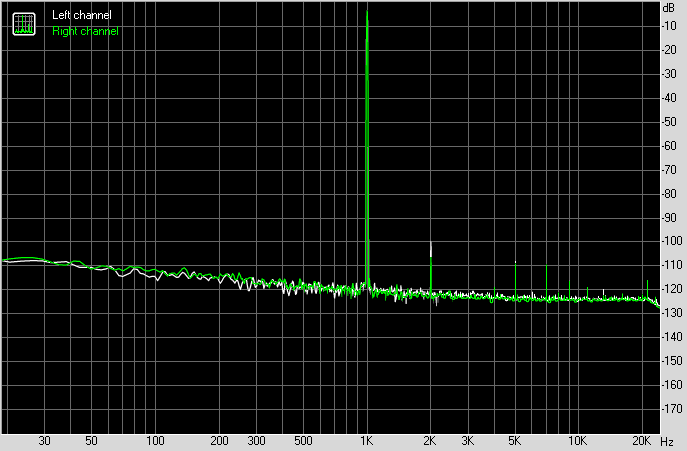

THD + Noise (at -3 dB FS)
THD, %: 0.00180, 0.00117
THD + Noise, %: 0.00591, 0.00570
THD + Noise (A-weighted), %: 0.00541, 0.00490

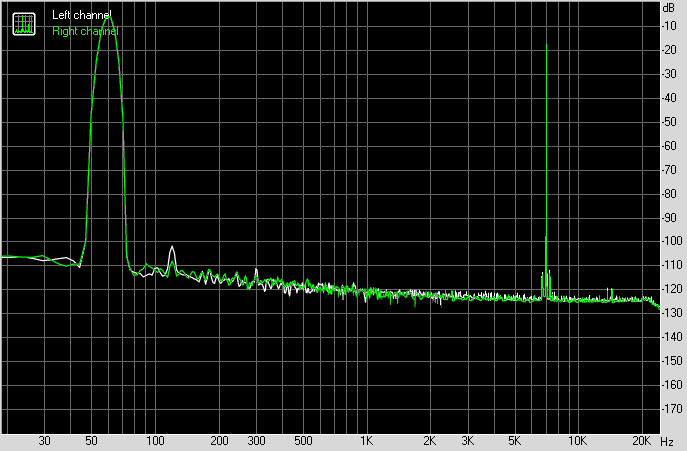

Intermodulation distortion
IMD + Noise, %: 0.00709, 0.00675
IMD + Noise (A-weighted), %: 0.00621, 0.00571
Stereo crosstalk
Crosstalk at 100 Hz, dB: -81, -84
Crosstalk at 1000 Hz, dB: -88, -89
Crosstalk at 10000 Hz, dB: -75, -75

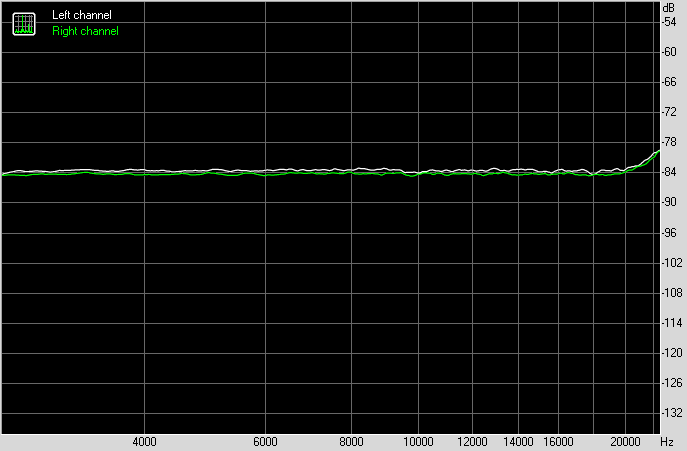

IMD (swept tones)
IMD + Noise at 5000 Hz: 0.00675, 0.00630
IMD + Noise at 10000 Hz: 0.00631, 0.00610
IMD + Noise at 15000 Hz: 0.00646, 0.00609
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.02 - Excellent
Noise level, dB (A): -92.7 - Very good
Dynamic range, dB (A): 92.8 - Very good
THD, %: 0.00149 - Excellent
THD + Noise, dB (A): -85.8 - Good
IMD + Noise, %: 0.00692 - Excellent
Stereo crosstalk, dB: -89.4 - Excellent
IMD at 10 kHz, %: 0.00633 - Excellent
General performance: Very good
