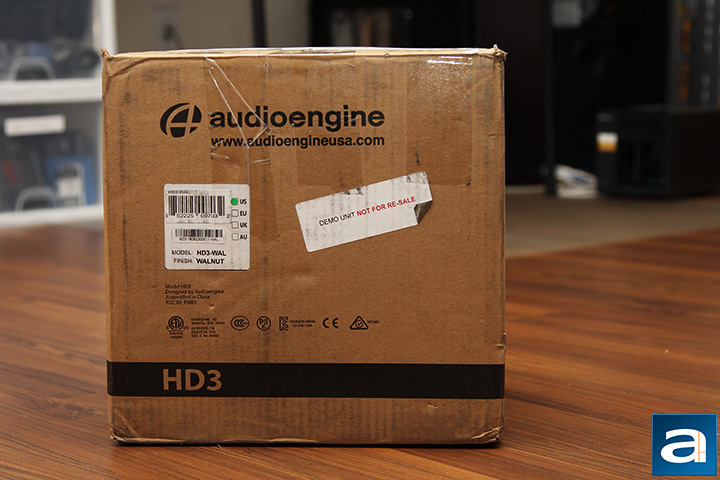

Our review unit of the Audioengine HD3 came in medium sized, brown corrugated cardboard box from Atlantia, a large national distributor of technology products in Vancouver, British Columbia who handles Audioengine's account here in Canada. According to the shipping box, our particular unit was previously a demo unit, which may explain why everything appeared kind of beat up. Using Purolator Ground, everything arrived in reasonable condition for our review today. I think the condition of the box was, by no means, the fault of the carrier. After dropping by the local Purolator shipping center here in Calgary, Alberta, Canada on the way home after receiving the delivery notice to pick it up, I cracked open the box, and got straight to work.

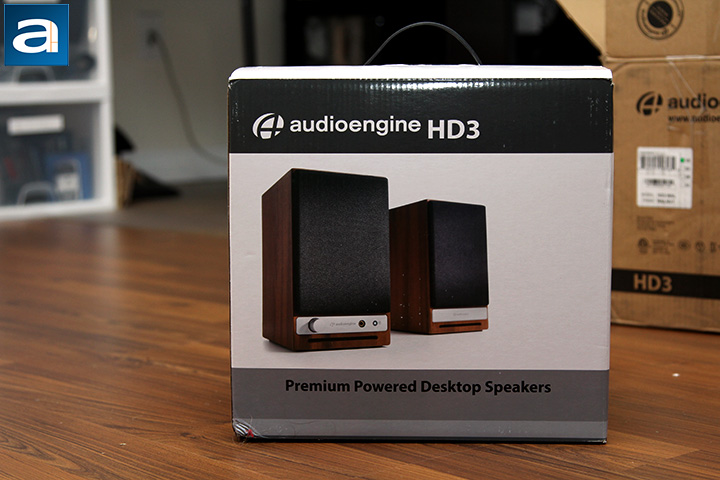

Unlike its bigger brother, the HD6, our review unit of the Audioengine HD3 came in actual retail packaging. I recall being very excited to get my hands on the A2+ nearly three years ago, and it is no different today. Just like it was back in 2014, I had to go back several times to look at the retail box. As I was so focused on the speakers themselves, I simply could not remember how the retail box looked like. From our photo above, Audioengine keeps the packaging simple, just like the speakers. All you will get is the branding with model at the top, a photo of the speakers in the middle, and a line that describes the product at the bottom. That is it. On the other side, you will get the exact same thing. Stuff like its color and specified region is found on a label.
Before we move on, let us take a look at the specifications of the Audioengine HD3, as obtained from the manufacturer's website:
General specifications
Type: 2.0 powered multimedia speaker system
Amplifier type: Dual analog class A/B monolithic
Power output: 60W peak power total (15W RMS / 30W peak per channel), AES
Drivers: 2.75" Kevlar woofers, 3/4” silk dome tweeters
Inputs: 3.5mm stereo mini-jack, stereo RCA, USB, Bluetooth
Outputs: RCA variable line-out, 3.5mm mini-jack headphone out
Mains voltages: 110-240V 50/60Hz auto-switching
SNR: 95dB (typical A-weighted)
THD+N: <0.05% at all power settings
Crosstalk: <50dB
Frequency response: 65Hz-22kHz ±2.0dB
Freq. response w/bass reduction switch selected: 100Hz-22kHz ±2.0dB (-5dB down)
Input impedance: 5K ohms unbalanced
Headphone amp specifications
Headphone amp type: OPA2134
Full-scale headphone output level: 2.0V RMS
Output impedance: 2 ohms
Recommended headphone impedance range: 10 ohms to 10K ohms
Bluetooth specifications
Internal D/A converter: PCM 5102
Input bit depth: 24-bits, upsampled
Bluetooth receiver type: Bluetooth 4.0 audio
Supported codecs: aptX, AAC, SBC
Wireless operation range: Up to 100ft (30m) typical
Input data rate: Determined by Bluetooth
Wireless latency: ~30 milliseconds (ms)
USB specifications
Connector type: Micro-USB
USB device class: USB 1.1 or above
Internal D/A converter: PCM 5102
Input bit depth: 24-bits, upsampled
Input data rate: 44.1KHz/48KHz
Protection: Output current limiting, thermal over-temperature, power on/off transient protection
Dimensions (each): 7”(H) x 4.25”(W) x 5.5”(D)
Weight (LEFT speaker): 1.8Kg/4lbs
Weight (RIGHT speaker): 1.5Kg/3.4lbs
Shipping weight: 4.5kg/10lbs per pair
Shipping box dimensions: 11.6 (29.5cm)H x 11.75 (30cm)L x 8.8(22.5cm)W
Materials and construction:
- 18mm thick MDF cabinets with real wood veneer
- 3/4" (20mm) silk dome tweeters with neodymium magnets
- 2.75" Kevlar woofers with advanced voice coils
Power consumption
Idle: 10W
Mute: 6W
Sleep: 4W
Environmental requirements
Operating temperature: 32° to 95°F
Non-operating temperature: -4° to 113°F
Relative humidity: 5% to 95% non-condensing

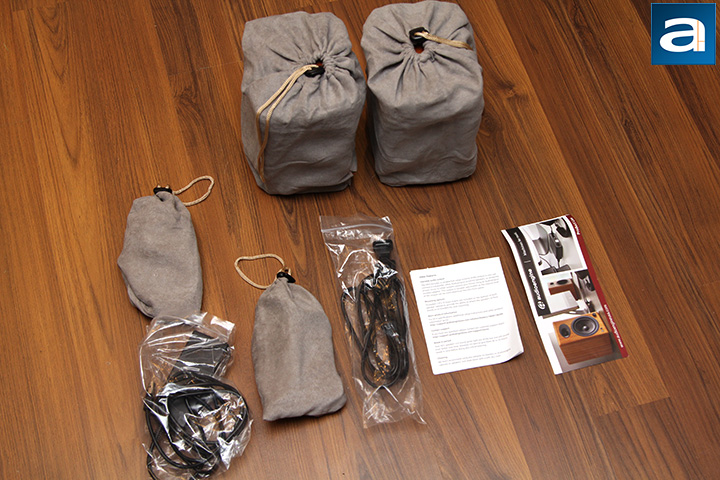

Out of the box, you will receive everything you need to get you started. In addition to the Styrofoam brackets, you will find both speakers and cables all come in their separate reusable microfiber drawstring bag. I think the way a product is packaged is a statement in itself to the end user, and my experience with stuff from Audioengine in the past -- namely, the A2+, B2, and HD6 -- is the company makes its products with no expenses spared. We will dig into that more in the hardware inspection on the next page, but for now, here is a list of what you will receive in addition to the Audioengine HD3 speakers itself:
- Antenna
- Speaker wire (16AWG), 2 meters (~6.5 feet)
- Power supply
- AC power cable
- Mini-jack audio cable, 1.5 meters (~5 feet)
- USB cable, 1.5 meters (~5 feet)
- Microfiber speaker bags
- Microfiber cable bag
- Microfiber power supply bag
- Quickstart guide
- Product line brochure
