Page 4 - 16-bit/44.1 kHz Frequency Analysis
Frequency response
From 20 Hz to 20 kHz, dB: -0.38, +0.03
From 40 Hz to 15 kHz, dB: -0.21, +0.03

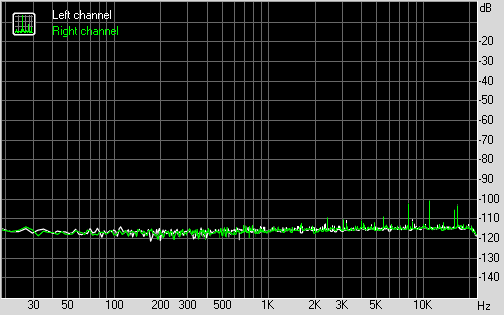

Noise level
RMS power, dB: -81.5, -81.5
RMS power (A-weighted), dB: -82.5, -82.4
Peak level, dB FS: -67.5, -68.1
DC offset, %: +0.3, +0.4
Dynamic range
Dynamic range, dB: +81.6, +81.4
Dynamic range (A-weighted), dB: +82.6, +82.4
DC offset, %: +0.35, +0.39

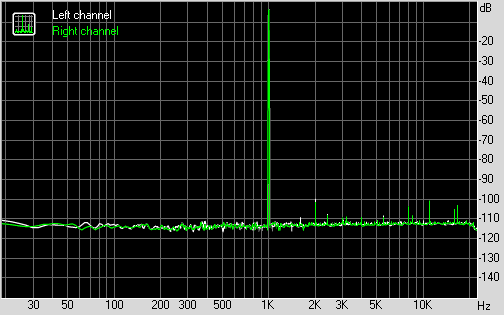

THD + Noise (at -3 dB FS)
THD, %: +0.0030, +0.0030
THD + Noise, %: +0.0179, +0.0179
THD + Noise (A-weighted), %: +0.0159, +0.0160
Intermodulation distortion
IMD + Noise, %: +0.0218, +0.0219
IMD + Noise (A-weighted), %: +0.0195, +0.0195

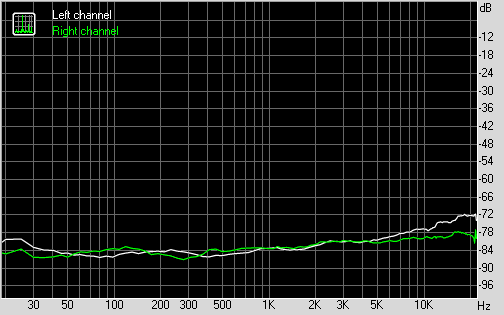

Stereo crosstalk
Crosstalk at 100 Hz, dB: -85, -82
Crosstalk at 1000 Hz, dB: -82, -82
Crosstalk at 10000 Hz, dB: -76, -79
IMD (swept tones)
IMD + Noise at 5000 Hz: 0.0230, 0.0234
IMD + Noise at 10000 Hz: 0.0230, 0.0237
IMD + Noise at 15000 Hz: 0.0242, 0.0240
Test Summary:
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.21 - Very good
Noise level, dB (A): -82.5 - Good
Dynamic range, dB (A): 82.5 - Good
THD, %: 0.0030 - Very good
THD + Noise, dB (A): -75.9 - Average
IMD + Noise, %: 0.022 - Good
Stereo crosstalk, dB: -83.4 - Very good
IMD at 10 kHz, %: 0.024 - Good
General performance: Good
