Page 3 - Tests and Usage Experience

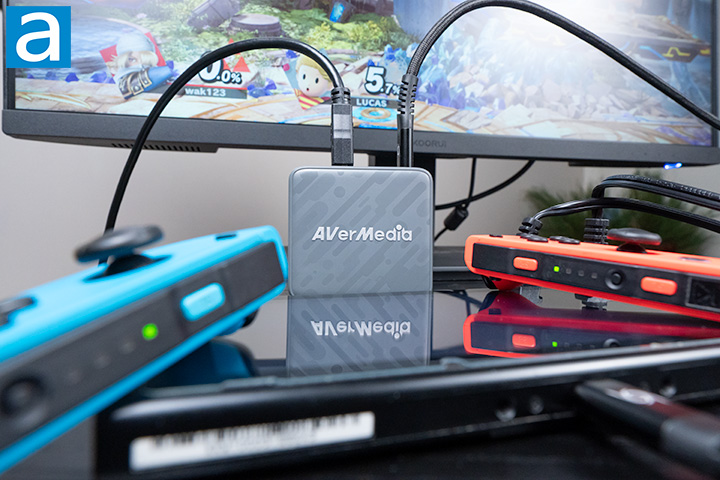

The first test I performed was to see how well the HDMI output would work with handheld gaming devices. I connected my Nintendo Switch to the Core Go using the provided USB Type-C cable, and then connected an HDMI cable from the Core Go to a monitor. Everything worked as expected.
Although I could not measure the frames per second, it did feel like I was at 60Hz from the gameplay, which is consistent with the specifications. For the second test, I used the Core Go as a laptop dock. I connected my laptop, monitor, and mouse. The mouse worked, the display was detected and ran at 4K, and the laptop was charging. The AVerMedia Core Go GC313 also worked flawlessly with an Apple iPhone 15 Pro for both fast charging and display output.

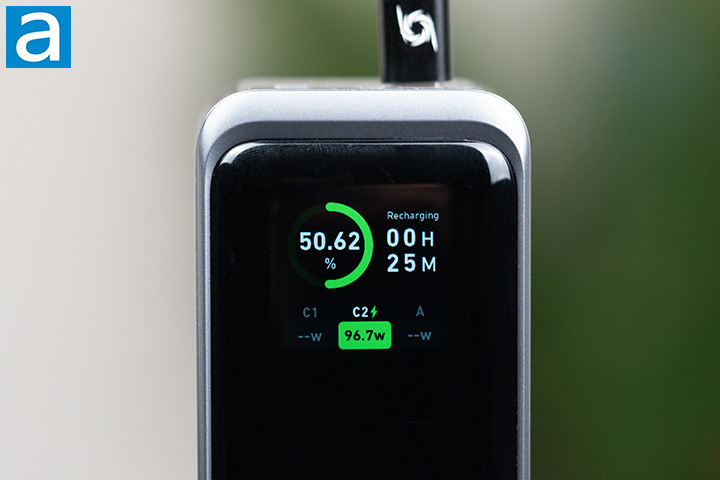

Moving on to the output power test, I used a power bank with the functionality to display how much power it was receiving. When it was the only USB Type-C device connected, it was able to receive 96.7W, which is very close to the specified 100W. Using a wall measurement device, the output read 107W, which means the Core Go GC313 is 90.4% efficient. Next, I connected my laptop to the other USB Type-C port. The reading I got from the power bank was 45.3W, which matched the rated 45W. In the final test, I connected my earbuds to the USB Type-A port, which was expected to not affect the output power received by the power bank. However, I got a reading of 45.6W, which is higher than when the earbuds were not connected. As I have mentioned before, my tests were not perfectly controlled, so I would say this result is within expectations. As for the output of the USB Type-A port, I was unable to test if it can output 5W, because I do not have the tools to do so.
I found the overall usage experience of the Core Go to be pleasant and straightforward. The charging functionalities work as expected. When using the HDMI output, the video produced on the display is as smooth as 60Hz will allow. There was no detectable latency or interruptions in the connection. Connecting peripherals to the USB Type-A port while using a laptop works perfectly. The size and weight also make it very compact and easy to travel with. All in all, it is simple and does the job it intends to do.
