Page 9 - Benchmark: PCMark 10
About PCMark 10
PCMark 10 is the latest version in our series of industry standard PC benchmarks. Updated for Windows 10 with new and improved workloads, PCMark 10 is also faster and easier to use.
PCMark 10 features a comprehensive set of tests that cover the wide variety of tasks performed in the modern workplace. With a range of performance tests, custom run options, Battery Life Profile, and new Storage benchmarks, PCMark 10 is the complete PC benchmark for the modern office.
From: Developer's Page
PCMark 10 is the latest version of the popular full system benchmark from UL. We used PCMark 10's Full System Drive Benchmark to test the performance of the Crucial P5 Plus 1TB. According to UL, the Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The following traces were used and defined as follows:
boo: Booting Windows 10
sacr: Adobe Acrobat - starting the application until usable
saft: Adobe After Effects - starting the application until usable
sill: Adobe Illustrator - starting the application until usable
spre: Adobe Premiere Pro - starting the application until usable
slig: Adobe Lightroom - starting the application until usable
sps: Adobe Photoshop - starting the application until usable
bf: Battlefield V - starting the game until the main menu
cod: Call of Duty Black Ops 4 - starting the game until the main menu
ow: Overwatch - starting the game until main menu
aft: Using Adobe After Effects
exc: Using Microsoft Excel
ill: Using Adobe Illustrator
ind: Using Adobe InDesign
pow: Using Microsoft PowerPoint
psh: Using Adobe Photoshop (heavy use)
psl: Using Adobe Photoshop (light use)
cp1: Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test)
cp2: Making a copy of the ISO files (read-write test)
cp3: Copying the ISO to a secondary drive (read test)
cps1: Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test)
cps2: Making a copy of the JPEG files (read-write test)
cps3: Copying the JPEG files to another drive (read test)

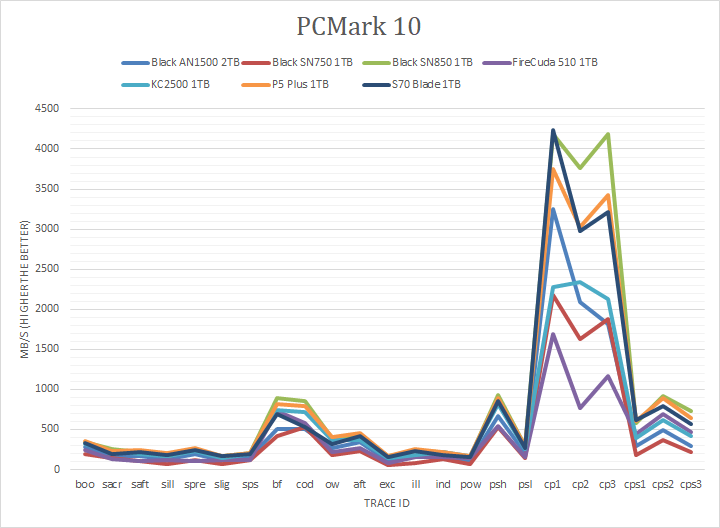

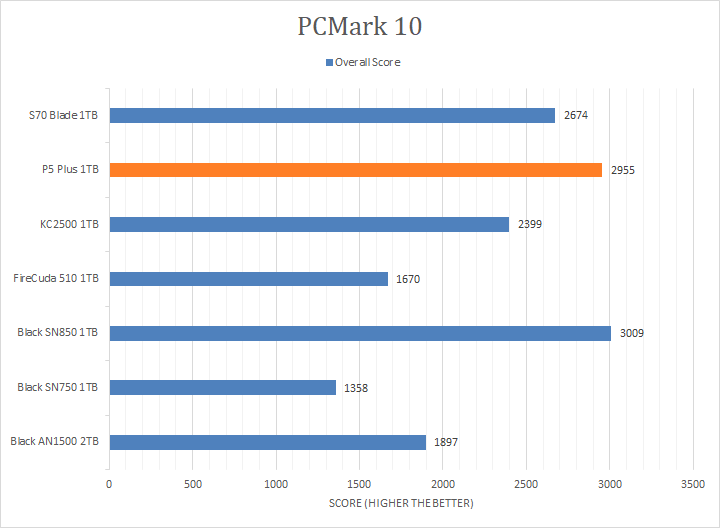

As it can be seen in our graphs above, the Crucial P5 Plus 1TB delivered excellent performance overall. It was simply not in the same league as other tested PCIe 3.0 NVMe drives; handily beating them by a wide margin. In fact, it was so fast, it was almost as fast as the WD_BLACK SN850 NVMe SSD 1TB and about 10% faster than the XPG Gammix S70 Blade 1TB. The final score tells a lot of the story, but the details are important as we look at the throughput of each of the 23 traces used. In these simulated real-life workloads, the P5 Plus was remarkably close, if not slightly faster, than the venerable SN850 in many of the traces. The difference is the SN850 peaked a lot higher like the cp1, cp2, and cp3 traces, hence the higher final score.
