Today's review unit of the Fractal Design Prisma AL-12 arrived from Fractal Design's offices in Texas, USA. Traveling via FedEx Ground, the box arrived in excellent condition without any real issues. It should be noted because of a lack of RGB headers on any of my computers, Fractal Design also sent over their Adjust R1 RGB controller, which we will also be looking at in this review. This too arrived from Texas with no real concerns, albeit in a separate white plastic envelope. Otherwise, I grabbed a pair of my scissors and cut the two packages open.

As you can see, both the Fractal Design Prisma AL-12 and Adjust R1 embrace the rainbow LEDs with its retail packaging. Both of them have a white background with a black overlay. The company and product name can be found on the lower edge with a nice rainbow trim underneath. In the middle of both boxes, you will find the product in question, with the addressable RGB controller and the Prisma AL-12 fans all lit up. Otherwise, at the back of both boxes are some features and specifications about the products inside. The Prisma AL-12 also has a flip open front panel so you can get a look at the fans inside.

Before we continue on, I have grabbed the specifications from the manufacturer's website for your viewing pleasure:

Prisma AL-12 Specifications
Size: 120 x 120 x 25 mm
Blade color: Semi-opaque white
Frame color: Black
LED type: Addressable RGB
Screw hole pattern: 105 x 105 mm
Power connector: 3-pin
Bearing: LLS
Number of blades: 7
Rotational speed: 1200 RPM
Noise level: 19.5 dB(A)
Airflow (CFM): 50.63 CFM
Airflow (m3/h): 86.02 m3/h
Static pressure: 1.27 mmH2O
Fan input power: 1.2W
Fan max input current: 0.10A
Fan input voltage: 12V
Fan starting voltage: 7V
LED input power: 1.50W
LED max input current: 0.30A
LED input voltage: 5V
MTBF: 100,000 hrs
Fan weight: 167 g
Package weight: 210g
Package weight 3-pack: 590g
Cable length: 500 mm
Cable type: Black sleeved

Adjust R1 Specifications
Compatibility: 5V Addressable RGB devices with standard 3-pin connector
Color modes:
- Preset color: Set all LEDs to red, green, blue, orange, cyan, yellow, purple, or white
- Color cycle: All LEDs change color in unison
- Custom color: Freeze color cycle mode on the exact color of your choice
- Long rainbow: Colors animate in a long sequence
- Short rainbow: Colors animate in a quick succession
Brightness settings: 5 levels
Pulse and motion effects:
- On (constant brightness)
- Slow breathing effect
- Fast breathing effect
- Slow single pulse sequence
- Fast single pulse sequence
- Slow marquee chasing effect
- Fast marquee chasing effect
- Off (LEDs disabled)
Maximum load: 2.6A
Unit dimensions (LxWxH), Excluding cable: 45 x 17 x 8 mm
Net weight: 14 g

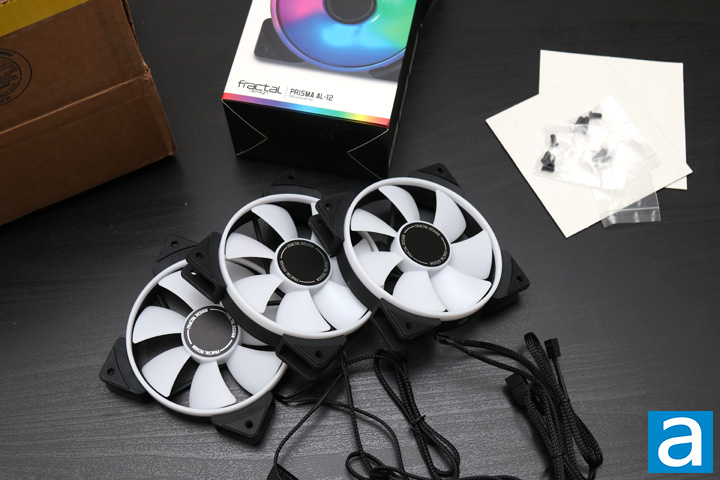

Out of the Fractal Design Prisma AL-12 box, you will get the three fans all stacked inside with all cables attached to the fans. Three separate bags of screws are also provided so you can mount the fans in your computer case. In between each fan, we have small squares of cardboard to protect the fan blades from each other. Just to note, Fractal Design sent us the three pack version of their 120mm voltage-controlled fans, but the Prisma series of fans include both 120mm and 140mm variants, in three- and four-pin connections for voltage and PWM control, respectively. All of these variants are available in single and triple packs. Otherwise, there is not much else to talk about, so let us take a closer look at the fans themselves.
