Page 5 - Benchmark: Crystal Disk Mark 6.0

About Crystal Disk Mark

- Measure sequential reads/writes speed
- Measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed
- Select test data (Random, 0Fill, 1Fill)

From: Developer's Page

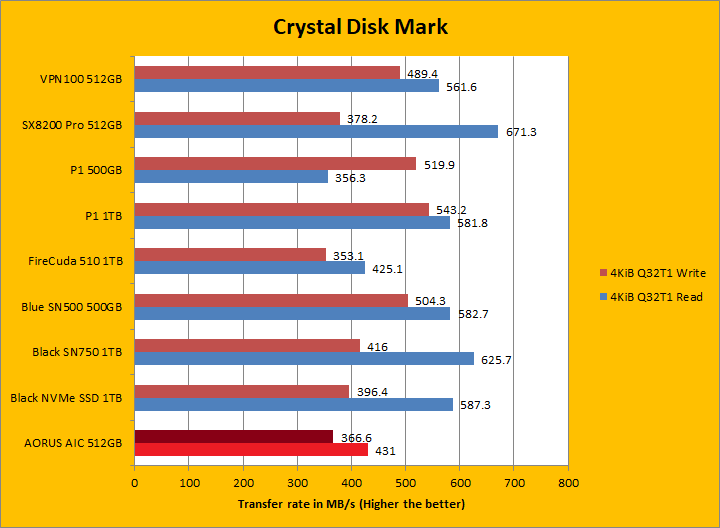

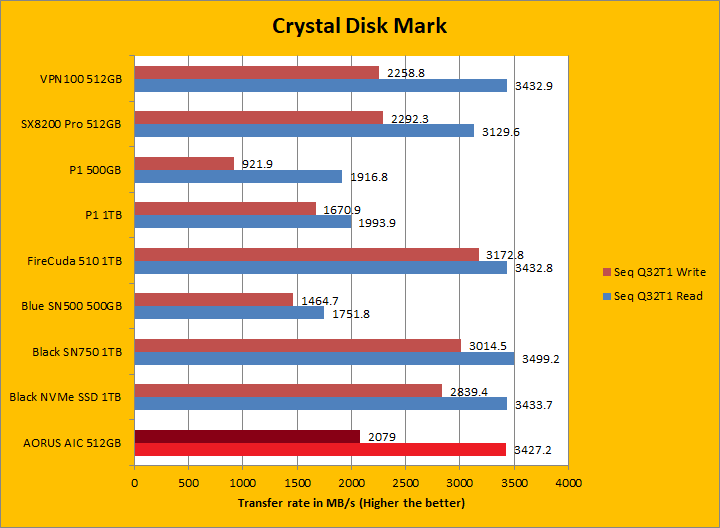

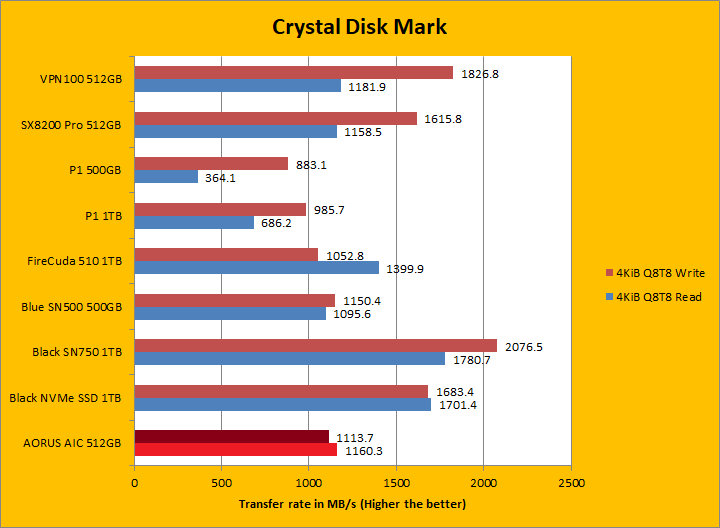

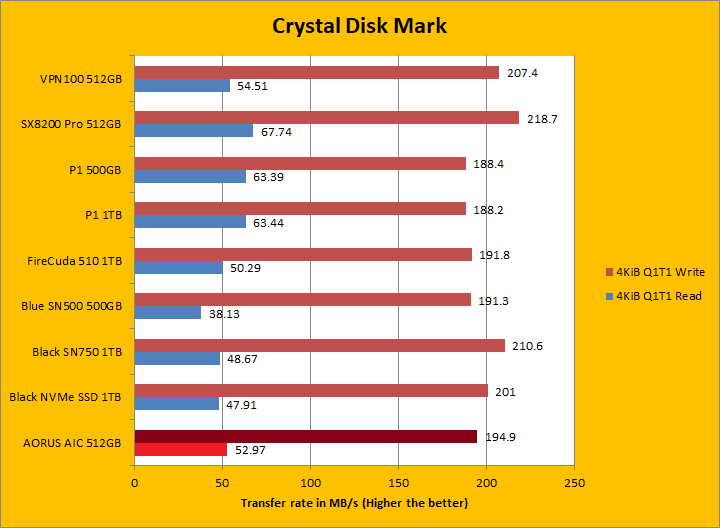

Crystal Disk Mark 6.0 is in the spotlight. Just a bit of background information; higher capacity drives tend to perform a little better in these tests. The ability of a controller and flash memory to deliver high IOPS will provide huge benefits to the score as well. The Gigabyte AORUS RGB AIC NVMe SSD 512GB is rated at up to 360,000 IOPS read and 510,000 IOPS write. Looking at the read and write results of all four sections, the AORUS RGB AIC NVMe SSD 512GB had one of the highest sequential read speed results here at APH Networks. Otherwise, its sequential Q32T1 write and 4KiB Q8T8 read and write was quite a bit behind the SX8200 Pro and Viper VPN100. Its 4KiB Q1T1 read and write came out to be quite comparable against the duo though. I will let you make your own comparisons in our list of SSDs in the graphs above.
