Page 4 - Benchmark: AIDA64 FPU
About AIDA64 Engineer
AIDA64 Engineer has a hardware detection engine unrivaled in its class. It provides detailed information about installed software and offers diagnostic functions and support for overclocking. As it is monitoring sensors in real time, it can gather accurate voltage, temperature and fan speed readings, while its diagnostic functions help detect and prevent hardware issues. It also offers a couple of benchmarks for measuring the performance of individual hardware components or the whole system. It is compatible with all 32-bit and 64-bit Windows editions, including Windows 11 and Windows Server 2022.
From: Developer's Page

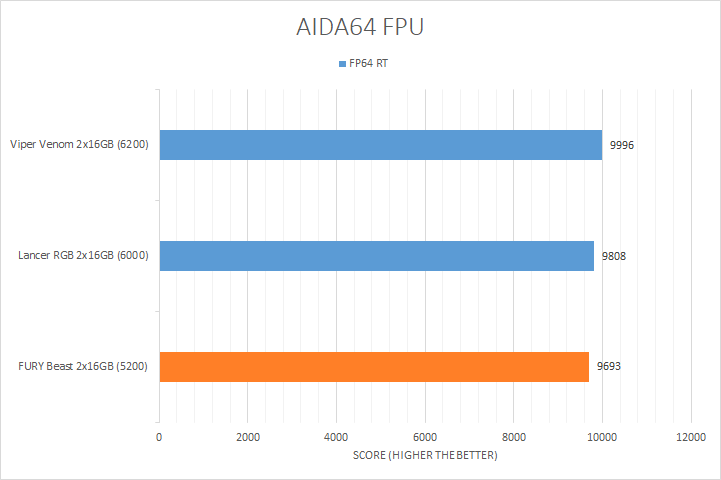

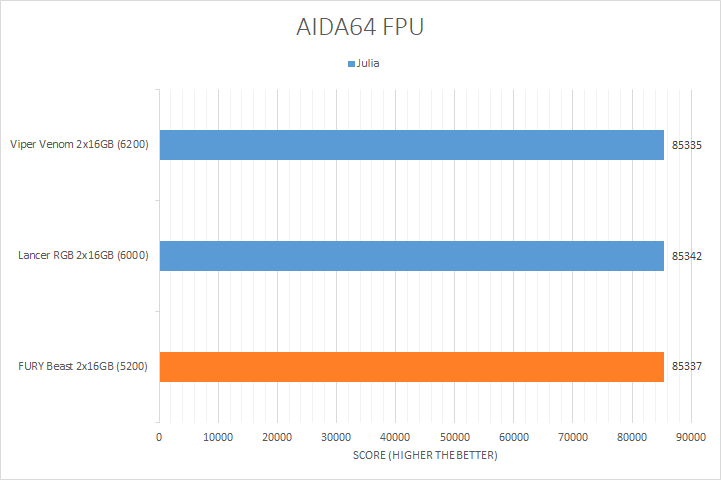

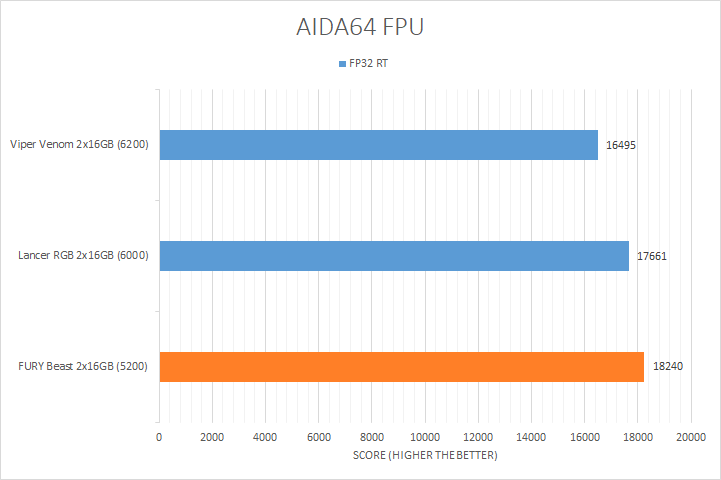

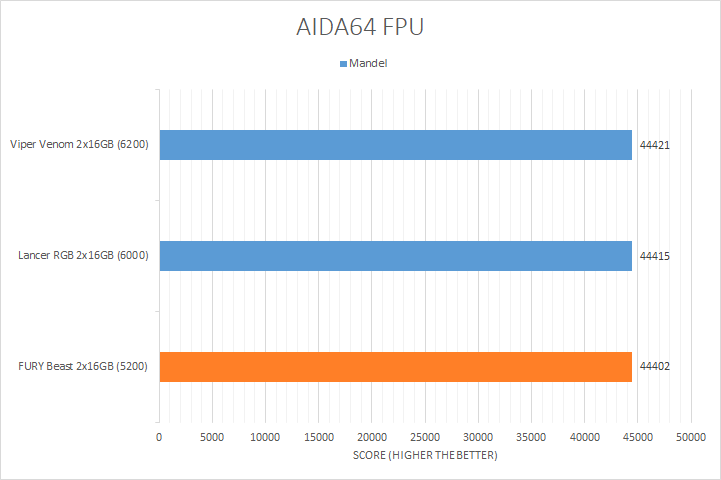

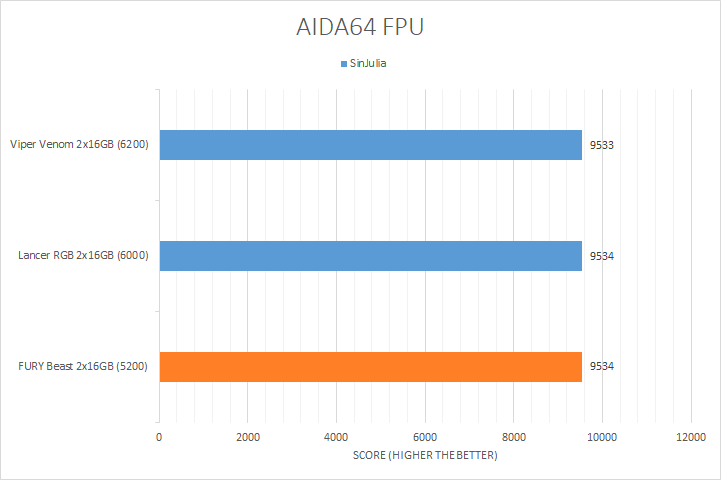

Usually, the second set of AIDA64 tests, the FPU ones, are the most uneventful results, because they barely provide much difference between memory kits and the results are more dependent on the processor. This is once again mostly true, as the first three tests reflect this train of thought. In fact, in the SinJulia tests, you can see there was only a single value of difference between all three of our tested memory kits. However, it changes with the floating point 32 and 64 ray tracing tests, as the Kingston FURY Beast DDR5-5200 2x16GB provided the best FP32 RT results and the least favorable FP64 RT numbers. It is not exactly clear why we have this inverse relationship here, but the numbers still are generally within the ballpark range of what you might expect from DDR5 memory.
