Kingston FURY Renegade 1TB Review (Page 4 of 10)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

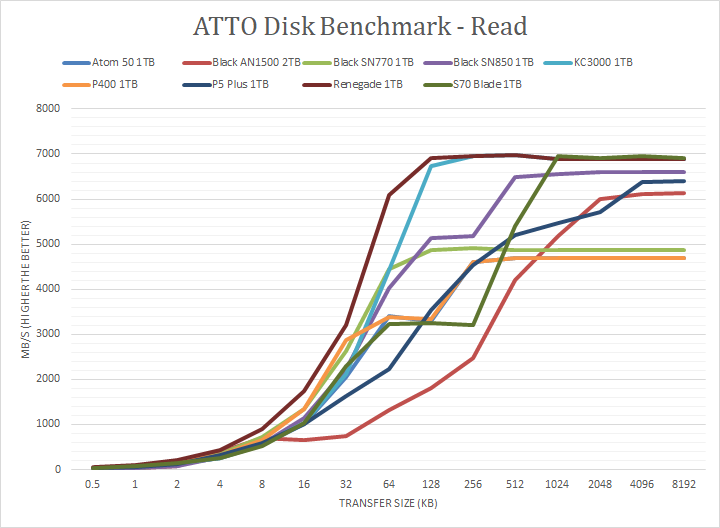

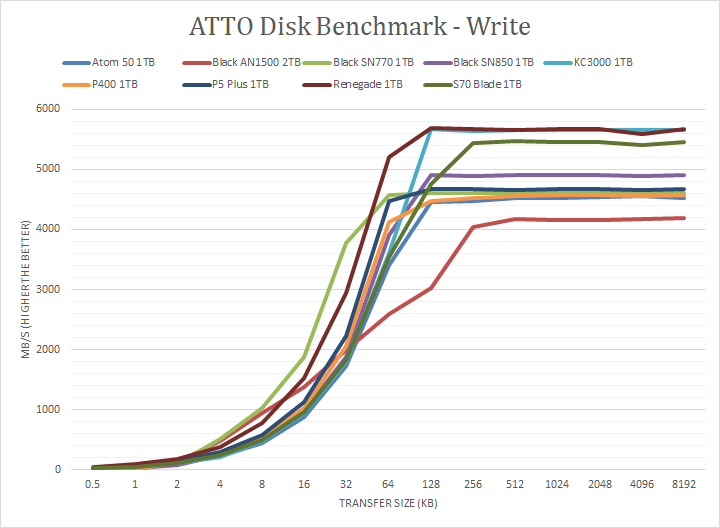

Following up next are our usual ATTO read and write tests. ATTO is an often-quoted benchmark because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I have grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here. As far as the Phison PS5018-E18 controller on the FURY Renegade is concerned, well, here are our results. The Kingston FURY Renegade 1TB peaked at 6970MB/s read and 5690MB/s write. Under the read curve, it had the highest ramp up speed, and was marginally behind the XPG Gammix S70 Blade 1TB in peak speed. The FURY Renegade 1TB briefly dipped below the Western Digital WD_BLACK SN770 NVMe SSD 1TB in write speed between 4K and and 32K, but was otherwise the fastest drive in the remainder of the file transfer sizes. Compared to the KC3000 1TB, the FURY Renegade 1TB also had a much faster ramp up speed up to 64K for both read and write, showing the strength of the revised firmware. That said, the peak read speed was roughly the same, as this is hardware-limited. Overall, the Kingston FURY Renegade 1TB's performance is excellent, thanks to the fast PCIe 4.0 interface and improved firmware.
