Page 6 - Benchmark: HD Tach 3.0.1.0
About HD Tach 3.0.1.0
HD Tach is a low level hardware benchmark for random access read/write storage devices such as hard drives, removable drives (ZIP/JAZZ), flash devices, and RAID arrays. HD Tach uses custom device drivers and other low level Windows interfaces to bypass as many layers of software as possible and get as close to the physical performance of the device possible.
From: Developer's Page

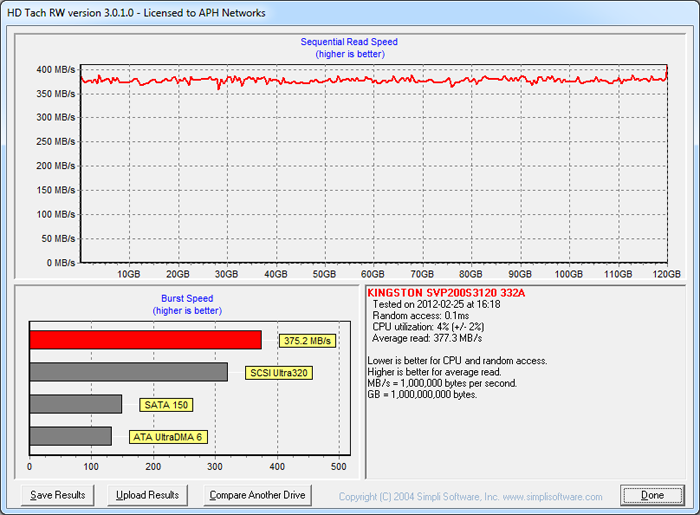

After giving the Kingston SSDNow V+200 120GB a clean format and ensuring alignment and everything is correct, I fired it up for some testing in HD Tach. While HD Tach is more of a 'drag race' than a clear indication of real life performance, it is an excellent storage performance reference, and has been our favorite benchmark long before drives even cracked the 50MB/s mark. With an average read speed of 377.3MB/s according to HD Tach in single disk configuration, it is about what we expect for a 25nm asynchronous flash memory based SSD. Traditionally, if you put two hard drives in RAID 0, it will give huge increases in this benchmark. Surprisingly, pairing two Kingston SSDNow V+200 120GB solid state drives in RAID 0 did little to increase the HD Tach score, as shown in our second screenshot above.
