SanDisk Ultra Plus 256GB Review (Page 4 of 10)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

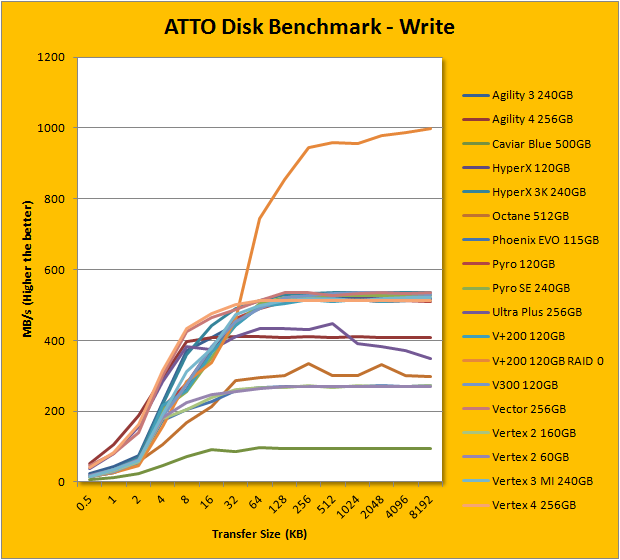

Following up next is our usual ATTO read and write tests. ATTO is an often quoted benchmark, because it is easy to use and accurate. For the most part, it is a favorite among reviewers, and I've grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so SandForce based SSDs will perform very well here; as far as the Marvell 88SS9175 is concerned -- well, here are our results. As manufacturer peak read and write performance ratings are usually done in ATTO, whether a drive lives up to its marketing claims or not can be validated by this program. SanDisk claims the Ultra Plus 256GB's maximum read is 530MB/s, whereas its maximum write is pinned at 445MB/s. According to our tests, these figures seem to be spot on. It peaked at 532.6MB/s read and 447.3MB/s write in the curves demonstrated in our charts above. However, it drops off a bit in larger file write sizes, dipping to 460.5MB/s and 347.8MB/s in 8MB blocks. Either way, these results are well within expectations for a modern SATA 6Gb/s solid state drive.
