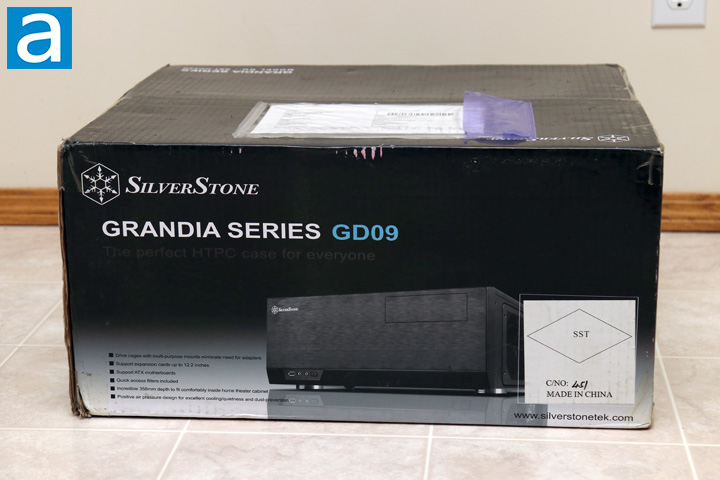

Today's review unit of the SilverStone Grandia GD09-C arrived from SilverStone's offices in Chino, California. Traveling with UPS and their Standard ground service, this box arrived in generally good condition. As you can tell from the photo, the retail container doubled as the shipping container. The retail container is a bit fancier than what I am accustomed to with colored printing and many images for a fancy look.
Before we continue on, I have grabbed the specifications from the manufacturer's website for your perusal:
Specifications
Model No.: Type-C version SST-GD09B-C (black, Type-C port)
Material: Plastic front panel with faux aluminum finish, 0.8mm steel body
Motherboard: SSI-CEB, ATX, Micro-ATX
Drive bay: External - 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2); Internal - 3.5" x 2 (one compatible with 2.5"), 2.5" x1
Cooling system: Rear - 80mm x 2; Side - Right:120mm x 2 (120mm x 1 fan included), Left:120mm x 1 or 80mm x 1; Top - Expansion card vent
Expansion slot: 7+1
Front I/O port: SST-GD09B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
Power supply: Standard PS2(ATX)
Expansion card: Compatible up to 12.2" (309mm) long, width restriction-5.25" (133mm)
Limitation of CPU cooler: 138mm*
Limitation of PSU: 170mm
Net weight: 4.2kg
Dimension: 440mm (W) x 170mm (H) x 358mm (D), 26.8 liters, 17.32" (W) x 6.69" (H) x 14.09" (D), 26.8 liters
Extra: Support Kensington lock

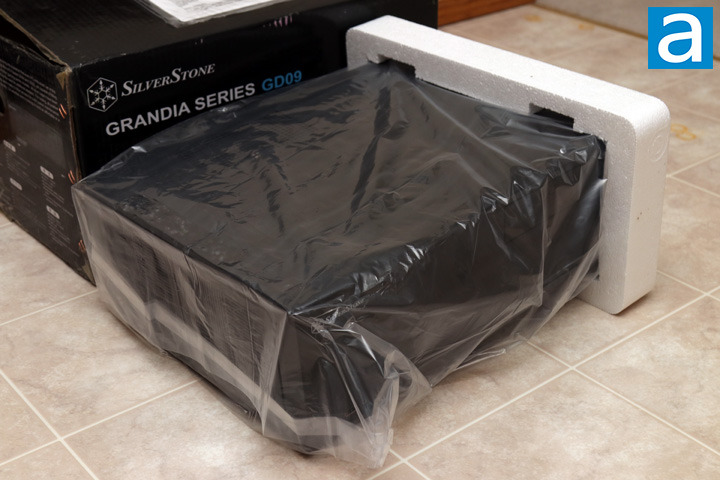

As with most cases, the SilverStone Grandia GD09-C is packaged in a clear plastic bag to prevent surface marks and scratches on the panels. The whole enclosure is held in two white Styrofoam brackets to prevent impact damage from appearing on the physical case itself, although this is pretty standard foam used here. Otherwise, a small bag with some documentation is included inside the Grandia GD09-C. There is not much else to speak of, so let us move on to the physical look of the case.
