XPG Gammix S70 Blade 1TB Review (Page 4 of 10)

Page 4 - Benchmark: ATTO Disk Benchmark

About ATTO Disk Benchmark

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

From: Developer's Page

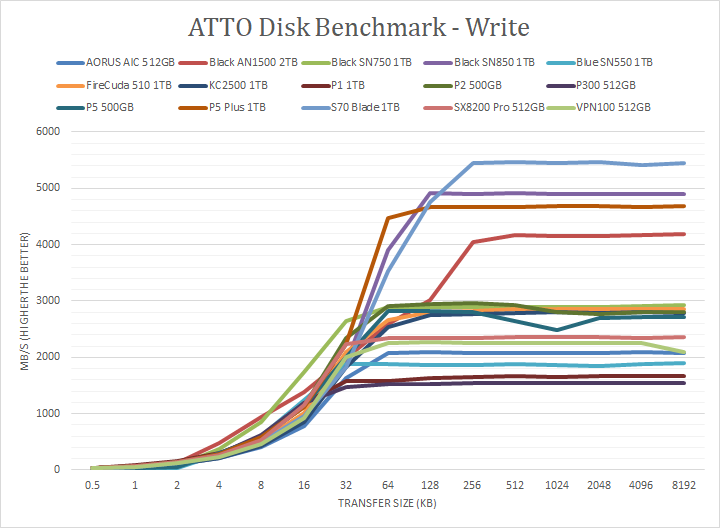

Following up next are our usual ATTO read and write tests. ATTO is an often-quoted benchmark because it is easy to use and accurate. For the most part, it is a favorite among reviewers and I have grown to embrace it as much as the next for the last little while. ATTO uses easily compressible data, so compression-heavy controllers will perform very well here. As far as the InnoGrit Rainier controller on the Gammix S70 Blade is concerned, well, here are our results. It peaked at 6950MB/s read and 5470MB/s write. Under the curve, it was interesting because the S70 was faster than the SN850 at very small files up to 2K and larger file read/writes. Particularly, above 256K for write and 1024K for read. Anything in between and the SN850 is faster. At the lower end of the write test though, the Crucial P5 Plus 1TB was actually faster than both the Gammix S70 Blade and SN850. Overall, the XPG Gammix S70 Blade 1TB's performance was excellent, especially with its insane peak speeds afforded by the PCIe 4.0 interface.
