Page 4 - Test System; Benchmark: 3DMark06

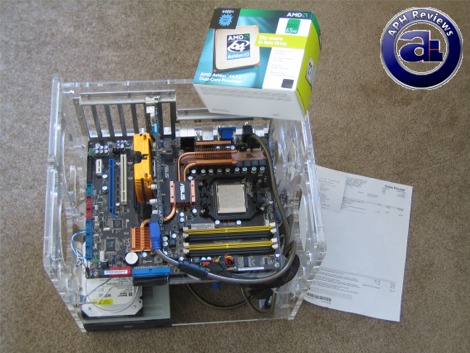

The case of the Asus M3N-HT Deluxe and the overpriced Athlon 64 X2 4400+ Brisbane.

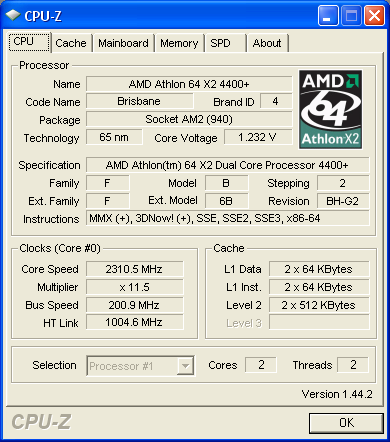

CPU: AMD Athlon 64 X2 4400+ 2.3GHz 2x512K L2 Brisbane
Chassis: Danger Den Torture Rack (1x Thermaltake 120mm LED Fan)
Power: Tagan TurboJet 1100W
Video: Gigabyte GeForce 8800GT TurboForce 512MB
Optical Drive: Liteon 16X DVD-ROM
Hard Drive: Western Digital Caviar 7200RPM 80GB 8MB Cache
Operating System: Microsoft Windows XP Professional SP2
Testing Hardware
- Asus M3N-HT Deluxe/Mempipe, using OCZ Reaper HPC PC2-8500 2x1GB
We only have one AMD motherboard on hand (Well, it's the only one we have received for review, everything else were on the Intel platform haha), so there will be no comparison benchmarks.

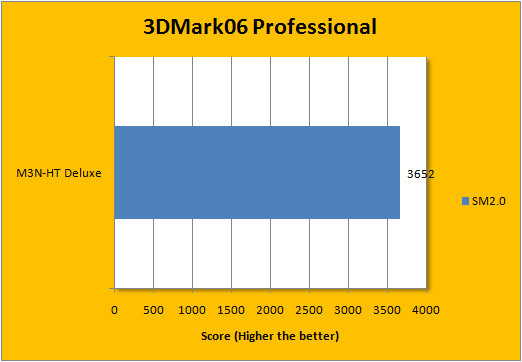

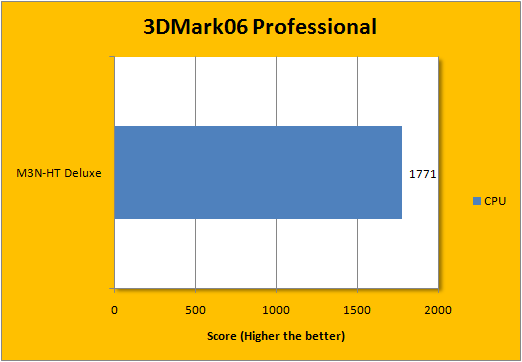

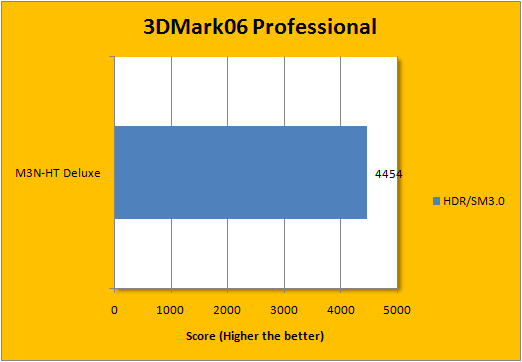

About 3DMark06
3DMark®06 is the worldwide standard in advanced 3D game performance benchmarking. A fundamental tool for every company in the PC industry as well as PC users and gamers, 3DMark06 uses advanced real-time 3D game workloads to measure PC performance using a suite of DirectX 9 3D graphics tests, CPU tests, and 3D feature tests. 3DMark06 tests include all new HDR/SM3.0 graphics tests, SM2.0 graphics tests, AI and physics driven single and multiple cores or processor CPU tests and a collection of comprehensive feature tests to reliably measure next generation gaming performance today. Futuremark's exclusive Online ResultBrowser web service tracks and compares 3DMark06 scores.
Key 3DMark06 Advanced and Professional Features
* DirectX® 9 3D game performance benchmark
* Includes separate graphics card and CPU tests
* Produces workloads that simulate next generation 3D gaming requirements
* Advanced 3D game engine supports HDR Rendering with SM3.0 Shaders, in addition to SM2.0 Shaders
* Includes two HDR/SM3.0 game tests and two SM2.0 game tests
* CPU performance testing via AI and physics workloads for both single core systems and multi-threaded, multi-core and multiple processor environments
* 3D graphics feature tests include Fill Rate, Pixel Shader, Vertex Shader, SM3.0 tests, and Batch Size tests
From: Developer's Page
As motherboards are generally within a few percent performance of each other, I don't really have much to comment -- but coming from my ownership of over half a dozen Intel Core 2 CPUs in the past 1.5 years, I can only say that the AMD CPU is seriously weak haha. But we aren't reviewing the CPU here.
